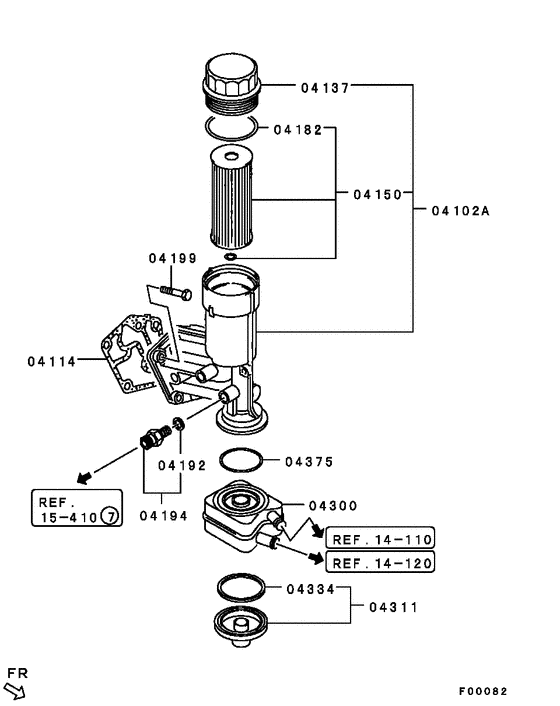

Oil pump & oil filter (ALL (OIL FILTER & FILTER BRACKET)) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (6PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS/DPF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04102A
|
04102A
MN980122
BRACKET ASSY,OIL FILTER
|
MN980122 |
— | ||
|
04114
|
04114
MN980128
GASKET,OIL FILTER BRACKET
|
MN980128 |
— | ||
|
04137
|
04137
MN980123
COVER,OIL FILTER
|
MN980123 |
— | ||
|
04150
|
04150
MN980125
Oil Filter
|
MN980125 |
— | ||
|
04182
|
04182
MN980124
O-RING,OIL FILTER INR
|
MN980124 |
— | ||
|
04192
|
04192
MN980126
GASKET,OIL FILTER
|
MN980126 |
— | ||
|
04194
|
04194
MN980127
JOINT,OIL FILTER
|
MN980127 |
— | ||
|
04199
|
04199
MN980129
BOLT,OIL FILTER
|
MN980129 |
— | ||
|
04300
|
04300
MN980131
OIL COOLER,ENG
|
MN980131 |
— | ||
|
04311
|
04311
MN980133
COVER,ENG OIL COOLER
|
MN980133 |
— | ||
|
04334
|
04334
MN980132
GASKET,ENG OIL COOLER COVER
|
MN980132 |
— | ||
|
04375
|
04375
MN980130
O-RING,ENG OIL COOLER
|
MN980130 |
— | ||
|
