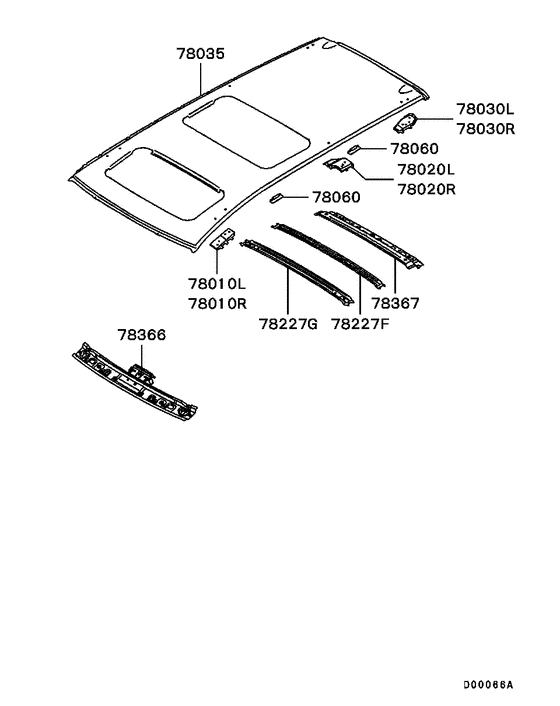

Roof & lid (ROOF PANEL..W/SUNROOF) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (6PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010L
|
78010L
5290A709 REINFORCEMENT, ROOF RACK, FR LH |
5290A709 |
US $11.99 |
||
|
78010R
|
78010R
5290A710 REINFORCEMENT, ROOF RACK, FR RH |
5290A710 |
US $11.99 |
||
|
78020L
|
78020L
MN161517 REINFORCEMENT, ROOF RACK, CTR LH |
MN161517 |
US $14.21 |
||
|
78020R
|
78020R
MN161518 REINFORCEMENT, ROOF RACK, CTR RH |
MN161518 |
US $14.21 |
||
|
78030L
|
78030L
5290A711 REINFORCEMENT, ROOF RACK, RR LH |
5290A711 |
US $14.21 |
||
|
78030R
|
78030R
5290A712 REINFORCEMENT, ROOF RACK, RR RH |
5290A712 |
US $14.21 |
||
|
78035
|
78035
5290A715 PANEL, ROOF |
5290A715 |
US $1,033.76 |
||
|
78035
|
78035
MN150725 PANEL, ROOF |
MN150725 |
US $1,033.76 |
||
|
78035
|
78035
MN150726 PANEL, ROOF |
MN150726 |
US $1,033.76 |
||
|
78060
|
78060
MN161481 BRACKET, ROOF RACK |
MN161481 |
US $4.29 |
||
|
78227F
|
78227F
MN150737 BOW, ROOF |
MN150737 |
US $59.20 |
||
|
78227G
|
78227G
MN150736 BOW, ROOF |
MN150736 |
US $67.34 |
||
|
78366
|
78366
MN150729 RAIL, ROOF, FR |
MN150729 |
US $76.22 |
||
|
78366
|
78366
MN150730 RAIL, ROOF, FR |
MN150730 |
US $76.22 |
||
|
78367
|
78367
MN150731 RAIL, ROOF, RR |
MN150731 |
US $152.44 |
