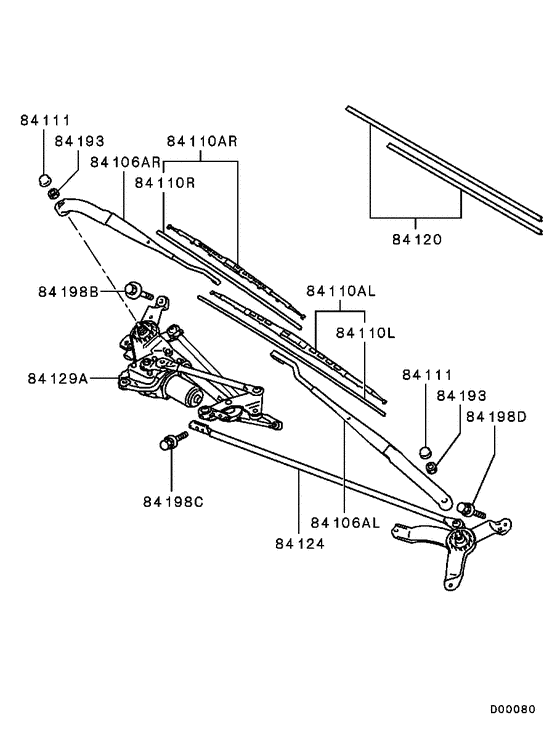

Windshield wiper & washer (WIPER) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (6PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS/DPF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106AL
|
84106AL
8250A269
ARM ASSY,WINDSHIELD WIPER,LH
|
8250A269 |
— | ||
|
84106AL
|
84106AL
8250A351
ARM ASSY,WINDSHIELD WIPER,LH
|
8250A351 |
— | ||
|
84106AR
|
84106AR
8250A270
ARM ASSY,WINDSHIELD WIPER,RH
|
8250A270 |
— | ||
|
84106AR
|
84106AR
8250A352
ARM ASSY,WINDSHIELD WIPER,RH
|
8250A352 |
— | ||
|
84110AL
|
84110AL
8250A273
BLADE ASSY,WINDSHIELD WIPER,LH
|
8250A273 |
— | ||
|
84110AL
|
84110AL
8250A355
BLADE ASSY,WINDSHIELD WIPER,LH
|
8250A355 |
— | ||
|
84110AR
|
84110AR
8250A274
BLADE ASSY,WINDSHIELD WIPER,RH
|
8250A274 |
— | ||
|
84110AR
|
84110AR
8250A356
BLADE ASSY,WINDSHIELD WIPER,RH
|
8250A356 |
— | ||
|
84110L
|
84110L
8250A277 BLADE, WINDSHIELD WIPER |
8250A277 |
US $14.65 |
||
|
84110R
|
84110R
8250A278
BLADE,WINDSHIELD WIPER,LH
|
8250A278 |
— | ||
|
84111
|
84111
MR989858 CAP, WINDSHIELD WIPER LINK |
MR989858 |
US $3.26 |
||
|
84120
|
84120
8250A296
BLADE SET,WINDSHIELD WIPER
|
8250A296 |
— | ||
|
84120
|
84120
MN161331 BLADE SET, WINDSHIELD WIPER |
MN161331 |
from US $25.16 |
||
|
84124
|
84124
8251A042
LINK,WINDSHIELD WIPER
|
8251A042 |
— | ||
|
84129A
|
84129A
8250A302
MOTOR ASSY,WINDSHIELD WIPER
|
8250A302 |
— | ||
|
84129A
|
84129A
8250A350
MOTOR ASSY,WINDSHIELD WIPER
|
8250A350 |
— | ||
|
84193
|
84193
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
84198B
|
84198B
MU000870 BOLT, WINDSHIELD WIPERWasher assembled,6x30 |
MU000870 |
from US $1.58 |
||
|
84198C
|
84198C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
84198D
|
84198D
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $1.07 |
