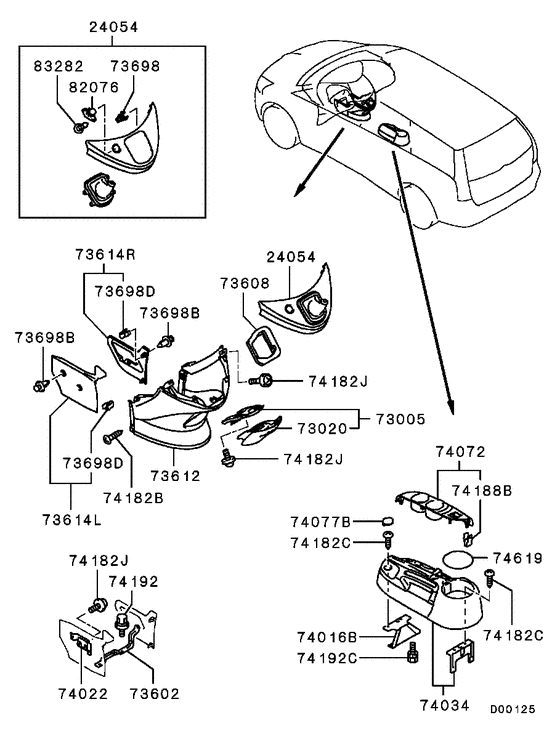

Console (LHD) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24054
|
24054
8015A028XA
PANEL,GEARSHIFT LEVER
|
8015A028XA |
— | ||
|
24054
|
24054
8015A028XB
PANEL,GEARSHIFT LEVER
|
8015A028XB |
— | ||
|
73005
|
73005
8040A001HA
ASHTRAY,INSTRUMENT PANEL
|
8040A001HA |
— | ||
|
73020
|
73020
8040A003HA
CASE,INSTRUMENT PANEL ASHTRAY
|
8040A003HA |
— | ||
|
73602
|
73602
MR962230 BRACKET, INSTRUMENT PANEL CONSOLE |
MR962230 |
US $20.72 |
||
|
73608
|
73608
8050A037
PAD,INSTRUMENT PANEL CTR CONSOLE
|
8050A037 |
— | ||
|
73612
|
73612
MN157311HA
CONSOLE,INSTRUMENT PANEL,CTR
|
MN157311HA |
— | ||
|
73614L
|
73614L
8011A313HA
COVER,INSTRUMENT PANEL CONSOLE SIDE,LH
|
8011A313HA |
— | ||
|
73614R
|
73614R
MN166600HA
COVER,INSTRUMENT PANEL CONSOLE SIDE,RH
|
MN166600HA |
— | ||
|
73698
|
73698
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
73698B
|
73698B
MR647319 CLIP, SCUFF PLATE |
MR647319 |
US $1.63 |
||
|
73698D
|
73698D
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
74016B
|
74016B
MN151927
BRACKET,FLOOR CONSOLE
|
MN151927 |
— | ||
|
74022
|
74022
MN151921
BRACKET,FLOOR CONSOLE,FR
|
MN151921 |
— | ||
|
74034
|
74034
MN151922XA
CONSOLE,FLOOR
|
MN151922XA |
— | ||
|
74072
|
74072
MN151767XA
PANEL,FLOOR CONSOLE
|
MN151767XA |
— | ||
|
74077B
|
74077B
MN179223XA
PLUG,FLOOR CONSOLE
|
MN179223XA |
— | ||
|
74182B
|
74182B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
74182C
|
74182C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
74182J
|
74182J
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
74188B
|
74188B
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
74192
|
74192
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
74192C
|
74192C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
74192C
|
74192C
MF240650 BOLT, P/S OIL PUMPWasher assembled,8x14 |
MF240650 |
US $2.22 |
||
|
74619
|
74619
8011A317XA
MAT,FLOOR CONSOLE BOX
|
8011A317XA |
— | ||
|
82076
|
82076
MR962274 SWITCH, HAZARD WARNING LAMP |
MR962274 |
US $42.18 |
||
|
83282
|
83282
MF456457 SCREW, FR DOOR ARMRESTTapping,4x12 |
MF456457 |
US $1.63 |
