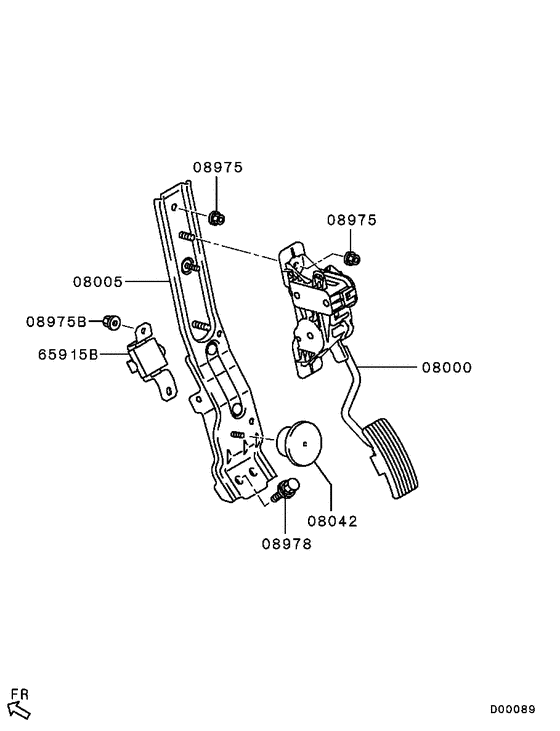

Engine control (LHD) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08000
|
08000
MR955388
PEDAL,ACCEL
|
MR955388 |
— | ||
|
08005
|
08005
1600A043
BRACKET,ACCEL PEDAL
|
1600A043 |
— | ||
|
08042
|
08042
MR527100 STOPPER, ACCEL PEDAL ARM |
MR527100 |
from US $4.93 |
||
|
08975
|
08975
MU000310 NUT, AIR BAG CONTROL EQUIP8 |
MU000310 |
US $1.37 |
||
|
08975B
|
08975B
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
08978
|
08978
MS240127 BOLT, STEERING COLUMNWasher assembled,8x30 |
MS240127 |
from US $0.92 |
||
|
65915B
|
65915B
1600A037
DAMPER,ACCEL PEDAL
|
1600A037 |
— |
