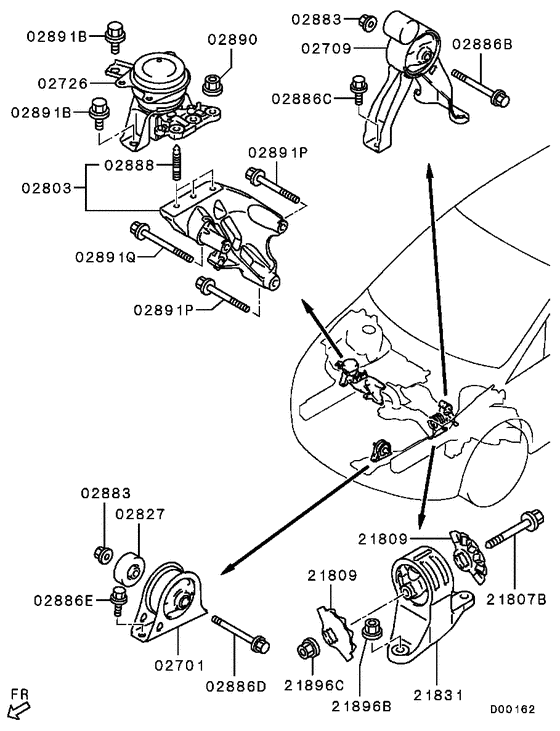

Engine mounting & support (ALL) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701
|
02701
MR594376
BRACKET,ENG ROLL STOPPER
|
MR594376 |
— | ||
|
02709
|
02709
MR594378
BRACKET,ENG RR ROLL STOPPER
|
MR594378 |
— | ||
|
02726
|
02726
1093A001
INSULATOR,ENG MOUNTING
|
1093A001 |
— | ||
|
02803
|
02803
1091A049
BRACKET,CYLINDER BLOCK ENG FR MOUNTING
|
1091A049 |
— | ||
|
02827
|
02827
1092A052
DAMPER,ENG MOUNTING BRACKET DYNAMIC
|
1092A052 |
— | ||
|
02883
|
02883
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883
|
02883
MB288462V
nut
|
MB288462V |
— | ||
|
02883
|
02883
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
02886B
|
02886B
MF140478 BOLT, ALTERNATORFlange,10x100 |
MF140478 |
US $4.29 |
||
|
02886C
|
02886C
MF911641 BOLT, ENG SUPPORT RODFlange,10x25 |
MF911641 |
from US $1.11 |
||
|
02886C
|
02886C
MU000343 BOLT, FR SUSP STABILIZERFlange,10x25 |
MU000343 |
from US $1.48 |
||
|
02886D
|
02886D
MF140279 BOLT,M/T EXTENSION HOUSING |
MF140279 |
US $3.40 |
||
|
02886E
|
02886E
MF140460 BOLT, FUEL TANK SUPPORTFlange,10x25 |
MF140460 |
from US $1.37 |
||
|
02888
|
02888
1095A007
STUD,ENG MOUNTING
|
1095A007 |
— | ||
|
02890
|
02890
MU000641 NUT, FR SUSP STRUTFlange,4t,10 |
MU000641 |
US $2.60 |
||
|
02891B
|
02891B
MF911962 BOLT, ENG MOUNTINGFlange,12x30 |
MF911962 |
US $2.07 |
||
|
02891B
|
02891B
MU000604 BOLT, INDEPENDENT RR SUSP ARMFlange,12x30 |
MU000604 |
US $3.26 |
||
|
02891P
|
02891P
1091A099
BOLT,ENG MOUNTING
|
1091A099 |
— | ||
|
02891Q
|
02891Q
1091A098
BOLT,ENG MOUNTING
|
1091A098 |
— | ||
|
21807B
|
21807B
MU140030 BOLT, ENG SUPPORT ROD12x113 |
MU140030 |
US $6.96 |
||
|
21809
|
21809
MN103099 STOPPER, T/M MOUNTING |
MN103099 |
US $7.11 |
||
|
21831
|
21831
2910A004
BRACKET,T/M MOUNTING BODY SIDE
|
2910A004 |
— | ||
|
21896B
|
21896B
MB242260 NUT, FR AXLE CROSSMEMBERSelf locking,12 |
MB242260 |
from US $3.56 |
||
|
21896C
|
21896C
MF434106 NUT, ENG RR MOUNTINGFlange,12 |
MF434106 |
from US $1.17 |
||
