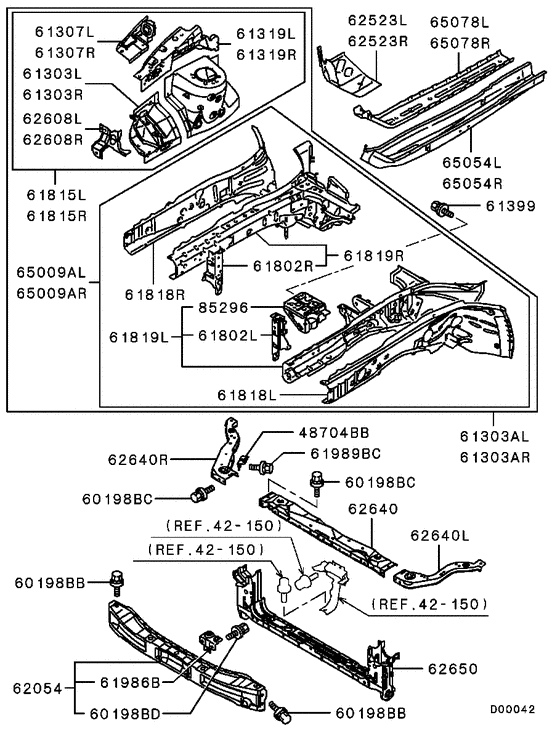

Front end panel (ALL) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48704BB
|
48704BB
5256A115
BRACKET,P/S OIL RESERVOIR
|
5256A115 |
— | ||
|
60198BB
|
60198BB
MS240295 BOLT, RR SUSP STABILIZERWasher assembled,10x25 |
MS240295 |
from US $1.37 |
||
|
60198BC
|
60198BC
MU242003 BOLT, WINDSHIELD WIPER6x16 |
MU242003 |
from US $1.83 |
||
|
60198BD
|
60198BD
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
61303AL
|
61303AL
5220B189
FENDER SHIELD ASSY,FR LH
|
5220B189 |
— | ||
|
61303AR
|
61303AR
5220B190
FENDER SHIELD ASSY,FR RH
|
5220B190 |
— | ||
|
61303L
|
61303L
5220B187
FENDER SHIELD,FR LH
|
5220B187 |
— | ||
|
61303R
|
61303R
5220B188 FENDER SHIELD, FR RH |
5220B188 |
US $71.78 |
||
|
61307L
|
61307L
MN150777 FRAME, FENDER SHIELD, UPR OTR LH |
MN150777 |
US $35.52 |
||
|
61307R
|
61307R
MN150778 FRAME, FENDER SHIELD, UPR OTR RH |
MN150778 |
US $35.52 |
||
|
61319L
|
61319L
MN150775 FRAME, FENDER SHIELD, UPR INR LH |
MN150775 |
US $60.68 |
||
|
61319R
|
61319R
5220B154
FRAME,FENDER SHIELD,UPR INR RH
|
5220B154 |
— | ||
|
61399
|
61399
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
61802L
|
61802L
MN150789 BRACE, FR SIDEMEMBER TO CROSSMEMBER, LH |
MN150789 |
from US $20.20 |
||
|
61802R
|
61802R
MN150790 BRACE, FR SIDEMEMBER TO CROSSMEMBER, RH |
MN150790 |
from US $20.20 |
||
|
61815L
|
61815L
5220B155
WHEELHOUSE,FR INR LH
|
5220B155 |
— | ||
|
61815R
|
61815R
5220B156
WHEELHOUSE,FR INR RH
|
5220B156 |
— | ||
|
61818L
|
61818L
5253B559
SIDEMEMBER,FR OTR LH
|
5253B559 |
— | ||
|
61818R
|
61818R
5253B558 SIDEMEMBER, FR OTR RH |
5253B558 |
US $168.72 |
||
|
61819L
|
61819L
5253B553
SIDEMEMBER,FR INR LH
|
5253B553 |
— | ||
|
61819R
|
61819R
5253B738
SIDEMEMBER,FR INR RH
|
5253B738 |
— | ||
|
61986B
|
61986B
5908A054
STAY,FR END STRUCTURE
|
5908A054 |
— | ||
|
61989BC
|
61989BC
MB400550 BOLT, FUEL LINEWasher assembled,6x16 |
MB400550 |
from US $1.68 |
||
|
62054
|
62054
6400A595
REINFORCEMENT,FR BUMPER
|
6400A595 |
— | ||
|
62523L
|
62523L
MN186483
EXTENSION,DASH PANEL,LH
|
MN186483 |
— | ||
|
62523R
|
62523R
MN186484
EXTENSION,DASH PANEL,RH
|
MN186484 |
— | ||
|
62608L
|
62608L
5215A031 BRACKET, HEADLAMP SUPPORT, LH |
5215A031 |
US $15.54 |
||
|
62608R
|
62608R
5215A032 BRACKET, HEADLAMP SUPPORT, RH |
5215A032 |
US $15.54 |
||
|
62640
|
62640
5256A308 PANEL, HEADLAMP SUPPORT, UPR |
5256A308 |
US $54.76 |
||
|
62640L
|
62640L
MN150799 PANEL, HEADLAMP SUPPORT, UPR LH |
MN150799 |
from US $16.28 |
||
|
62640R
|
62640R
5256A344 PANEL, HEADLAMP SUPPORT, UPR RH |
5256A344 |
from US $16.28 |
||
|
62650
|
62650
5256A339 PANEL, HEADLAMP SUPPORT, LWR |
5256A339 |
US $285.64 |
||
|
65009AL
|
65009AL
5253B545
SIDEMEMBER ASSY,FR LH
|
5253B545 |
— | ||
|
65009AR
|
65009AR
5253B730
SIDEMEMBER ASSY,FR RH
|
5253B730 |
— | ||
|
65054L
|
65054L
MN150791 SIDEMEMBER, FR FLOOR, LH |
MN150791 |
US $177.60 |
||
|
65054R
|
65054R
MN150792 SIDEMEMBER, FR FLOOR, RH |
MN150792 |
US $177.60 |
||
|
65078L
|
65078L
MN150793 REINFORCEMENT, FR FLOOR, LH |
MN150793 |
US $96.94 |
||
|
65078R
|
65078R
MN150794 REINFORCEMENT, FR FLOOR, RH |
MN150794 |
US $96.94 |
||
|
85296
|
85296
8201A048 BRACKET, BATTERY |
8201A048 |
US $30.34 |
||
|
42 150
|
Fender & front end cover
42 150
|
||||
