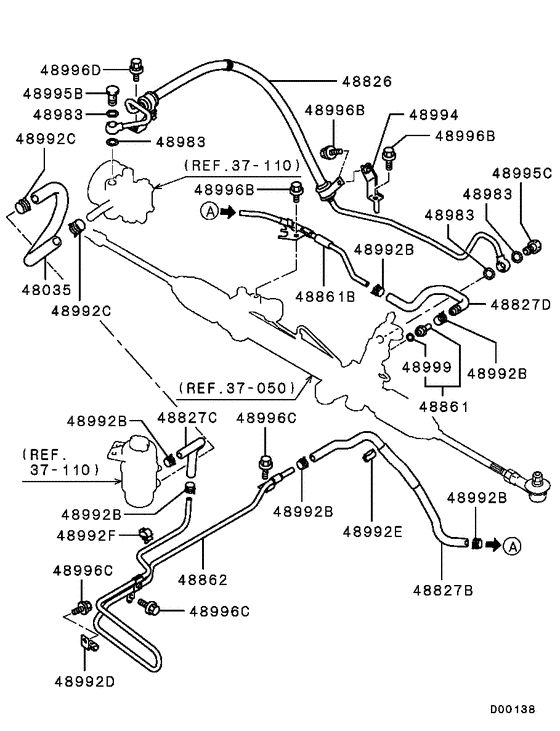

Power steering oil line (LHD..W/O DPF 0704.3-) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48035
|
48035
4455A069
HOSE,P/S OIL PUMP SUCTION
|
4455A069 |
— | ||
|
48826
|
48826
4455A064
HOSE,P/S OIL PRESSURE
|
4455A064 |
— | ||
|
48827B
|
48827B
MR594651 HOSE, P/S OIL RETURN |
MR594651 |
US $34.20 |
||
|
48827C
|
48827C
4455A070
HOSE,P/S OIL RETURN
|
4455A070 |
— | ||
|
48827D
|
48827D
4455A073
HOSE,P/S OIL RETURN
|
4455A073 |
— | ||
|
48861
|
48861
MR403661 TUBE, P/S OIL RETURN |
MR403661 |
US $3.97 |
||
|
48861B
|
48861B
4455A074
TUBE,P/S OIL RETURN
|
4455A074 |
— | ||
| replacement | |||||
|
48861B
|
48861B
4455A296
TUBE,P/S OIL RETURN
|
4455A296 |
— | ||
|
48861B
|
48861B
4455A296
TUBE,P/S OIL RETURN
|
4455A296 |
— | ||
|
48862
|
48862
4455A067
TUBE,P/S OIL COOLER
|
4455A067 |
— | ||
|
48862
|
48862
4455A351
TUBE,P/S OIL COOLER
|
4455A351 |
— | ||
|
48983
|
48983
MF660066 GASKET, PLUGD=16 |
MF660066 |
from US $1.01 |
||
|
48992B
|
48992B
MR133826 CLIP, P/S OIL LINE18.1 |
MR133826 |
from US $1.93 |
||
|
48992C
|
48992C
MS660171 CLAMP, P/S OIL PUMPD=20.8 |
MS660171 |
from US $1.33 |
||
|
48992C
|
48992C
MS660256 CLIP, VAPORIZERD=21.7 |
MS660256 |
from US $1.13 |
||
|
48992D
|
48992D
MB501809 CLIP, P/S OIL LINE10 |
MB501809 |
US $4.79 |
||
|
48992D
|
48992D
MB636388 CLIP, P/S OIL LINE |
MB636388 |
US $6.70 |
||
|
48992E
|
48992E
MU484008 CLIP, P/S OIL LINE |
MU484008 |
US $3.15 |
||
|
48992F
|
48992F
MR519749 CLIP, P/S OIL LINE |
MR519749 |
US $1.92 |
||
|
48994
|
48994
4455A111
BRACKET,P/S OIL LINE
|
4455A111 |
— | ||
|
48995B
|
48995B
MR491471 EYEBOLT, P/S OIL LINE |
MR491471 |
US $9.99 |
||
|
48995C
|
48995C
MR554636 EYEBOLT, P/S OIL LINE |
MR554636 |
from US $8.83 |
||
|
48996B
|
48996B
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
48996B
|
48996B
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
US $2.46 |
||
|
48996C
|
48996C
MU000369 BOLT, SPARE TIRE CARRIER8x21 |
MU000369 |
US $1.78 |
||
|
48996C
|
48996C
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.44 |
||
|
48996D
|
48996D
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
48999
|
48999
MB166042
O-RING, STEERING GEAR INR
|
MB166042 |
— | ||
| replacement | |||||
|
48999
|
48999
MB950259 O-RING, STEERING GEAR INR |
MB950259 |
from US $1.58 |
||
|
37 050
|
Steering gear
37 050
|
||||
|
37 050
|
Steering gear
37 050
|
||||
|
37 110
|
Power steering oil pump
37 110
|
||||
|
37 110
|
Power steering oil pump
37 110
|
||||
