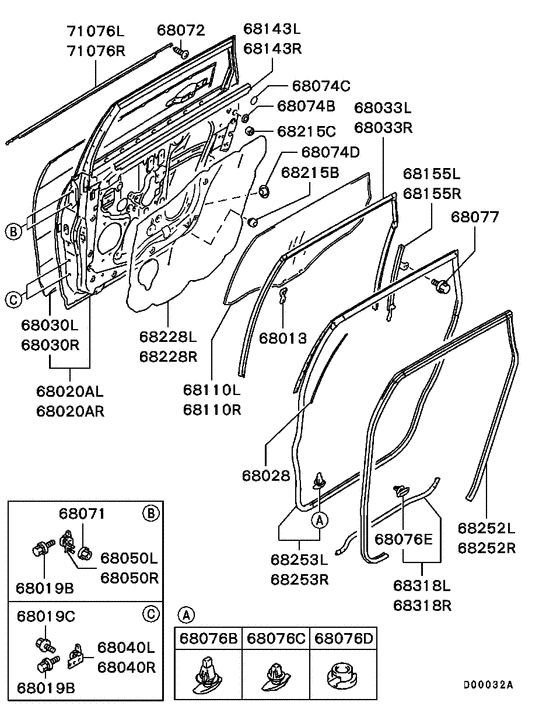

Rear door panel & glass Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68013
|
68013
MN142365 HOLDER, RR DOOR WINDOW GLASS |
MN142365 |
US $6.07 |
||
|
68019B
|
68019B
MU240121 BOLT, FR DOOR HINGEWasher assembled,8t,8x28 |
MU240121 |
US $2.60 |
||
|
68019C
|
68019C
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.44 |
||
|
68020AL
|
68020AL
5730A047
PANEL ASSY,RR DOOR,LH
|
5730A047 |
— | ||
|
68020AL
|
68020AL
MN150855 PANEL ASSY, RR DOOR, LH |
MN150855 |
US $809.54 |
||
|
68020AR
|
68020AR
5730A048
PANEL ASSY,RR DOOR,RH
|
5730A048 |
— | ||
|
68020AR
|
68020AR
MN150856 PANEL ASSY, RR DOOR, RH |
MN150856 |
US $809.54 |
||
|
68028
|
68028
MR959763 RETAINER, RR DOOR W/STRIP |
MR959763 |
US $2.81 |
||
|
68030L
|
68030L
MN150857 PANEL, RR DOOR, OTR LH |
MN150857 |
US $313.04 |
||
|
68030R
|
68030R
MN150858 PANEL, RR DOOR, OTR RH |
MN150858 |
US $313.04 |
||
|
68033L
|
68033L
MR959647 RUNCHANNEL, RR DOOR WINDOW GLASS, LH |
MR959647 |
US $63.64 |
||
|
68033R
|
68033R
MR959648 RUNCHANNEL, RR DOOR WINDOW GLASS, RH |
MR959648 |
US $63.64 |
||
|
68040L
|
68040L
MR292180 HINGE, FR DOOR, UPR |
MR292180 |
from US $36.26 |
||
|
68040R
|
68040R
MR292179 HINGE, FR DOOR, LWR |
MR292179 |
US $36.26 |
||
|
68050L
|
68050L
MR599601 HINGE, RR DOOR, UPR LH |
MR599601 |
US $24.42 |
||
|
68050R
|
68050R
MR599602 HINGE, RR DOOR, UPR RH |
MR599602 |
US $24.42 |
||
|
68071
|
68071
MU431508 NUT, HEATER8 |
MU431508 |
from US $1.07 |
||
|
68072
|
68072
MF453075 SCREW, WINDSHIELD PANELTapping,4x8 |
MF453075 |
from US $1.77 |
||
|
68074B
|
68074B
MU670034 PLUG, BODY25 |
MU670034 |
from US $2.65 |
||
|
68074C
|
68074C
MU670004 PLUG, BODY30 |
MU670004 |
US $1.48 |
||
|
68074D
|
68074D
MU670031 PLUG, FR DOORPlastic,10 |
MU670031 |
from US $2.81 |
||
|
68076B
|
68076B
MU481276 CLIP, FR DOOR5.2 |
MU481276 |
from US $1.66 |
||
|
68076C
|
68076C
MU000255 CLIP, FR DOOR |
MU000255 |
from US $2.03 |
||
|
68076D
|
68076D
MR970990 CLIP, FR DOOR |
MR970990 |
US $3.83 |
||
|
68076E
|
68076E
MU481027 CLIP, HOOD5.3 |
MU481027 |
from US $1.11 |
||
|
68077
|
68077
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
68110L
|
68110L
5736A135 GLASS, RR DOOR WINDOW, LH |
5736A135 |
US $425.15 |
||
|
68110L
|
68110L
MN129337 GLASS, RR DOOR WINDOW, LH |
MN129337 |
US $282.68 |
||
|
68110L
|
68110L
MN129339 GLASS, RR DOOR WINDOW, LH |
MN129339 |
US $467.38 |
||
| replacement | |||||
|
68110L
|
68110L
5736A135 GLASS, RR DOOR WINDOW, LH |
5736A135 |
US $425.15 |
||
|
68110R
|
68110R
5736A136 GLASS, RR DOOR WINDOW, RH |
5736A136 |
US $425.15 |
||
|
68110R
|
68110R
MN129338 GLASS, RR DOOR WINDOW, RH |
MN129338 |
US $282.68 |
||
|
68110R
|
68110R
MN129340 GLASS, RR DOOR WINDOW, RH |
MN129340 |
US $467.38 |
||
| replacement | |||||
|
68110R
|
68110R
5736A136 GLASS, RR DOOR WINDOW, RH |
5736A136 |
US $425.15 |
||
|
68143L
|
68143L
MR959759 WEATHERSTRIP, RR DOOR BELT, INR LH |
MR959759 |
US $24.42 |
||
|
68143R
|
68143R
MR959760 WEATHERSTRIP, RR DOOR BELT, INR RH |
MR959760 |
US $24.42 |
||
|
68155L
|
68155L
5735A077 SASH, RR DOOR WINDOW, RR LWR LH |
5735A077 |
US $28.12 |
||
|
68155R
|
68155R
5735A078 SASH, RR DOOR WINDOW, RR LWR RH |
5735A078 |
US $28.12 |
||
|
68215B
|
68215B
MB019730 CUSHION, FR DOOR |
MB019730 |
from US $2.13 |
||
|
68215C
|
68215C
MR573227 DAMPER, FR DOOR |
MR573227 |
from US $1.13 |
||
|
68228L
|
68228L
MR959715 FILM, RR DOOR WATERPROOF, LH |
MR959715 |
US $13.76 |
||
|
68228R
|
68228R
MR959715 FILM, RR DOOR WATERPROOF, LH |
MR959715 |
US $13.76 |
||
|
68228R
|
68228R
MR959716 FILM, RR DOOR WATERPROOF, RH |
MR959716 |
US $15.54 |
||
|
68252L
|
68252L
MR959707XA WEATHERSTRIP, RR DOOR OPENING, INR LH |
MR959707XA |
US $103.60 |
||
|
68252R
|
68252R
MR959708XA WEATHERSTRIP, RR DOOR OPENING, INR RH |
MR959708XA |
US $103.60 |
||
|
68253L
|
68253L
MR959703 WEATHERSTRIP, RR DOOR OPENING, OTR LH |
MR959703 |
US $89.54 |
||
|
68253L
|
68253L
MR959705 WEATHERSTRIP, RR DOOR OPENING, OTR LH |
MR959705 |
US $89.54 |
||
|
68253R
|
68253R
MR959704 WEATHERSTRIP, RR DOOR OPENING, OTR RH |
MR959704 |
US $89.54 |
||
|
68253R
|
68253R
MR959706 WEATHERSTRIP, RR DOOR OPENING, OTR RH |
MR959706 |
US $89.54 |
||
|
68318L
|
68318L
MR959761 WEATHERSTRIP, RR DOOR OPENING, LWR OTR LH |
MR959761 |
US $5.18 |
||
|
68318R
|
68318R
MR959761 WEATHERSTRIP, RR DOOR OPENING, LWR OTR LH |
MR959761 |
US $5.18 |
||
|
71076L
|
71076L
MR959685 MOULDING, RR DOOR WINDOW BELT LINE, LH |
MR959685 |
US $63.64 |
||
|
71076R
|
71076R
MR959686 MOULDING, RR DOOR WINDOW BELT LINE, RH |
MR959686 |
US $63.64 |
||
