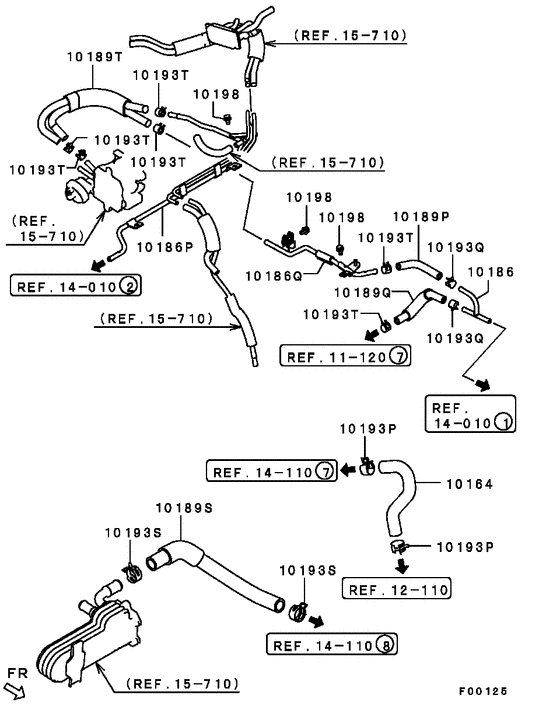

Water pipe & thermostat (BSY) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10164
|
10164
1310A165
HOSE,ENG OIL COOLER WATER RETURN
|
1310A165 |
— | ||
|
10186
|
10186
1310A297
PIPE,COOLING WATER LINE
|
1310A297 |
— | ||
|
10186P
|
10186P
1310A300
PIPE,COOLING WATER LINE
|
1310A300 |
— | ||
|
10186Q
|
10186Q
1310A301
PIPE,COOLING WATER LINE
|
1310A301 |
— | ||
|
10189P
|
10189P
1310A299
HOSE,COOLING WATER LINE
|
1310A299 |
— | ||
|
10189Q
|
10189Q
1310A298
HOSE,COOLING WATER LINE
|
1310A298 |
— | ||
|
10189S
|
10189S
1310A163
HOSE,COOLING WATER LINE
|
1310A163 |
— | ||
|
10189T
|
10189T
1310A302
HOSE,COOLING WATER LINE
|
1310A302 |
— | ||
|
10193P
|
10193P
MN980140
CLIP,COOLING WATER LINE
|
MN980140 |
— | ||
|
10193P
|
10193P
MS660256 CLIP, VAPORIZERD=21.7 |
MS660256 |
from US $1.13 |
||
|
10193Q
|
10193Q
MN980140
CLIP,COOLING WATER LINE
|
MN980140 |
— | ||
|
10193Q
|
10193Q
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10193S
|
10193S
MU000830
CLIP,COOLING WATER LINE
|
MU000830 |
— | ||
|
10193S
|
10193S
MU000831 CLAMP, HEATER PIPINGW/HOLDER CLIP |
MU000831 |
US $4.88 |
||
|
10193T
|
10193T
MC128932
CLIP,BRAKE M/CYL
|
MC128932 |
— | ||
|
10198
|
10198
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
11 120
|
Cylinder head
11 120
|
||||
|
12 110
|
Oil pump & oil filter
12 110
|
||||
|
12 110
|
Oil pump & oil filter
12 110
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
