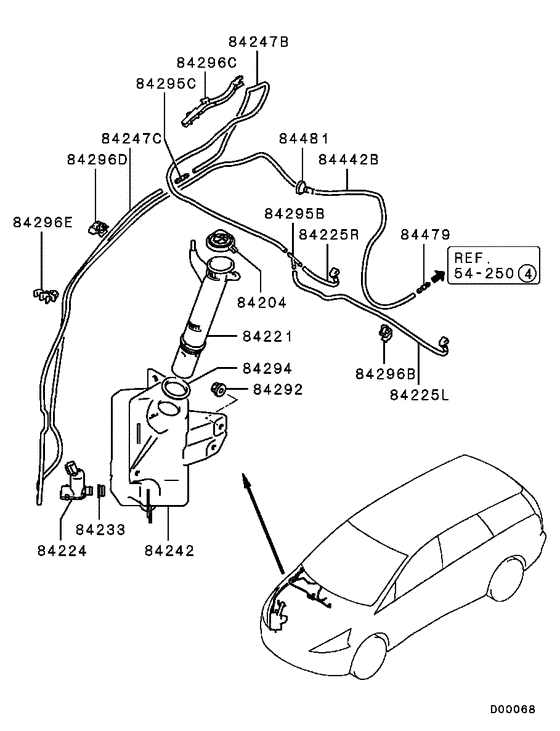

Windshield wiper & washer (WASHER..W/O HEADLAMP WASHER) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (6PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84204
|
84204
MR502996 CAP, WINDSHIELD WASHER TANK FILLER |
MR502996 |
from US $4.31 |
||
|
84221
|
84221
MN182395 HOSE, WINDSHIELD WASHER TANK FILLER |
MN182395 |
US $17.10 |
||
|
84224
|
84224
MN182397 MOTOR, WINDSHIELD WASHER |
MN182397 |
from US $82.19 |
||
|
84225L
|
84225L
8265A321 NOZZLE,WINDSHIELD WASHER,LH |
8265A321 |
US $21.90 |
||
|
84225L
|
84225L
MR957751 NOZZLE, WINDSHIELD WASHER |
MR957751 |
from US $21.20 |
||
|
84225R
|
84225R
8265A322
NOZZLE,WINDSHIELD WASHER,RH
|
8265A322 |
— | ||
|
84225R
|
84225R
MN129292 NOZZLE, WINDSHIELD WASHER |
MN129292 |
from US $15.09 |
||
|
84233
|
84233
MB848903 GROMMET, WINDSHIELD WASHER |
MB848903 |
from US $2.22 |
||
|
84242
|
84242
8260A001
TANK,WINDSHIELD WASHER
|
8260A001 |
— | ||
|
84242
|
84242
MN182394 TANK, WINDSHIELD WASHER |
MN182394 |
US $67.03 |
||
|
84247B
|
84247B
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84247C
|
84247C
8265A228 TUBE, WINDSHIELD WASHER MOTOR SIDEPvc,4x7x850 |
8265A228 |
US $6.51 |
||
|
84247C
|
84247C
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84292
|
84292
MU431508 NUT, HEATER8 |
MU431508 |
from US $1.07 |
||
|
84294
|
84294
MN182396 GROMMET, WINDSHIELD WASHER |
MN182396 |
US $5.61 |
||
|
84295B
|
84295B
MB084419 JOINT, CHASSIS WIRING |
MB084419 |
from US $0.98 |
||
|
84295C
|
84295C
MB848908 JOINT, WINDSHIELD WASHER |
MB848908 |
from US $1.19 |
||
|
84296B
|
84296B
MU481132 CLIP, WINDSHIELD WASHER7 |
MU481132 |
from US $2.16 |
||
|
84296C
|
84296C
MN145290 CLIP, WINDSHIELD WASHER |
MN145290 |
US $6.22 |
||
|
84296D
|
84296D
MU000639 CLIP, WINDSHIELD WASHER |
MU000639 |
from US $1.72 |
||
|
84296E
|
84296E
MU000578 CLIP, WINDSHIELD WASHER2-6.5 |
MU000578 |
US $2.22 |
||
|
84442B
|
84442B
MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4x2000 |
MB084759 |
from US $19.84 |
||
|
84479
|
84479
MB848908 JOINT, WINDSHIELD WASHER |
MB848908 |
from US $1.19 |
||
|
84481
|
84481
MR490692 GROMMET, RR WINDOW WASHER |
MR490692 |
US $4.59 |
||
|
