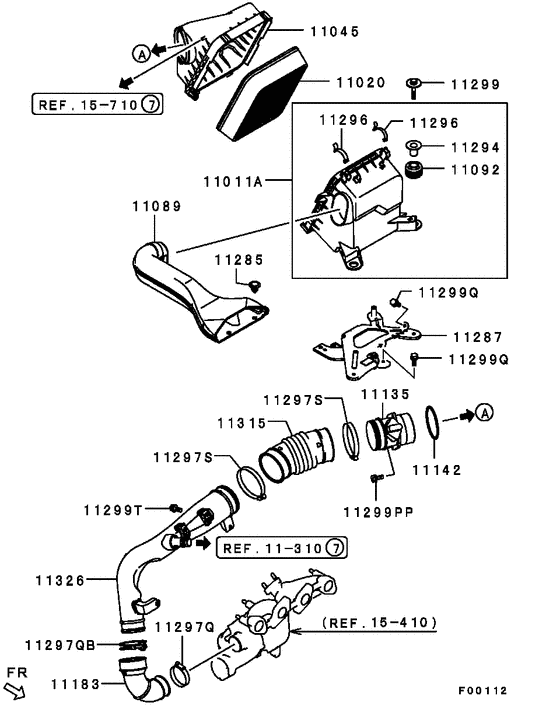

Air cleaner (BSY) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (7PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
1500A172
BODY ASSY,AIR CLEANER
|
1500A172 |
— | ||
|
11020
|
11020
MN135269 ELEMENT,AIR CLEANER |
MN135269 |
US $50.06 |
||
|
11045
|
11045
1500A173
COVER,AIR CLEANER
|
1500A173 |
— | ||
|
11089
|
11089
1505A013
DUCT,AIR CLEANER INTAKE
|
1505A013 |
— | ||
|
11092
|
11092
MR450011 INSULATOR, AIR CLEANER SUPPORT |
MR450011 |
US $4.59 |
||
|
11135
|
11135
MN191135
SENSOR,AIR CLEANER AIR FLOW
|
MN191135 |
— | ||
|
11142
|
11142
1525A010
O-RING,AIR CLEANER AIR FLOW SENSOR
|
1525A010 |
— | ||
|
11183
|
11183
1505A253
DUCT,AIR CLEANER TO T/C
|
1505A253 |
— | ||
|
11285
|
11285
MU488006 CLIP, ENG ROOM COVER8 |
MU488006 |
from US $0.68 |
||
|
11287
|
11287
1500A070
BRACKET,AIR CLEANER
|
1500A070 |
— | ||
|
11294
|
11294
MR450012 COLLAR, AIR CLEANER |
MR450012 |
US $3.55 |
||
|
11296
|
11296
MR386119 CLAMP, AIR CLEANER INR |
MR386119 |
from US $3.71 |
||
|
11297Q
|
11297Q
MD145976 CLAMP, ENG AIR INTAKE LINE70 |
MD145976 |
US $9.58 |
||
|
11297Q
|
11297Q
MF661133 CLAMP, AIR CLEANER71 |
MF661133 |
from US $3.70 |
||
|
11297S
|
11297S
MF661142 CLAMP, AIR CLEANER INR93 |
MF661142 |
US $8.21 |
||
|
11297S
|
11297S
MR187850 CLAMP, AIR CLEANER90 |
MR187850 |
US $8.14 |
||
|
11299
|
11299
MD305640 BOLT, AIR CLEANERWasher assembled,6x35 |
MD305640 |
from US $1.70 |
||
|
11299PP
|
11299PP
MF244824 BOLTWasher assembled,6x16 |
MF244824 |
from US $0.82 |
||
|
11299Q
|
11299Q
MS240138 BOLT, EMISSION VACUUM CONTROL EQUIPWasher assembled,6x18 |
MS240138 |
US $2.60 |
||
|
11299T
|
11299T
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
