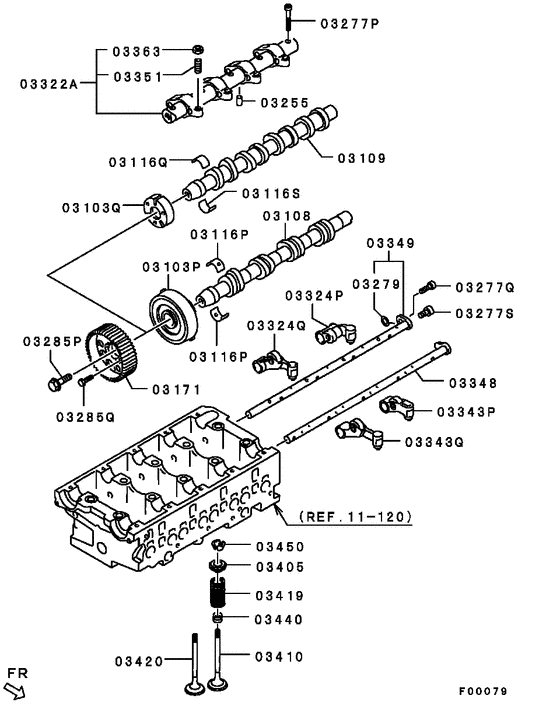

Camshaft & valve (ALL) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (7PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS/DPF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03103P
|
03103P
MN980067
HUB,CAMSHAFT
|
MN980067 |
— | ||
|
03103P
|
03103P
MN980269
HUB,CAMSHAFT
|
MN980269 |
— | ||
|
03103Q
|
03103Q
MN980068
HUB,CAMSHAFT
|
MN980068 |
— | ||
|
03108
|
03108
MN980061
CAMSHAFT,INLET
|
MN980061 |
— | ||
|
03109
|
03109
MN980062
CAMSHAFT,EXHAUST
|
MN980062 |
— | ||
|
03109
|
03109
MN980315
CAMSHAFT,EXHAUST
|
MN980315 |
— | ||
|
03116P
|
03116P
MN980063
BEARING,CAMSHAFT
|
MN980063 |
— | ||
|
03116Q
|
03116Q
MN980065
BEARING,CAMSHAFT
|
MN980065 |
— | ||
|
03116S
|
03116S
MN980064
BEARING,CAMSHAFT
|
MN980064 |
— | ||
|
03171
|
03171
MN980066
SPROCKET,CAMSHAFT
|
MN980066 |
— | ||
|
03255
|
03255
MN980090
PIN,VALVE GEAR TRAIN
|
MN980090 |
— | ||
|
03277P
|
03277P
MN980089
BOLT,VALVE GEAR TRAIN
|
MN980089 |
— | ||
|
03277Q
|
03277Q
MN980078
BOLT,VALVE GEAR TRAIN
|
MN980078 |
— | ||
|
03277Q
|
03277Q
MN980238
BOLT,VALVE GEAR TRAIN
|
MN980238 |
— | ||
|
03277S
|
03277S
MN980079
BOLT,VALVE GEAR TRAIN
|
MN980079 |
— | ||
|
03279
|
03279
MN980075
O-RING,VALVE GEAR TRAIN
|
MN980075 |
— | ||
|
03285P
|
03285P
MN980070
BOLT,TIMING BELT TRAIN
|
MN980070 |
— | ||
|
03285Q
|
03285Q
MN980069
BOLT,TIMING BELT TRAIN
|
MN980069 |
— | ||
|
03285Q
|
03285Q
MN980298
BOLT,TIMING BELT TRAIN
|
MN980298 |
— | ||
|
03322A
|
03322A
MN980086
ROCKER ARM & SHAFT ASSY
|
MN980086 |
— | ||
|
03324P
|
03324P
MN980076
ROCKER ARM,EXHAUST VALVE
|
MN980076 |
— | ||
|
03324Q
|
03324Q
MN980077
ROCKER ARM,EXHAUST VALVE
|
MN980077 |
— | ||
|
03343P
|
03343P
MN980072
ROCKER ARM,INLET VALVE
|
MN980072 |
— | ||
|
03343Q
|
03343Q
MN980073
ROCKER ARM,INLET VALVE
|
MN980073 |
— | ||
|
03348
|
03348
MN980071
SHAFT,INLET VALVE ROCKER ARM
|
MN980071 |
— | ||
|
03349
|
03349
MN980074
SHAFT,EXHAUST VALVE ROCKER ARM
|
MN980074 |
— | ||
|
03351
|
03351
MN980087
ADJUSTING SCREW,ROCKER ARM
|
MN980087 |
— | ||
|
03363
|
03363
MN980088
NUT,ROCKER ARM ADJUSTING SCREW LOCK
|
MN980088 |
— | ||
|
03405
|
03405
MN980083
RETAINER,VALVE SPRING
|
MN980083 |
— | ||
|
03410
|
03410
MN980080
VALVE,INLET
|
MN980080 |
— | ||
|
03419
|
03419
MN980082
SPRING,INLET & EXHAUST VALVE
|
MN980082 |
— | ||
|
03420
|
03420
MN980081
Valve,exhaust
|
MN980081 |
— | ||
|
03440
|
03440
MN980085
SEAL,VALVE STEM
|
MN980085 |
— | ||
|
03450
|
03450
MN980084
LOCK,VALVE SPRING RETAINER
|
MN980084 |
— | ||
|
11 120
|
Cylinder head
11 120
|
||||
