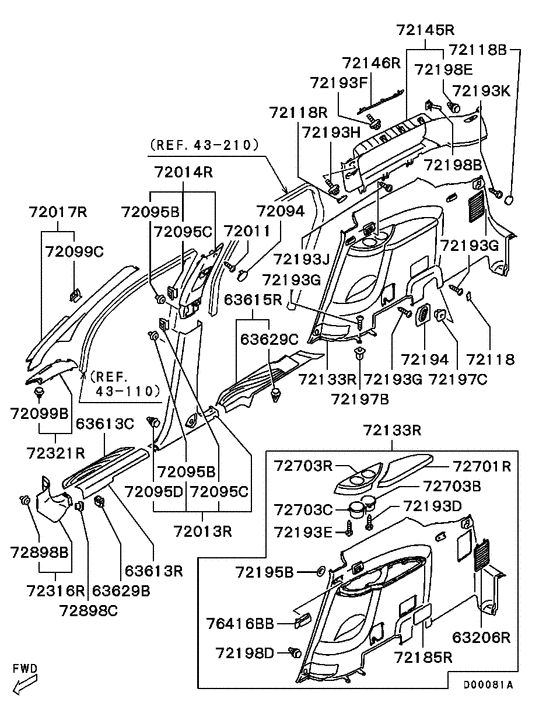

Interior trim (RH) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (7PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63206R
|
63206R
MR951976HA COVER, QTR SIDE, RH |
MR951976HA |
US $7.25 |
||
|
63613C
|
63613C
7656A066HA SCUFF PLATE |
7656A066HA |
US $18.50 |
||
|
63613C
|
63613C
MR576164HA SCUFF PLATE |
MR576164HA |
US $15.54 |
||
|
63613R
|
63613R
MR962012HA SCUFF PLATE, RH |
MR962012HA |
from US $16.09 |
||
|
63615R
|
63615R
MN188532HA SCUFF PLATE, RR RH |
MN188532HA |
US $39.96 |
||
|
63629B
|
63629B
MR996285 CLIP, SCUFF PLATE |
MR996285 |
US $6.22 |
||
|
63629C
|
63629C
MU000504 CLIP, RADIATOR GRILLE8.5 |
MU000504 |
from US $1.60 |
||
|
72011
|
72011
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
72013R
|
72013R
7211A152HA TRIM, CTR PILLAR, LWR RH |
7211A152HA |
US $82.88 |
||
|
72014R
|
72014R
7211A150HA TRIM, CTR PILLAR, UPR RH |
7211A150HA |
US $56.24 |
||
|
72017R
|
72017R
7210A088HA
TRIM,FR PILLAR,RH
|
7210A088HA |
— | ||
|
72017R
|
72017R
7210A140HA TRIM, FR PILLAR, RH |
7210A140HA |
US $76.22 |
||
|
72094
|
72094
MN134244HA PLUG, CTR PILLAR TRIM |
MN134244HA |
US $2.07 |
||
|
72095B
|
72095B
MR101262 CLIP, OVERFENDER |
MR101262 |
from US $1.21 |
||
|
72095C
|
72095C
MU470013 CLIP, TAILGATE TRIM |
MU470013 |
from US $0.84 |
||
|
72095D
|
72095D
MN151909 CLIP, CTR PILLAR TRIM |
MN151909 |
US $2.66 |
||
|
72099B
|
72099B
MR101262 CLIP, OVERFENDER |
MR101262 |
from US $1.21 |
||
|
72099C
|
72099C
MU470013 CLIP, TAILGATE TRIM |
MU470013 |
from US $0.84 |
||
|
72118
|
72118
MN166509HA CAP, QTR TRIM |
MN166509HA |
US $2.07 |
||
|
72118R
|
72118R
MN134240HA CAP, QTR TRIM, RH |
MN134240HA |
US $4 |
||
|
72133R
|
72133R
7230A420HA
TRIM,QTR,LWR RH
|
7230A420HA |
— | ||
|
72145R
|
72145R
7230A402HA TRIM, QTR, UPR RH |
7230A402HA |
US $182.04 |
||
|
72146R
|
72146R
MN166526 BRACKET, QTR TRIM, UPR RH |
MN166526 |
US $9.03 |
||
|
72185R
|
72185R
MR951974HA LID, QTR TRIM, RR RH |
MR951974HA |
US $6.22 |
||
|
72193D
|
72193D
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.46 |
||
|
72193E
|
72193E
MF453032 SCREW, STEERING WHEELTapping,5x14 |
MF453032 |
from US $1.27 |
||
|
72193E
|
72193E
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72193F
|
72193F
MS200130 SCREW, QTR WINDOWMachine tapping,6x16 |
MS200130 |
US $3.69 |
||
|
72193F
|
72193F
MS350109 SCREW, FUEL LINEWasher assembled,6x16 |
MS350109 |
US $1.92 |
||
|
72193G
|
72193G
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72193H
|
72193H
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
72193J
|
72193J
MF350321 SCREW,VIDEO EQUIP |
MF350321 |
US $1.33 |
||
|
72193K
|
72193K
MF350317 SCREW, RADIATOR GRILLEWasher assembled,6x25 |
MF350317 |
from US $0.86 |
||
|
72194
|
72194
MN134241HA PLUG, QTR TRIM |
MN134241HA |
US $8.88 |
||
|
72194
|
72194
MN134242HA PLUG, QTR TRIM |
MN134242HA |
US $8.88 |
||
|
72195B
|
72195B
MS440054 NUT, FR SEATPush-on spring,5 |
MS440054 |
from US $0.53 |
||
|
72197B
|
72197B
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
72197C
|
72197C
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
72198B
|
72198B
MB849052 CLIP, TAILGATE TRIM |
MB849052 |
from US $2.69 |
||
|
72198D
|
72198D
MU000504 CLIP, RADIATOR GRILLE8.5 |
MU000504 |
from US $1.60 |
||
|
72198E
|
72198E
MU000504 CLIP, RADIATOR GRILLE8.5 |
MU000504 |
from US $1.60 |
||
|
72316R
|
72316R
MN173434HA
TRIM,COWL SIDE,RH
|
MN173434HA |
— | ||
|
72321R
|
72321R
7210A142HA TRIM, COWL SIDE, UPR RH |
7210A142HA |
US $20.72 |
||
|
72701R
|
72701R
7230A404XA ARMREST, QTR, RH |
7230A404XA |
US $116.92 |
||
|
72703R
|
72703R
MN151799HA HOLDER, QTR ARMREST CUP, RH |
MN151799HA |
US $38.48 |
||
|
72898B
|
72898B
MN151823 CLIP, FLOOR TRIM |
MN151823 |
US $1.63 |
||
|
72898C
|
72898C
MU481130 CLIP, RR END TRIM |
MU481130 |
from US $1.03 |
||
|
76416BB
|
76416BB
MR647786 CLIP, QTR TRIM |
MR647786 |
US $4.14 |
||
|
