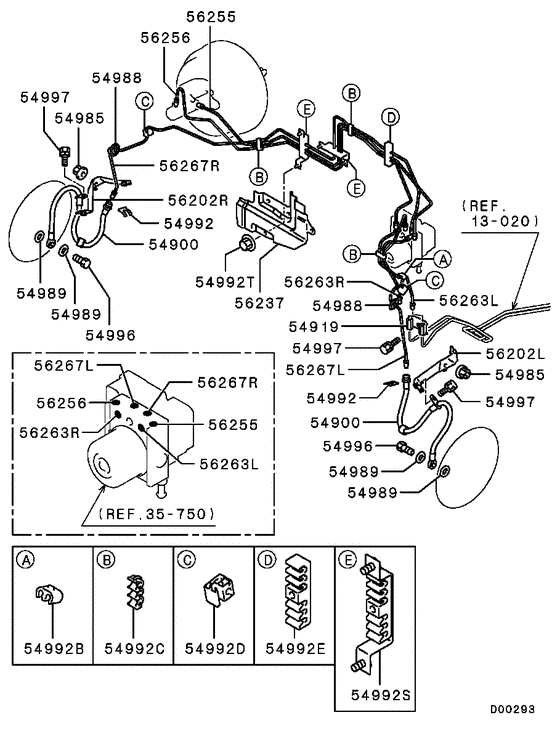

Brake line (FRONT..RHD(W/ABS,W/DPF) 0706.1-) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (7PERSONS/DPF),6FM/T RHD
- transmission
- 6FM/T
- grade
- 7PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MR955461 HOSE, FR BRAKE |
MR955461 |
US $20.72 |
||
|
54919
|
54919
MR510683 JOINT, BRAKE FLUID LINE |
MR510683 |
US $21.20 |
||
|
54985
|
54985
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992B
|
54992B
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
54992C
|
54992C
MB344693 CLIP, BRAKE FLUID LINE4.8-4.8-4.8 |
MB344693 |
from US $2.63 |
||
|
54992D
|
54992D
MR129462 CLIP, RR AXLE BRAKE TUBE4.8 |
MR129462 |
from US $2.40 |
||
|
54992E
|
54992E
MR493270 CLIP, BRAKE FLUID LINE |
MR493270 |
US $5.75 |
||
|
54992S
|
54992S
4650A679
CLIP,BRAKE FLUID LINE
|
4650A679 |
— | ||
|
54992T
|
54992T
MN111524 CLIP, ENG ROOM INSULATOR |
MN111524 |
from US $1.52 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997
|
54997
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
56202L
|
56202L
MN102761 BRACKET, BRAKE HOSE, LH |
MN102761 |
US $13.47 |
||
|
56202R
|
56202R
MN102762 BRACKET, BRAKE HOSE, RH |
MN102762 |
US $13.47 |
||
|
56237
|
56237
4650A669
PROTECTOR,BRAKE LINE HEAT
|
4650A669 |
— | ||
|
56255
|
56255
4650A542 TUBE,BRAKE M/CYL PRIMARY |
4650A542 |
US $19.24 |
||
|
56256
|
56256
4650A543 TUBE,BRAKE M/CYL SECONDARY |
4650A543 |
US $19.98 |
||
|
56263L
|
56263L
MN102243 TUBE, BRAKE MAIN, FR LH |
MN102243 |
US $7.84 |
||
|
56263R
|
56263R
MN102244 TUBE, BRAKE MAIN, FR RH |
MN102244 |
US $7.84 |
||
|
56267L
|
56267L
MN102241 TUBE, FR BRAKE, LH |
MN102241 |
US $11.25 |
||
|
56267R
|
56267R
4650A541 TUBE,FR BRAKE,RH |
4650A541 |
US $24.42 |
||
|
