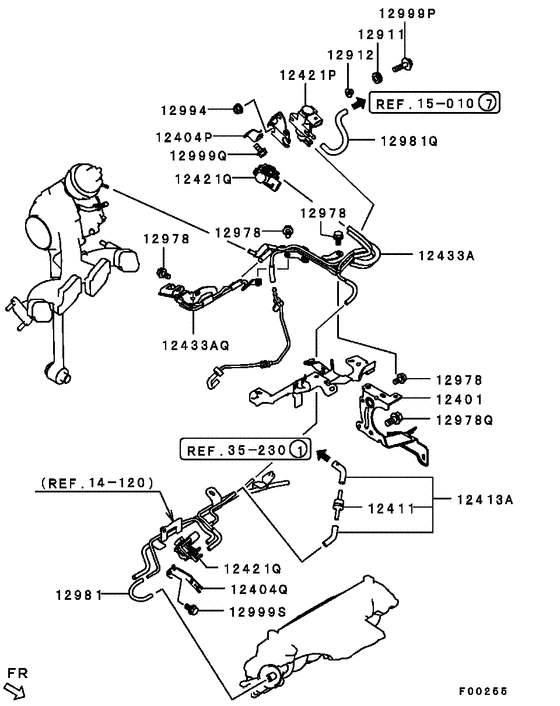

Emission control (BWC (VACUUM HOSE)) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (7PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12413A
|
12413A
1632A113
HOSE ASSY,EMISSION VACUUM CONTROL
|
1632A113 |
— | ||
|
12433A
|
12433A
1632A114
HOSE & PIPE ASSY,EMISSION CONTROL
|
1632A114 |
— | ||
|
12912
|
12912
8657A063
COLLAR,EMISSION SOLENOID VALVE
|
8657A063 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.73 |
||
|
12978
|
12978
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.80 |
||
|
12978Q
|
12978Q
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $0.99 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.11 |
||
|
12999P
|
12999P
MF247228 BOLT, FUEL LINEWasher assembled,6x25 |
MF247228 |
from US $1.05 |
||
|
12999Q
|
12999Q
MF140003 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140003 |
from US $0.80 |
||
|
12999S
|
12999S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.80 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
|
15 010
|
Air cleaner
15 010
|
||||
|
15 010
|
Air cleaner
15 010
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
