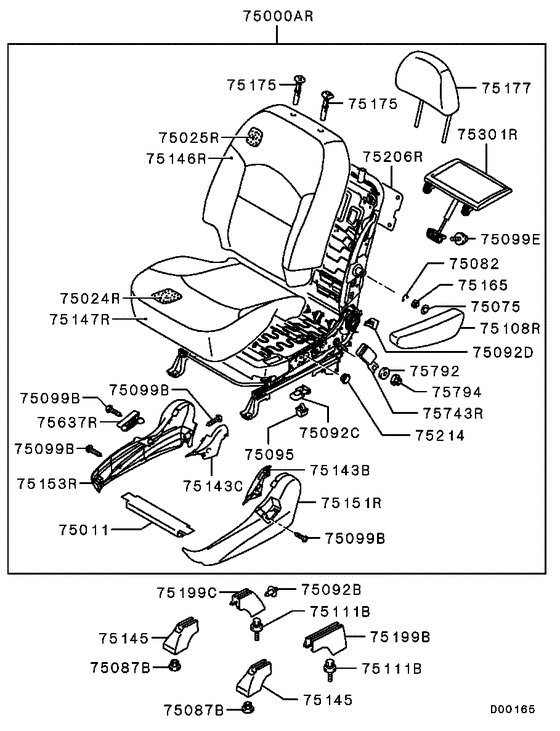

Front seat (LHD..RH(W/O HEIGHT)) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (7PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75000AR
|
75000AR
6900A260HB
SEAT ASSY,FR RH
|
6900A260HB |
— | ||
|
75000AR
|
75000AR
6900A382XA
SEAT ASSY,FR RH
|
6900A382XA |
— | ||
|
75000AR
|
75000AR
6900A706HA
SEAT ASSY,FR RH
|
6900A706HA |
— | ||
|
75000AR
|
75000AR
6900A706HB
SEAT ASSY,FR RH
|
6900A706HB |
— | ||
|
75000AR
|
75000AR
6900A706HC
SEAT ASSY,FR RH
|
6900A706HC |
— | ||
|
75000AR
|
75000AR
6900A706XA
SEAT ASSY,FR RH
|
6900A706XA |
— | ||
|
75000AR
|
75000AR
6900A710HA
SEAT ASSY,FR RH
|
6900A710HA |
— | ||
|
75000AR
|
75000AR
6900A710HB
SEAT ASSY,FR RH
|
6900A710HB |
— | ||
|
75000AR
|
75000AR
6900A710HC
SEAT ASSY,FR RH
|
6900A710HC |
— | ||
|
75000AR
|
75000AR
6900A710XA
SEAT ASSY,FR RH
|
6900A710XA |
— | ||
|
75000AR
|
75000AR
6900B470XA
SEAT ASSY,FR RH
|
6900B470XA |
— | ||
|
75000AR
|
75000AR
6900B470XB
SEAT ASSY,FR RH
|
6900B470XB |
— | ||
|
75000AR
|
75000AR
6900B472HA
SEAT ASSY,FR RH
|
6900B472HA |
— | ||
|
75011
|
75011
6977A011 SHIELD, FR SEAT CUSHION |
6977A011 |
US $22.94 |
||
|
75011
|
75011
MN166622 SHIELD, FR SEAT CUSHION |
MN166622 |
US $34.04 |
||
|
75024R
|
75024R
6901A201
PAD,FR SEAT CUSHION
|
6901A201 |
— | ||
|
75024R
|
75024R
6911A234
PAD,FR SEAT CUSHION,LH
|
6911A234 |
— | ||
|
75025R
|
75025R
6901A204
PAD,FR SEAT BACK
|
6901A204 |
— | ||
|
75025R
|
75025R
6901B054
PAD,FR SEAT BACK,RH
|
6901B054 |
— | ||
|
75025R
|
75025R
6911A164
PAD,FR SEAT BACK,RH
|
6911A164 |
— | ||
|
75075
|
75075
MN166644 WASHER, FR SEAT |
MN166644 |
US $1.78 |
||
|
75082
|
75082
6970A073 SNAP RING, FR SEAT14 |
6970A073 |
US $1.78 |
||
|
75082
|
75082
MN166643 SNAP RING, FR SEAT17 |
MN166643 |
US $2.07 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75092B
|
75092B
MR655518 CLIP, SCUFF PLATE6.5-7.5 |
MR655518 |
US $1.78 |
||
|
75092C
|
75092C
MN148721 CLIP, FR SEAT |
MN148721 |
US $2.52 |
||
|
75092D
|
75092D
6979A001 CLIP, FR SEAT |
6979A001 |
US $2.07 |
||
|
75095
|
75095
MB399018 BAND, DOOR WIRING200 |
MB399018 |
US $2.52 |
||
|
75099B
|
75099B
MR321184 SCREW, FR SEAT4x8 |
MR321184 |
US $1.78 |
||
|
75099E
|
75099E
MF351032 SCREW, FUEL FILLER LID LOCKINGWasher assembled,6x16 |
MF351032 |
US $1.92 |
||
|
75108R
|
75108R
6970A046XA ARMREST, FR SEAT, RH |
6970A046XA |
US $452.82 |
||
|
75108R
|
75108R
6970A046XC
ARMREST,FR SEAT,RH
|
6970A046XC |
— | ||
|
75108R
|
75108R
MN166656HC
ARMREST,FR SEAT,RH
|
MN166656HC |
— | ||
|
75108R
|
75108R
MN166656XC ARMREST, FR SEAT, RH |
MN166656XC |
US $211.64 |
||
|
75111B
|
75111B
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75143B
|
75143B
MN148701XA COVER, FR SEAT SIDE SHIELD, INR |
MN148701XA |
US $9.92 |
||
|
75143C
|
75143C
MN148702XA COVER, FR SEAT SIDE SHIELD, INR |
MN148702XA |
US $9.92 |
||
|
75145
|
75145
MR966082XA COVER, FR SEAT ANCHOR |
MR966082XA |
US $5.77 |
||
|
75146R
|
75146R
6901A354HA
COVER,FR SEAT BACK,RH
|
6901A354HA |
— | ||
|
75146R
|
75146R
6901A354HB
COVER,FR SEAT BACK,RH
|
6901A354HB |
— | ||
|
75146R
|
75146R
6901A354HC
COVER,FR SEAT BACK,RH
|
6901A354HC |
— | ||
|
75146R
|
75146R
6901A354XA
COVER,FR SEAT BACK,RH
|
6901A354XA |
— | ||
|
75146R
|
75146R
6901A356HA
COVER,FR SEAT BACK,RH
|
6901A356HA |
— | ||
|
75146R
|
75146R
6901A356HB
COVER,FR SEAT BACK,RH
|
6901A356HB |
— | ||
|
75146R
|
75146R
6901A356HC
COVER,FR SEAT BACK,RH
|
6901A356HC |
— | ||
|
75146R
|
75146R
6901A356XA
COVER,FR SEAT BACK,RH
|
6901A356XA |
— | ||
|
75146R
|
75146R
6901B100HA
COVER,FR SEAT BACK,RH
|
6901B100HA |
— | ||
|
75146R
|
75146R
6911A172XA
COVER,FR SEAT BACK,RH
|
6911A172XA |
— | ||
|
75146R
|
75146R
6911A172XC
COVER,FR SEAT BACK,RH
|
6911A172XC |
— | ||
|
75147R
|
75147R
6901A315HA COVER, FR SEAT CUSHION, LH |
6901A315HA |
US $350.90 |
||
|
75147R
|
75147R
6901A315HB
COVER,FR SEAT CUSHION,LH
|
6901A315HB |
— | ||
|
75147R
|
75147R
6901A315HD
COVER,FR SEAT CUSHION,LH
|
6901A315HD |
— | ||
|
75147R
|
75147R
6901A315XA COVER, FR SEAT CUSHION, LH |
6901A315XA |
US $350.90 |
||
|
75147R
|
75147R
6901A318HB
COVER,FR SEAT CUSHION,RH
|
6901A318HB |
— | ||
|
75147R
|
75147R
6911A168XA
COVER,FR SEAT CUSHION,LH
|
6911A168XA |
— | ||
|
75147R
|
75147R
6911A170XB COVER, FR SEAT CUSHION, RH |
6911A170XB |
US $873.60 |
||
|
75147R
|
75147R
6911A170XC
COVER,FR SEAT CUSHION,RH
|
6911A170XC |
— | ||
|
75147R
|
75147R
6911A236HA
COVER,FR SEAT CUSHION,RH
|
6911A236HA |
— | ||
|
75147R
|
75147R
6911A236HB
COVER,FR SEAT CUSHION,RH
|
6911A236HB |
— | ||
|
75147R
|
75147R
6911A236HC
COVER,FR SEAT CUSHION,RH
|
6911A236HC |
— | ||
|
75147R
|
75147R
6911A236XA
COVER,FR SEAT CUSHION,RH
|
6911A236XA |
— | ||
|
75151R
|
75151R
MN166636XA COVER, FR SEAT HINGE, RH |
MN166636XA |
US $55.50 |
||
|
75153R
|
75153R
6977A012XA COVER, FR SEAT SIDE SHIELD, RH |
6977A012XA |
US $59.20 |
||
|
75153R
|
75153R
MN148694XA
COVER,FR SEAT SIDE SHIELD,RH
|
MN148694XA |
— | ||
|
75165
|
75165
MN166635 DAMPER, FR SEAT BACK |
MN166635 |
US $2.07 |
||
|
75175
|
75175
MN148711HA GUIDE, FR SEAT HEADRESTW/lock |
MN148711HA |
US $9.62 |
||
|
75175
|
75175
MN148712HA GUIDE, FR SEAT HEADRESTW/o lock |
MN148712HA |
US $9.62 |
||
|
75177
|
75177
6971A005HC
HEADREST,FR SEAT
|
6971A005HC |
— | ||
|
75177
|
75177
6971A020XA
HEADREST,FR SEAT
|
6971A020XA |
— | ||
|
75177
|
75177
6971A021XA HEADREST, RR SEAT |
6971A021XA |
US $208.68 |
||
|
75177
|
75177
6971A021XB
HEADREST,RR SEAT
|
6971A021XB |
— | ||
|
75177
|
75177
MN166663HD HEADREST, FR SEAT |
MN166663HD |
US $208.68 |
||
|
75177
|
75177
MN166663XD HEADREST, FR SEAT |
MN166663XD |
US $208.68 |
||
|
75199B
|
75199B
MR306602XA COVER, FR SEAT ANCHOR, RR |
MR306602XA |
US $7.25 |
||
|
75199C
|
75199C
MR306600XA COVER, FR SEAT ANCHOR, RR |
MR306600XA |
US $5.77 |
||
|
75206R
|
75206R
MN179984 PANEL, FR SEAT BACK, LH |
MN179984 |
US $37 |
||
|
75214
|
75214
MN164258 PROTECTOR, FR SEAT FRAME |
MN164258 |
US $2.96 |
||
|
75301R
|
75301R
MN166605XA TRAY, FR SEAT BACK, LH |
MN166605XA |
US $120.62 |
||
|
75637R
|
75637R
MN148704XA LEVER, FR SEAT RECLINING ADJUSTER, RH |
MN148704XA |
US $6.22 |
||
|
75743R
|
75743R
MN173139XA
SEAT BELT,FR SEAT,INR LH
|
MN173139XA |
— | ||
|
75792
|
75792
MN134122 WASHER, FR SEAT BELT17.5 |
MN134122 |
US $1.78 |
||
|
75794
|
75794
MN148726 NUT, FR SEAT BELT |
MN148726 |
US $2.07 |
