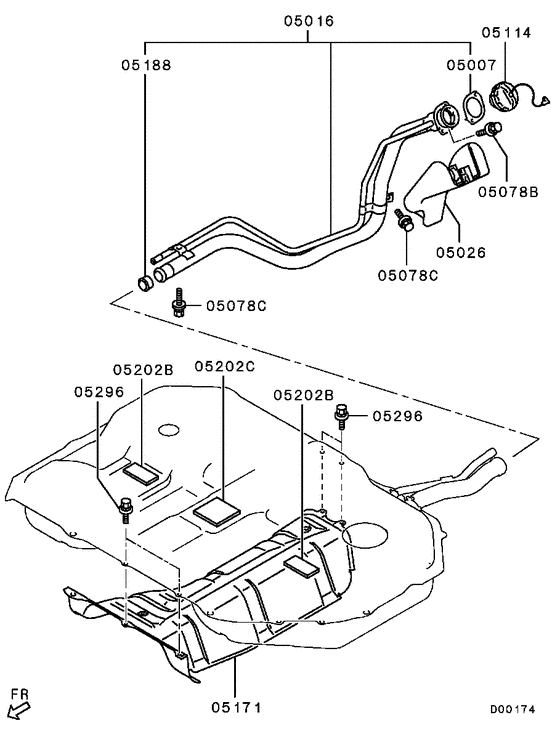

Fuel tank (FUEL FILLER PIPE,PROTECTOR,ETC.) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (7PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB554982
GASKET, FUEL FILLER NECK
|
MB554982 |
— | ||
| replacement | |||||
|
05007
|
05007
17236W000P 17236W000P |
17236W000P |
from US $2.94 |
||
|
05016
|
05016
MR599140 NECK, FUEL FILLER |
MR599140 |
US $162.79 |
||
|
05026
|
05026
MN139570
PROTECTOR,FUEL FILLER HOSE
|
MN139570 |
— | ||
|
05078B
|
05078B
MB400550 BOLT, FUEL LINEWasher assembled,6x16 |
MB400550 |
from US $1.68 |
||
|
05078C
|
05078C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
05114
|
05114
MN139460 CAP, FUEL TANK |
MN139460 |
from US $20.51 |
||
|
05171
|
05171
MN120240 PROTECTOR, FUEL TANK, LWR |
MN120240 |
US $99.16 |
||
|
05188
|
05188
MR135439 VALVE, FUEL FILLER NECK |
MR135439 |
from US $6.86 |
||
|
05202B
|
05202B
1705A091 PAD, FUEL TANK PROTECTOR |
1705A091 |
US $7.25 |
||
|
05202C
|
05202C
1705A092 PAD, FUEL TANK PROTECTOR |
1705A092 |
US $7.25 |
||
|
05296
|
05296
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
