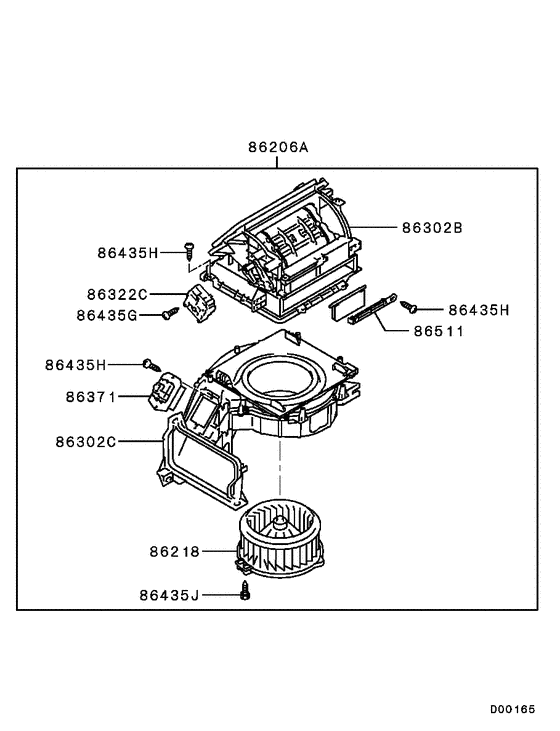

Heater unit & piping (BLOWER DISASSEMBLED PARTS) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (7PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86206A
|
86206A
7802A177
BLOWER ASSY,HEATER
|
7802A177 |
— | ||
|
86206A
|
86206A
MN166908 BLOWER ASSY,HEATER |
MN166908 |
US $528.53 |
||
|
86218
|
86218
7802A007
FAN & MOTOR KIT,HEATER
|
7802A007 |
— | ||
|
86302B
|
86302B
7802A076
CASE,HEATER BLOWER
|
7802A076 |
— | ||
|
86302B
|
86302B
7802A077
CASE,HEATER BLOWER
|
7802A077 |
— | ||
|
86302C
|
86302C
7802A012
CASE,HEATER BLOWER
|
7802A012 |
— | ||
|
86322C
|
86322C
7802A014
MOTOR,HEATER CONTROL
|
7802A014 |
— | ||
|
86371
|
86371
MN177554 TRANSISTOR, HEATER CONTROL |
MN177554 |
US $131.25 |
||
|
86435G
|
86435G
MR500217
SCREW, HEATER
|
MR500217 |
— | ||
|
86435H
|
86435H
MB899699 SCREW, A/C4x16 |
MB899699 |
US $0.64 |
||
|
86435J
|
86435J
MF205004 SCREW, HEATERMachine cone point,4x16 |
MF205004 |
US $1.63 |
