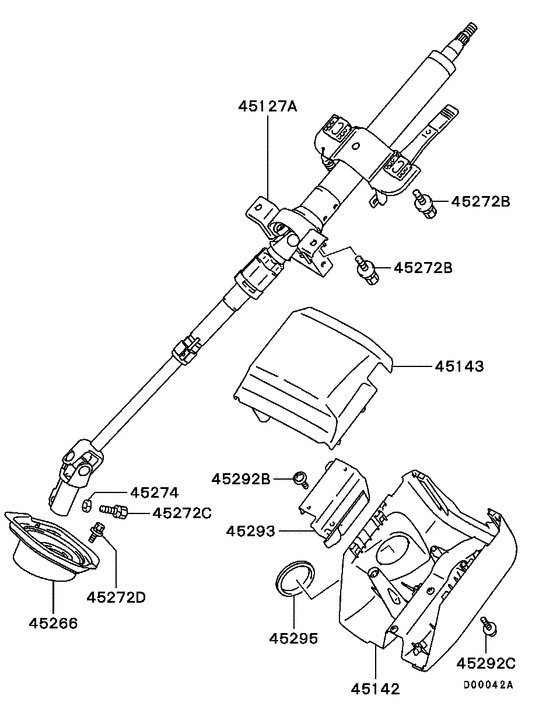

Steering column & cover Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2009
- Sales region
- EUR
- Note
- (7PERSONS),6FM/T LHD
- transmission
- 6FM/T
- grade
- 7PERSONS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45127A
|
45127A
4401A048
COLUMN ASSY,STEERING
|
4401A048 |
— | ||
| replacement | |||||
|
45127A
|
45127A
4401A093
COLUMN ASSY,STEERING
|
4401A093 |
— | ||
|
45127A
|
45127A
4401A093
COLUMN ASSY,STEERING
|
4401A093 |
— | ||
|
45142
|
45142
MN151566XA
COVER,STEERING COLUMN,LWR
|
MN151566XA |
— | ||
|
45143
|
45143
MR962265XA
COVER,STEERING COLUMN,UPR
|
MR962265XA |
— | ||
|
45266
|
45266
MR955646
GROMMET,STEERING COLUMN
|
MR955646 |
— | ||
|
45272B
|
45272B
MF243655 BOLT, ROCKER COVERWasher assembled,8x30 |
MF243655 |
from US $1.46 |
||
|
45272B
|
45272B
MS240127 BOLT, STEERING COLUMNWasher assembled,8x30 |
MS240127 |
from US $0.92 |
||
|
45272C
|
45272C
MB532373 BOLT, STEERING COLUMN8x28 |
MB532373 |
from US $2.50 |
||
|
45272D
|
45272D
MU000418 BOLT, STEERING COLUMNWasher assembled(18),6x20 |
MU000418 |
from US $1.27 |
||
|
45274
|
45274
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
45292B
|
45292B
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
45292C
|
45292C
MB409439 SCREW, STEERING COLUMN COVERTapping,5x20 |
MB409439 |
US $3.01 |
||
|
45293
|
45293
MN134454 PROTECTOR, STEERING COLUMN COVER |
MN134454 |
US $14.65 |
||
|
45295
|
45295
MB522123 GROMMET, STEERING COLUMN COVER48 |
MB522123 |
from US $2.30 |
||
