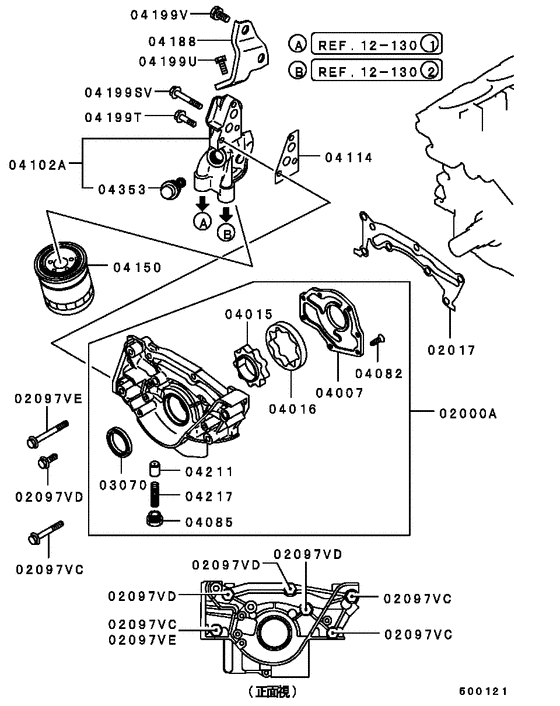

Oil pump & oil filter (W/TURBO) Diagram Mitsubishi GTO
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- GTO TWIN-TURBO MR SPECIAL VERSION,5FM/T
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- GTO TWIN- MR SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02000A
|
02000A
MD190982
CASE ASSY, CYLINDER BLOCK, FR
|
MD190982 |
— | ||
|
02017
|
02017
MD150135 GASKET, ENG OIL PUMP CASE |
MD150135 |
US $11.40 |
||
|
02017
|
02017
MD189778 GASKET, ENG FR CASE |
MD189778 |
from US $5.11 |
||
|
02097VC
|
02097VC
MF140037
BOLT, TIMING CHAIN CASE
|
MF140037 |
— | ||
|
02097VD
|
02097VD
MF140027 BOLT, RESISTORFlange,8x25 |
MF140027 |
from US $0.84 |
||
|
02097VE
|
02097VE
MF140040 BOLT, SECONDARY AIR SUPPLYFlange,8x75 |
MF140040 |
US $4.38 |
||
|
03070
|
03070
MD120700
OIL SEAL, CRANKSHAFT, FR
|
MD120700 |
— | ||
| replacement | |||||
|
03070
|
03070
MD372249 OIL SEAL, CRANKSHAFT, FR |
MD372249 |
from US $8.25 |
||
|
03070
|
03070
MD372249 OIL SEAL, CRANKSHAFT, FR |
MD372249 |
from US $8.25 |
||
|
04007
|
04007
MD148541
COVER, ENG OIL PUMP
|
MD148541 |
— | ||
|
04007
|
04007
MD185793 COVER, ENG OIL PUMP |
MD185793 |
US $91.02 |
||
|
04007
|
04007
MD358524 COVER, ENG OIL PUMP |
MD358524 |
from US $50.54 |
||
|
04015
|
04015
MD131335
GEAR, ENG OIL PUMP DRIVE
|
MD131335 |
— | ||
|
04016
|
04016
MD131336
GEAR, ENG OIL PUMP DRIVEN
|
MD131336 |
— | ||
|
04082
|
04082
MD141302 SCREW, ENG OIL PUMP INR |
MD141302 |
US $8.21 |
||
|
04085
|
04085
MD001404 PLUG, CYLINDER HEADScrew,d=18 |
MD001404 |
from US $4.95 |
||
|
04102A
|
04102A
MD146168
BRACKET ASSY, OIL FILTER
|
MD146168 |
— | ||
|
04114
|
04114
MD150134 GASKET, OIL FILTER BRACKET |
MD150134 |
US $4.88 |
||
|
04114
|
04114
MD189779 GASKET, OIL FILTER BRACKET |
MD189779 |
from US $3.20 |
||
|
04150
|
04150
MD136790
OIL FILTER
|
MD136790 |
— | ||
| replacement | |||||
|
04150
|
04150
MD352626 OIL FILTERCartridge type |
MD352626 |
from US $11.06 |
||
|
04150
|
04150
MD352626 OIL FILTERCartridge type |
MD352626 |
from US $11.06 |
||
|
04188
|
04188
MD140084 STAY, OIL FILTER |
MD140084 |
US $19.24 |
||
|
04199SV
|
04199SV
MF140236 BOLT, ROCKER COVERFlange,8x55 |
MF140236 |
from US $1.33 |
||
|
04199T
|
04199T
MF140229 BOLT, CYLINDER BLOCKFlange,8x30 |
MF140229 |
from US $1.11 |
||
|
04199U
|
04199U
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
04199V
|
04199V
MF302521
BOLT, ENG BREATHER
|
MF302521 |
— | ||
|
04211
|
04211
MD021563 PLUNGER, ENG OIL RELIEF |
MD021563 |
from US $2.63 |
||
|
04217
|
04217
MD174687 SPRING, ENG OIL RELIEF PLUNGER |
MD174687 |
US $4.24 |
||
|
04353
|
04353
MD041092
VALVE, ENG OIL COOLER BY-PASS
|
MD041092 |
— | ||
| replacement | |||||
|
04353
|
04353
MD356695 VALVE, ENG OIL COOLER BY-PASS |
MD356695 |
from US $36.70 |
||
|
04353
|
04353
MD356695 VALVE, ENG OIL COOLER BY-PASS |
MD356695 |
from US $36.70 |
||
|
12 130
|
Oil cooler tube
12 130
|
||||
