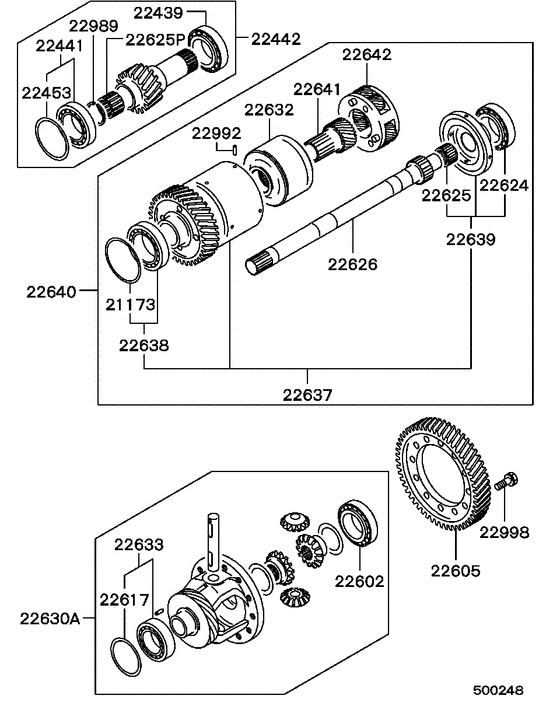

M/t gear (W/TURBO(DIFFERENTIAL,CENTER DIFFE)) Diagram Mitsubishi GTO
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- WHITE/BLACK PATROL-CAR(TWIN-TURBO),5FM/T
- drive
- 4WD/4WS
- transmission
- 5FM/T
- grade
- WHITE/BLACK PAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21173
|
21173
MR166790
SPACER, M/T CTR DIFF
|
MR166790 |
— | ||
|
22439
|
22439
MR166834 BEARING, M/T DIFF CASETaper roller |
MR166834 |
US $136.90 |
||
|
22441
|
22441
MR166756 BEARING KIT, M/T DIFF CASE |
MR166756 |
US $125.80 |
||
|
22442
|
22442
MR166754 SHAFT & BEARING, M/T FR OUTPUT |
MR166754 |
US $1,670.40 |
||
|
22442
|
22442
MR166878 SHAFT & BEARING, M/T FR OUTPUT |
MR166878 |
US $1,670.40 |
||
|
22453
|
22453
MR166789 SPACER, M/T FR OUTPUT SHAFT BEARING |
MR166789 |
US $34.78 |
||
|
22602
|
22602
MR166834 BEARING, M/T DIFF CASETaper roller |
MR166834 |
US $136.90 |
||
|
22605
|
22605
MR166838 GEAR, M/T DIFF DRIVE |
MR166838 |
US $962.42 |
||
|
22605
|
22605
MR166923 GEAR, M/T DIFF DRIVE |
MR166923 |
US $962.42 |
||
|
22617
|
22617
MR166731 SPACER SET, M/T DIFF CASE BEARING |
MR166731 |
US $34.78 |
||
|
22624
|
22624
MR166834 BEARING, M/T DIFF CASETaper roller |
MR166834 |
US $136.90 |
||
|
22625
|
22625
MR166832 BEARING, M/T CTR DIFF SHAFT |
MR166832 |
US $34.78 |
||
|
22625P
|
22625P
MR166835
BEARING, M/T CTR DIFF SHAFT
|
MR166835 |
— | ||
|
22626
|
22626
MR166922 SHAFT, M/T CTR DIFF |
MR166922 |
US $1,684.80 |
||
|
22630A
|
22630A
MR166755 DIFFERENTIAL & GEAR ASSY, M/T |
MR166755 |
US $3,297.60 |
||
|
22632
|
22632
MR166827 COUPLING UNIT, M/T CTR DIFF VISCOUS |
MR166827 |
US $4,420.80 |
||
|
22633
|
22633
MR166757 BEARING KIT, M/T DIFF CASE |
MR166757 |
US $125.80 |
||
|
22637
|
22637
MR166750 RING GEAR & COVER, M/T CTR DIFF |
MR166750 |
US $2,059.20 |
||
|
22638
|
22638
MR166752 BEARING KIT, M/T CTR DIFF CASE |
MR166752 |
US $223.48 |
||
|
22639
|
22639
MR166751 COVER & BEARING, M/T CTR DIFF RING GEAR |
MR166751 |
US $508.14 |
||
|
22640
|
22640
MR166749 DIFFERENTIAL & COUPLING, M/T CTR |
MR166749 |
US $9,475.20 |
||
|
22641
|
22641
MR166829 GEAR, M/T CTR DIFF SUN |
MR166829 |
US $419.33 |
||
|
22642
|
22642
MR166830 CARRIER, M/T CTR DIFF PLANETARY |
MR166830 |
US $1,454.40 |
||
|
22989
|
22989
MR166836 SNAP RING, M/T POWER TRAIN |
MR166836 |
US $20.72 |
||
|
22992
|
22992
MR166833 PIN, M/T POWER TRAIN |
MR166833 |
US $4.74 |
||
|
22998
|
22998
MR166837 BOLT, M/T POWER TRAIN |
MR166837 |
US $3.55 |
