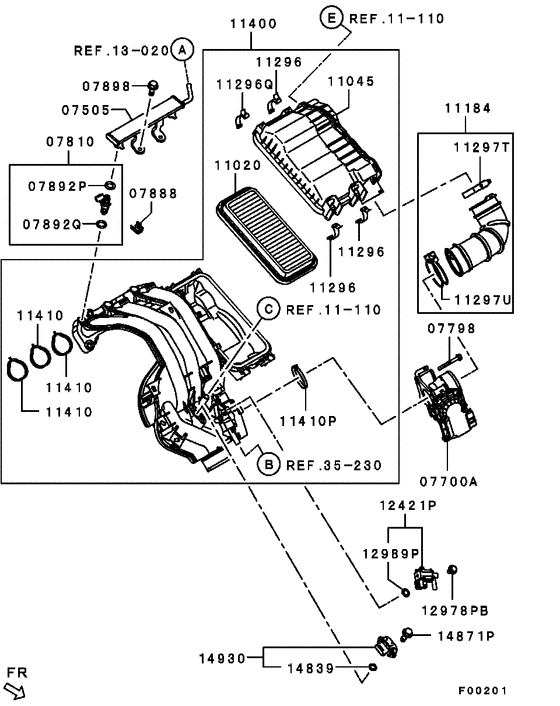

Inlet manifold (W/O TURBO (MANIFOLD ETC)) Diagram Mitsubishi I<AI>
- Year
- 2006 - 2007
- Sales region
- Japan
- Note
- 1ST ANNIV.EDITION(4WD/MPI),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- 1ST ANNIV.EDITI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
1465A100 PIPE, FUEL DELIVERY |
1465A100 |
US $84.36 |
||
|
07700A
|
07700A
1450A021 Throttle Body Assy |
1450A021 |
US $1,119.66 |
||
| replacement | |||||
|
07700A
|
07700A
1450A152 Throttle Body Assy |
1450A152 |
US $924.56 |
||
|
07798
|
07798
1450A103 BOLT, THROTTLE BODYFlange,6x50 |
1450A103 |
US $1.92 |
||
|
07810
|
07810
1465A036 INJECTOR KIT, FUEL |
1465A036 |
US $186.48 |
||
|
07810
|
07810
1465A037 INJECTOR KIT, FUEL |
1465A037 |
US $168.72 |
||
|
07888
|
07888
1465A093 SUPPORT, FUEL INJECTOR |
1465A093 |
US $1.78 |
||
|
07892P
|
07892P
1465A094 O-RING, FUEL INJECTOR3.51 |
1465A094 |
from US $2.40 |
||
|
07892Q
|
07892Q
1465A116
O-RING, FUEL INJECTOR
|
1465A116 |
— | ||
| replacement | |||||
|
07892Q
|
07892Q
1465A308 O-RING, FUEL INJECTOR3.05 |
1465A308 |
from US $3.16 |
||
|
07892Q
|
07892Q
1465A308 O-RING, FUEL INJECTOR3.05 |
1465A308 |
from US $3.16 |
||
|
07898
|
07898
1465A172 BOLT, FUEL INJECTORFlange,6x16 |
1465A172 |
US $1.48 |
||
|
11020
|
11020
1500A113 ELEMENT, AIR CLEANERNon woven |
1500A113 |
US $32.56 |
||
|
11045
|
11045
1500A112 COVER, AIR CLEANER |
1500A112 |
US $56.24 |
||
|
11045
|
11045
1500A114 COVER, AIR CLEANER |
1500A114 |
US $56.24 |
||
|
11184
|
11184
1505A152 DUCT, AIR CLEANER TO THROTTLE BODY |
1505A152 |
US $49.58 |
||
|
11296
|
11296
MR386119 CLAMP, AIR CLEANER INR |
MR386119 |
from US $3.71 |
||
|
11296Q
|
11296Q
1500A170 CLAMP, AIR CLEANER |
1500A170 |
US $3.55 |
||
|
11297T
|
11297T
1505A373 CLAMP, AIR CLEANER |
1505A373 |
US $6.22 |
||
|
11297U
|
11297U
1505A374 CLAMP, AIR CLEANER |
1505A374 |
US $4.59 |
||
|
11400
|
11400
1540A088 MANIFOLD, INLET |
1540A088 |
US $576.58 |
||
|
11400
|
11400
1540A091 MANIFOLD, INLET |
1540A091 |
US $476.11 |
||
|
11410
|
11410
1540A089 GASKET, INLET MANIFOLD |
1540A089 |
from US $2.61 |
||
|
11410P
|
11410P
1450A062 GASKET, INLET MANIFOLD |
1450A062 |
US $2.66 |
||
|
12421P
|
12421P
MN191002 VALVE, EMISSION SOLENOID |
MN191002 |
US $58.46 |
||
|
12978PB
|
12978PB
8657A034 BOLT, EMISSION CONTROL EQUIPFlange,5x10 |
8657A034 |
US $1.04 |
||
|
12989P
|
12989P
8657A023 O-RING, EMISSION VACUUM CONTROL EQUIP |
8657A023 |
US $1.92 |
||
|
14839
|
14839
1865A108 O-RING, ENG CONTROL PRESSURE SENSOR |
1865A108 |
US $2.96 |
||
|
14871P
|
14871P
1865A107 BOLT, ENG CONTROL PRESSURE SENSOR |
1865A107 |
US $1.04 |
||
|
14930
|
14930
1865A021 SENSOR, INLET MANIFOLD ABSOLUTE PRESSURE |
1865A021 |
US $210.16 |
||
|
14930
|
14930
1865A022 SENSOR, INLET MANIFOLD ABSOLUTE PRESSURE |
1865A022 |
US $210.16 |
||
|
