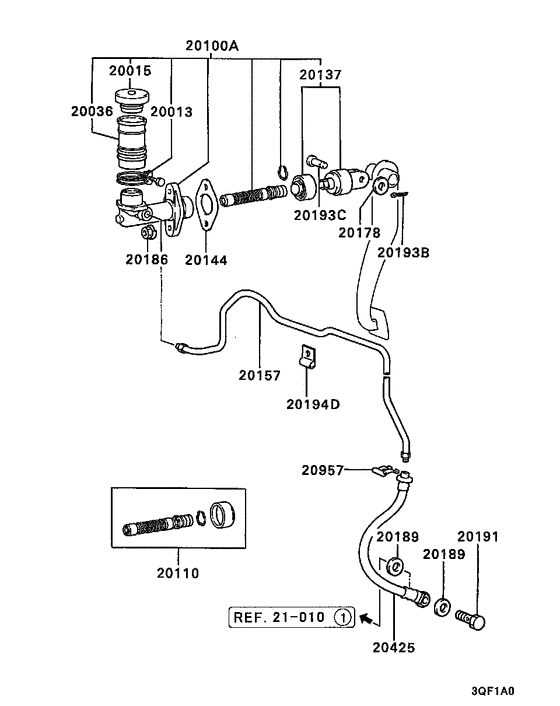

Clutch control (RHD) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1990 - 1993
- Sales region
- EUR
- Note
- CAB & CHASSIS,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- CAB & CHASSIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20013
|
20013
MB012155 BAND, CLUTCH FLUID RESERVOIR |
MB012155 |
US $6.02 |
||
|
20015
|
20015
MA143774
CAP, CLUTCH FLUID RESERVOIR
|
MA143774 |
— | ||
| replacement | |||||
|
20015
|
20015
MA161577
CAP, CLUTCH FLUID RESERVOIR
|
MA161577 |
— | ||
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $6.67 |
||
|
20036
|
20036
MA115416 RESERVOIR, CLUTCH FLUID |
MA115416 |
from US $9.85 |
||
|
20100A
|
20100A
MB012300
CYLINDER ASSY,CLUTCH MASTER
|
MB012300 |
— | ||
|
20100A
|
20100A
MB555138 CYLINDER ASSY, CLUTCH MASTER |
MB555138 |
US $185 |
||
| replacement | |||||
|
20100A
|
20100A
MR132298 CYLINDER ASSY, CLUTCH MASTER |
MR132298 |
from US $192.40 |
||
|
20110
|
20110
MB012161 CYLINDER KIT, CLUTCH MASTER |
MB012161 |
from US $74.56 |
||
|
20137
|
20137
MB012301 PUSH ROD, CLUTCH M/CYL |
MB012301 |
US $51.80 |
||
|
20144
|
20144
MB012077 SEAL, CLUTCH M/CYL |
MB012077 |
from US $1.48 |
||
|
20157
|
20157
MB012333
TUBE,CLUTCH M/CYL
|
MB012333 |
— | ||
|
20178
|
20178
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $0.78 |
||
|
20178
|
20178
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.68 |
||
|
20189
|
20189
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.19 |
||
|
20191
|
20191
MB012250 EYEBOLT, CLUTCH M/CYL10x20.5 |
MB012250 |
US $7.52 |
||
|
20191
|
20191
MB082326 EYEBOLT, RR AXLE BRAKE TUBE10x21 |
MB082326 |
from US $4.49 |
||
|
20193B
|
20193B
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
US $2.05 |
||
|
20193B
|
20193B
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.96 |
||
|
20193C
|
20193C
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $1.25 |
||
|
20194D
|
20194D
MC395345
CLIP, ENG IDLE CONTROL EQUIP
|
MC395345 |
— | ||
|
20425
|
20425
MB012253 HOSE, CLUTCH RELEASE CYLINDER335 |
MB012253 |
US $88.80 |
||
|
20425
|
20425
MR151513 HOSE, CLUTCH RELEASE CYLINDER335 |
MR151513 |
from US $34.26 |
||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $2.05 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
