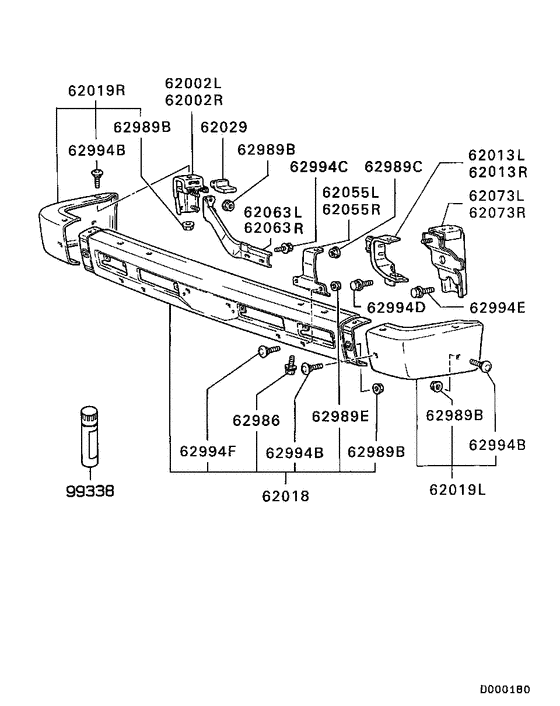

Front bumper & support (-9209.3) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1991 - 1997
- Sales region
- Japan
- Note
- S(DOUBLE CAB),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62002L
|
62002L
MB422387 BRACKET, FR BUMPER SIDE, LH |
MB422387 |
US $27.36 |
||
|
62002R
|
62002R
MB422388
BRACKET, FR BUMPER SIDE, RH
|
MB422388 |
— | ||
|
62013L
|
62013L
MB422301
STAY, FR BUMPER, LH
|
MB422301 |
— | ||
|
62013L
|
62013L
MB846477 BRACKET, FR BUMPER SUPPORT, LH |
MB846477 |
US $34.78 |
||
|
62013R
|
62013R
MB422302 STAY, FR BUMPER, RH |
MB422302 |
US $30.34 |
||
|
62013R
|
62013R
MB846478 BRACKET, FR BUMPER SUPPORT, RH |
MB846478 |
US $34.78 |
||
|
62018
|
62018
MB527124
BUMPER KIT, FR CTR
|
MB527124 |
— | ||
|
62019L
|
62019L
MB527129 BUMPER KIT, FR CORNER, LH |
MB527129 |
US $101.23 |
||
|
62019R
|
62019R
MB527130
BUMPER KIT, FR CORNER, RH
|
MB527130 |
— | ||
|
62029
|
62029
MB422467
CUSHION, FR BUMPER
|
MB422467 |
— | ||
|
62055L
|
62055L
MB422393 REINFORCEMENT, FR BUMPER SIDE, LH |
MB422393 |
US $17.78 |
||
|
62055L
|
62055L
MB900019 REINFORCEMENT, FR BUMPER SIDE, LH |
MB900019 |
US $56.24 |
||
|
62055R
|
62055R
MB422394
REINFORCEMENT, FR BUMPER SIDE, RH
|
MB422394 |
— | ||
|
62055R
|
62055R
MB900020 REINFORCEMENT, FR BUMPER SIDE, RH |
MB900020 |
US $56.24 |
||
|
62063L
|
62063L
MB422311 STAY, FR BUMPER, LH |
MB422311 |
US $54.76 |
||
|
62063L
|
62063L
MB900023 STAY, FR BUMPER, LH |
MB900023 |
US $48.56 |
||
|
62063R
|
62063R
MB422312
STAY, FR BUMPER, RH
|
MB422312 |
— | ||
|
62063R
|
62063R
MB900024 STAY, FR BUMPER, RH |
MB900024 |
US $48.56 |
||
|
62073L
|
62073L
MB422335 SUPPORT, FR BUMPER SIDE, LH |
MB422335 |
US $90.97 |
||
|
62073L
|
62073L
MB846473 SUPPORT, FR BUMPER SIDE, LH |
MB846473 |
US $99.16 |
||
|
62073R
|
62073R
MB422336 SUPPORT, FR BUMPER SIDE, RH |
MB422336 |
US $96.94 |
||
|
62073R
|
62073R
MB846474 SUPPORT, FR BUMPER SIDE, RH |
MB846474 |
US $99.16 |
||
|
62986
|
62986
MB121914 SCREW, FR BUMPERWasher assembled,6x14 |
MB121914 |
US $2.46 |
||
|
62989B
|
62989B
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.68 |
||
|
62989C
|
62989C
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
62989E
|
62989E
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.38 |
||
|
62994B
|
62994B
MB120978 BOLT, FR BUMPERCup square neck,8x20 |
MB120978 |
from US $1.64 |
||
|
62994B
|
62994B
MB737640
BOLT, FR BUMPER
|
MB737640 |
— | ||
|
62994C
|
62994C
MF247891 BOLT, ENG FR MOUNTINGWasher assembled,8x20 |
MF247891 |
US $2.19 |
||
|
62994D
|
62994D
MS240182 BOLT, FR BUMPERWasher assembled,10x30 |
MS240182 |
US $3.26 |
||
|
62994E
|
62994E
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
US $4.38 |
||
|
62994F
|
62994F
MB120975 BOLT, FR BUMPERCup square neck,6x16 |
MB120975 |
US $3.26 |
||
|
62994F
|
62994F
MB737635
BOLT, FR BUMPER
|
MB737635 |
— | ||
|
99338
|
99338
MZ101810
TOUCH-UP PAINT (Cannot supply)
|
MZ101810 |
— | ||
|
99338
|
99338
MZ101814 TOUCH-UP PAINT |
MZ101814 |
US $10.36 |
||
|
99338
|
99338
MZ101876 TOUCH-UP PAINT |
MZ101876 |
US $10.36 |
||
|
99338
|
99338
MZ101894 TOUCH-UP PAINT |
MZ101894 |
US $10.36 |
||
|
99338
|
99338
MZ101925 TOUCH-UP PAINT |
MZ101925 |
US $10.36 |
||
|
99338
|
99338
MZ101927 TOUCH-UP PAINT |
MZ101927 |
US $9.58 |
||
|
99338
|
99338
MZ101971 TOUCH-UP PAINT (Only within Japan)Поставка только по Японии |
MZ101971 |
US $10.36 |
||
|
99338
|
99338
MZ101979 TOUCH-UP PAINT |
MZ101979 |
US $10.36 |
