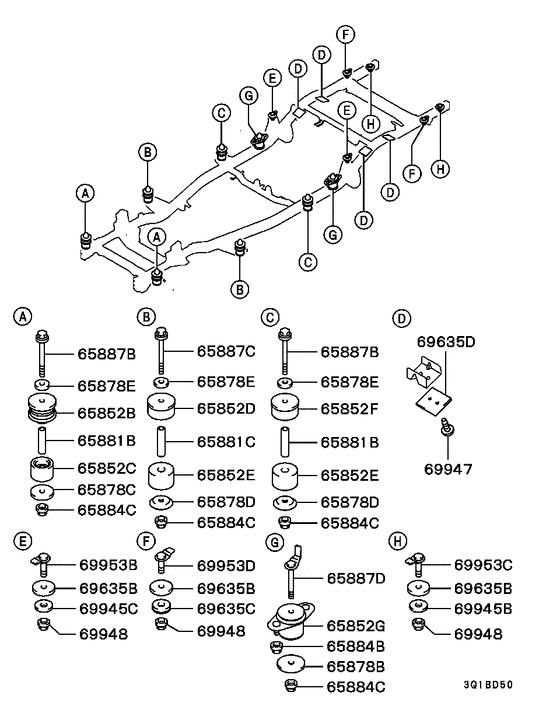

Body mounting (CLUB CAB) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65852B
|
65852B
MR180824 CUSHION, BODY MOUNTING |
MR180824 |
from US $10.12 |
||
|
65852C
|
65852C
MB513336 CUSHION, BODY MOUNTING |
MB513336 |
from US $3.88 |
||
|
65852D
|
65852D
MB513387 CUSHION, BODY MOUNTING |
MB513387 |
from US $10.40 |
||
|
65852E
|
65852E
MB513386 CUSHION, BODY MOUNTING |
MB513386 |
from US $4.17 |
||
|
65852G
|
65852G
MR143000 CUSHION, BODY MOUNTING |
MR143000 |
US $32.83 |
||
|
65878B
|
65878B
MB675980 WASHER, BODY MOUNTINGHole(11) |
MB675980 |
from US $6.84 |
||
|
65878C
|
65878C
MB115178 WASHER, BODY MOUNTINGPlain,11 |
MB115178 |
from US $1.72 |
||
|
65878D
|
65878D
MB513385 WASHER, BODY MOUNTING11 |
MB513385 |
US $4.65 |
||
|
65878E
|
65878E
MT144256 WASHER, BODY MOUNTINGPlain,10.5 |
MT144256 |
from US $2.44 |
||
|
65881B
|
65881B
MB115176 SPACER, BODY MOUNTING16x63 |
MB115176 |
from US $1.91 |
||
|
65881C
|
65881C
MB513384 SPACER, BODY MOUNTING16x68 |
MB513384 |
from US $2.85 |
||
|
65884B
|
65884B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
65884C
|
65884C
MB288653 NUT, ENG RR MOUNTINGFlange self locking,10 |
MB288653 |
from US $1.42 |
||
|
65887B
|
65887B
MB115515 BOLT, BODY MOUNTING10x90 |
MB115515 |
from US $1.54 |
||
|
65887C
|
65887C
MR144985 BOLT, BODY MOUNTING10x100 |
MR144985 |
from US $3.14 |
||
|
65887D
|
65887D
MB675588 BOLT, BODY MOUNTING |
MB675588 |
from US $6.57 |
||
|
69635B
|
69635B
MB115766 SHIM, RR BODY MOUNTING12x8 |
MB115766 |
from US $3.12 |
||
|
69635C
|
69635C
MB513458 SHIM, RR BODY MOUNTING8 |
MB513458 |
US $7.11 |
||
|
69635D
|
69635D
MB115909 SHIM, BODY MOUNTING55x60x6 |
MB115909 |
from US $6.84 |
||
|
69945B
|
69945B
MB151949 WASHER, RR BODY MOUNTINGPlain,3.2 |
MB151949 |
US $3.15 |
||
|
69945C
|
69945C
MF450274 WASHER,ENG RR MOUNTING |
MF450274 |
US $2.74 |
||
|
69947
|
69947
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
69948
|
69948
MB288654 NUT, ENG RR MOUNTINGSelf lock (flange |
MB288654 |
from US $4.25 |
||
|
69953B
|
69953B
MB513727 BOLT,RR BODY MOUNTING |
MB513727 |
from US $4.91 |
||
|
69953C
|
69953C
MB513456 BOLT, RR BODY MOUNTING12x44 |
MB513456 |
US $3.69 |
||
|
69953D
|
69953D
MB437962 BOLT, RR BODY MOUNTING12x44 |
MB437962 |
US $4.51 |
