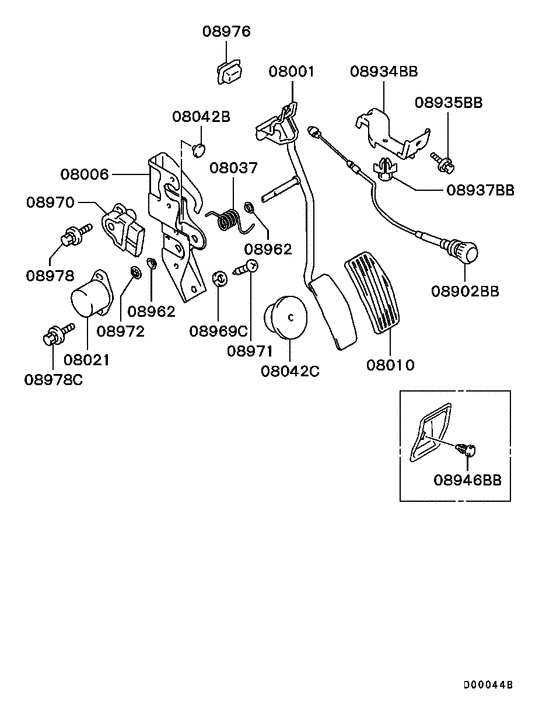

Engine control (RHD..0107.1- ELEC/CONT TYPE) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08001
|
08001
MR113854 ARM, ACCEL PEDAL |
MR113854 |
US $30.34 |
||
|
08001
|
08001
MR527813
ARM,ACCEL PEDAL
|
MR527813 |
— | ||
|
08006
|
08006
MB011772 BRACKET, ACCEL PEDAL ARM |
MB011772 |
US $11.25 |
||
|
08006
|
08006
MR527811
BRACKET,ACCEL PEDAL ARM
|
MR527811 |
— | ||
|
08010
|
08010
MA152266 PAD, ACCEL PEDAL |
MA152266 |
from US $6.40 |
||
|
08021
|
08021
MR510740 DAMPER, ACCEL PEDAL ARM |
MR510740 |
US $59.20 |
||
|
08037
|
08037
MB011387 SPRING, ACCEL PEDAL ARM RETURN |
MB011387 |
from US $2.20 |
||
|
08037
|
08037
MR527817
SPRING,ACCEL PEDAL ARM RETURN
|
MR527817 |
— | ||
|
08042B
|
08042B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
08042C
|
08042C
MR527100 STOPPER, ACCEL PEDAL ARM |
MR527100 |
from US $4.93 |
||
|
08902BB
|
08902BB
MN123242
CABLE,CHOKE
|
MN123242 |
— | ||
|
08902BB
|
08902BB
MR568227
CABLE,THROTTLE
|
MR568227 |
— | ||
|
08934BB
|
08934BB
MR958255
BRACKET,ENG IDLE CONTROL EQUIP
|
MR958255 |
— | ||
|
08935BB
|
08935BB
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
08935BB
|
08935BB
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
08937BB
|
08937BB
MB011808 CLIP, FUEL FILLER LID LOCKING6 |
MB011808 |
US $2.74 |
||
|
08946BB
|
08946BB
MR732128
PLUG,ENG IDLE CONTROL EQUIP
|
MR732128 |
— | ||
|
08962
|
08962
MR307081 BUSHING, ACCEL CONTROL EQUIP |
MR307081 |
US $2.87 |
||
|
08969C
|
08969C
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
08970
|
08970
MR578791 SENSOR, ACCEL |
MR578791 |
US $162.80 |
||
|
08971
|
08971
MF205069 SCREW, ACCEL CONTROL EQUIPMachine cone point,8x20 |
MF205069 |
US $2.37 |
||
|
08972
|
08972
MR307082 SNAP RING, ACCEL CONTROL EQUIP |
MR307082 |
US $2.05 |
||
|
08976
|
08976
MR267895 GROMMET, ACCEL CONTROL EQUIP |
MR267895 |
US $2.52 |
||
|
08978
|
08978
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
08978
|
08978
MF243603 BOLT, ACCEL CONTROL EQUIPWasher assembled,5x14 |
MF243603 |
US $1.18 |
||
|
08978C
|
08978C
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
