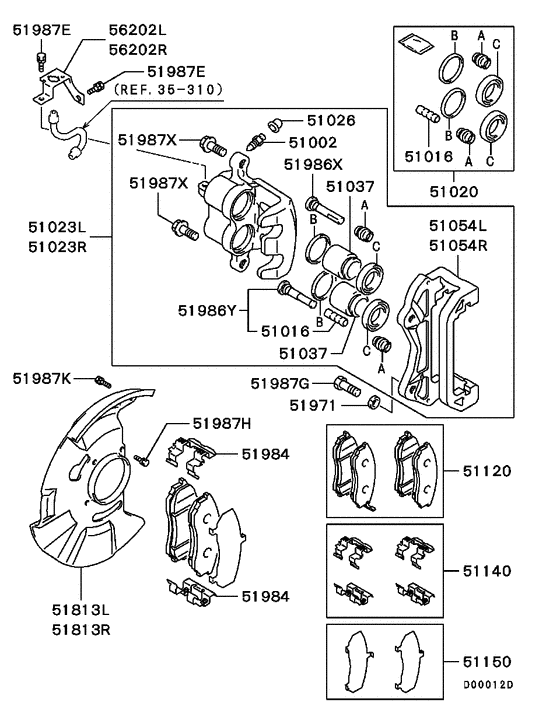

Front wheel brake (2POT 16") Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51002
|
51002
MB928290 BLEEDER, FR BRAKE CALIPER |
MB928290 |
from US $8.23 |
||
|
51002
|
51002
MR527546 BLEEDER, FR BRAKE CALIPER |
MR527546 |
from US $7.37 |
||
|
51016
|
51016
MB618215 BUSHING, FR BRAKE |
MB618215 |
from US $3.41 |
||
|
51016
|
51016
MR527538
BUSHING,FR BRAKE
|
MR527538 |
— | ||
|
51020
|
51020
MB699707
SEAL KIT, FR BRAKE CALIPER
|
MB699707 |
— | ||
| replacement | |||||
|
51020
|
51020
4605B980 SEAL KITFR BRK CALP PSTN |
4605B980 |
from US $32.25 |
||
|
51020
|
51020
MB857840
SEAL KIT, FR BRAKE CALIPER
|
MB857840 |
— | ||
| replacement | |||||
|
51020
|
51020
4605B977 Seal kit,fr brake caliper |
4605B977 |
from US $30.87 |
||
|
51020
|
51020
MR527979
SEAL KIT, FR BRAKE CALIPER
|
MR527979 |
— | ||
| replacement | |||||
|
51020
|
51020
4605B628 SEAL KITFR BRK CALP PSTN |
4605B628 |
from US $23.40 |
||
|
51023L
|
51023L
MB858404 CALIPER KIT, FR BRAKE, LH |
MB858404 |
US $647.61 |
||
|
51023L
|
51023L
MR205258 CALIPER KIT, FR BRAKE, LH |
MR205258 |
US $492.13 |
||
|
51023L
|
51023L
MR510891
CALIPER KIT,FR BRAKE,LH
|
MR510891 |
— | ||
|
51023L
|
51023L
MR527977
CALIPER KIT,FR BRAKE,LH
|
MR527977 |
— | ||
|
51023R
|
51023R
MB858405 CALIPER KIT, FR BRAKE, RH |
MB858405 |
US $680.06 |
||
|
51023R
|
51023R
MR205259 CALIPER KIT, FR BRAKE, RH |
MR205259 |
US $492.13 |
||
|
51023R
|
51023R
MR510892
CALIPER KIT,FR BRAKE,RH
|
MR510892 |
— | ||
|
51023R
|
51023R
MR527978
CALIPER KIT,FR BRAKE,RH
|
MR527978 |
— | ||
|
51026
|
51026
4610A017 CAP, RR BRAKE |
4610A017 |
from US $2.42 |
||
|
51026
|
51026
MR527547 CAP, FR BRAKE CALIPER BLEEDER |
MR527547 |
from US $3.33 |
||
|
51026
|
51026
MV026287 CAP, GEARSHIFT LINK |
MV026287 |
from US $2.11 |
||
|
51037
|
51037
MB699692 PISTON, FR BRAKE CALIPER |
MB699692 |
from US $39.10 |
||
|
51037
|
51037
MB857837 PISTON, FR BRAKE CALIPER |
MB857837 |
from US $39.33 |
||
|
51037
|
51037
MR527545 PISTON, FR BRAKE CALIPER |
MR527545 |
from US $41.03 |
||
|
51054L
|
51054L
MB858394 SUPPORT, FR BRAKE CALIPER, LH |
MB858394 |
from US $55.05 |
||
|
51054L
|
51054L
MR205266 SUPPORT, FR BRAKE CALIPER, LH |
MR205266 |
US $86.58 |
||
|
51054L
|
51054L
MR510515
SUPPORT,FR BRAKE CALIPER,LH
|
MR510515 |
— | ||
|
51054L
|
51054L
MR527533
SUPPORT,FR BRAKE CALIPER,LH
|
MR527533 |
— | ||
|
51054R
|
51054R
MB858395 SUPPORT, FR BRAKE CALIPER, RH |
MB858395 |
from US $91.81 |
||
|
51054R
|
51054R
MR205267 SUPPORT, FR BRAKE CALIPER, RH |
MR205267 |
US $86.58 |
||
|
51054R
|
51054R
MR510516
SUPPORT,FR BRAKE CALIPER,RH
|
MR510516 |
— | ||
|
51054R
|
51054R
MR527534
SUPPORT,FR BRAKE CALIPER,RH
|
MR527534 |
— | ||
|
51120
|
51120
MR389546 PAD SET, FR BRAKE |
MR389546 |
from US $106.84 |
||
|
51120
|
51120
MR389547 PAD SET, FR BRAKE |
MR389547 |
from US $125.03 |
||
|
51120
|
51120
MR510680
PAD SET,FR BRAKE
|
MR510680 |
— | ||
|
51120
|
51120
MR527550 PAD SET,FR BRAKE |
MR527550 |
US $68.78 |
||
|
51140
|
51140
MR389599 CLIP SET, FR BRAKE |
MR389599 |
from US $16.98 |
||
|
51140
|
51140
MR389601 CLIP SET, FR BRAKE |
MR389601 |
from US $21.68 |
||
|
51140
|
51140
MR527551 CLIP SET,FR BRAKE |
MR527551 |
US $24.49 |
||
|
51150
|
51150
MR389651 SHIM SET, FR BRAKE |
MR389651 |
from US $6.61 |
||
|
51150
|
51150
MR389653 SHIM SET, FR BRAKE |
MR389653 |
US $9.77 |
||
|
51150
|
51150
MR527552 SHIM SET,FR BRAKE |
MR527552 |
US $10.96 |
||
|
51813L
|
51813L
MN102091
COVER,FR BRAKE,LH
|
MN102091 |
— | ||
|
51813L
|
51813L
MR128304
COVER, FR BRAKE, LH
|
MR128304 |
— | ||
| replacement | |||||
|
51813L
|
51813L
MR249345 COVER, FR BRAKE, LH |
MR249345 |
from US $55.91 |
||
|
51813R
|
51813R
MN102092
COVER,FR BRAKE,RH
|
MN102092 |
— | ||
|
51813R
|
51813R
MR128305
COVER, FR BRAKE, RH
|
MR128305 |
— | ||
| replacement | |||||
|
51813R
|
51813R
MR249346 COVER, FR BRAKE, RH |
MR249346 |
from US $60.80 |
||
|
51971
|
51971
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.62 |
||
|
51984
|
51984
MB858398 CLIP, FR BRAKE |
MB858398 |
from US $7.70 |
||
|
51984
|
51984
MR205124 CLIP, FR BRAKE |
MR205124 |
US $5.61 |
||
|
51984
|
51984
MR527541
CLIP,FR BRAKE
|
MR527541 |
— | ||
|
51986X
|
51986X
MB618227 PIN, FR BRAKE |
MB618227 |
from US $11.68 |
||
|
51986X
|
51986X
MR527536 PIN,FR BRAKE |
MR527536 |
US $15.89 |
||
|
51986Y
|
51986Y
MB618228 PIN, FR BRAKE |
MB618228 |
from US $9.54 |
||
|
51986Y
|
51986Y
MR527537 PIN,FR BRAKE |
MR527537 |
US $18.27 |
||
|
51987E
|
51987E
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
51987G
|
51987G
MB082323 BOLT, FR SUSP STRUT BAR12x35 |
MB082323 |
from US $2.63 |
||
|
51987H
|
51987H
MS240037 BOLT, FUEL RETURN LINEWasher assembled,6x12 |
MS240037 |
US $2.60 |
||
|
51987K
|
51987K
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
||
|
51987K
|
51987K
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
51987X
|
51987X
MR527540 BOLT, FR BRAKEM8 |
MR527540 |
from US $3.12 |
||
|
56202L
|
56202L
MB668156 BRACKET, FR BRAKE HOSE, LH |
MB668156 |
US $11.08 |
||
|
56202L
|
56202L
MR128436 BRACKET, BRAKE HOSE, LH |
MR128436 |
US $7.84 |
||
|
56202R
|
56202R
MB668157 BRACKET, FR BRAKE HOSE, RH |
MB668157 |
US $11.08 |
||
|
56202R
|
56202R
MR128437 BRACKET, BRAKE HOSE, RH |
MR128437 |
from US $7.84 |
||
|
