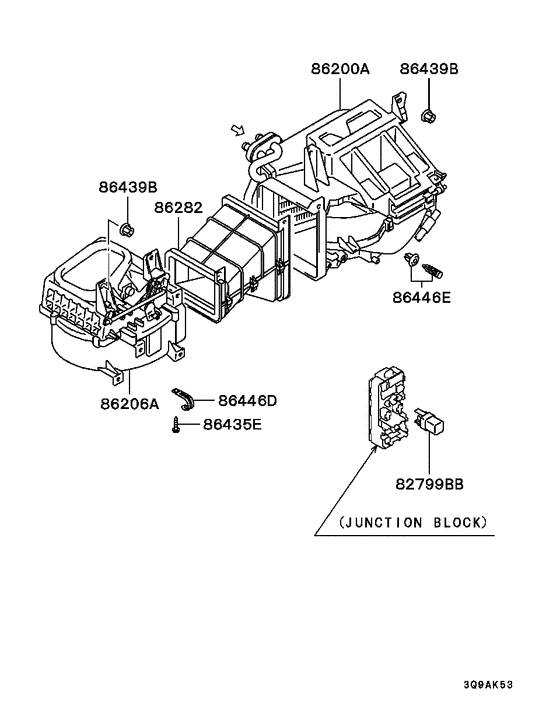

Heater unit & piping (INSTALLING PARTS..RHD) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82799BB
|
82799BB
MB629081
RELAY
|
MB629081 |
— | ||
|
82799BB
|
82799BB
MR524999 RELAY, DEFOGGERG8jn-1a2t-r-mm04 |
MR524999 |
from US $38.99 |
||
|
86200A
|
86200A
MN151985
HEATER ASSY
|
MN151985 |
— | ||
|
86200A
|
86200A
MR147216 HEATER ASSY |
MR147216 |
US $464.46 |
||
|
86206A
|
86206A
MB813584 BLOWER ASSY, HEATER |
MB813584 |
US $495.04 |
||
|
86206A
|
86206A
MR315829 BLOWER ASSY, HEATER |
MR315829 |
US $409.14 |
||
|
86206A
|
86206A
MR568559 BLOWER ASSY, HEATER |
MR568559 |
US $347.98 |
||
|
86282
|
86282
MR146300
DUCT,HEATER AIR INTAKE
|
MR146300 |
— | ||
|
86435E
|
86435E
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.20 |
||
|
86439B
|
86439B
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
86446D
|
86446D
MS470067 CLAMP, CARB INRL=45 |
MS470067 |
US $2.37 |
||
|
86446E
|
86446E
MB476821 CLIP, SPLASH SHIELD |
MB476821 |
from US $1.17 |
