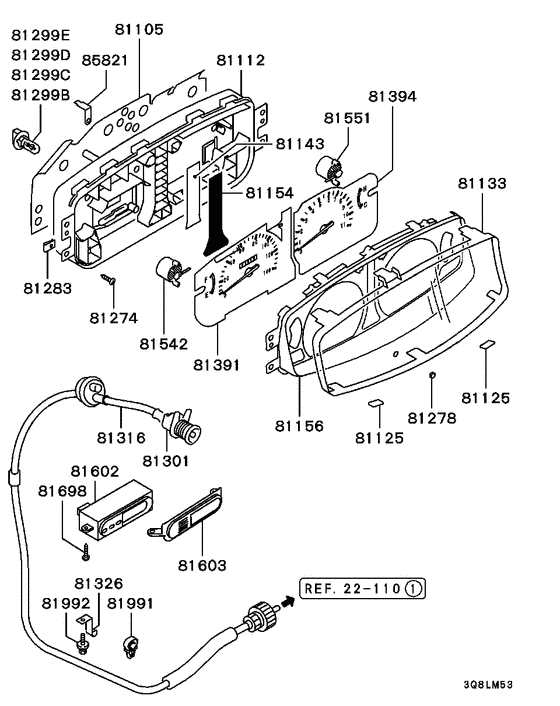

Meter,gauge & clock (COMBINATION METER) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
MR206021 BOARD, INSTRUMENT PANEL PRINTED CIRCUIT |
MR206021 |
US $60.68 |
||
|
81105
|
81105
MR206022
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR206022 |
— | ||
|
81105
|
81105
MR330620
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR330620 |
— | ||
|
81105
|
81105
MR951383
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR951383 |
— | ||
|
81112
|
81112
MR175519 CASE, COMBINATION METER |
MR175519 |
US $71.78 |
||
|
81112
|
81112
MR330613 CASE, COMBINATION METER |
MR330613 |
US $54.02 |
||
|
81125
|
81125
MB386187 CUSHION, INSTRUMENT PANEL METER |
MB386187 |
US $4 |
||
|
81133
|
81133
MR167470 GLASS, COMBINATION METER |
MR167470 |
US $50.32 |
||
|
81156
|
81156
MR175520 PLATE, COMBINATION METER WINDOW |
MR175520 |
US $37 |
||
|
81274
|
81274
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81274
|
81274
MF453034 SCREW, ENG CONTROL EQUIPTapping,5x20 |
MF453034 |
from US $1.63 |
||
|
81278
|
81278
MB281465 GROMMET, INSTRUMENT PANEL METER |
MB281465 |
US $3.26 |
||
|
81278
|
81278
MR206025
GROMMET,INSTRUMENT PANEL METER
|
MR206025 |
— | ||
|
81283
|
81283
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.46 |
||
|
81299B
|
81299B
MR167724 BULB, INSTRUMENT PANEL METER12v-1.4w |
MR167724 |
US $4.92 |
||
|
81299C
|
81299C
MR167722 BULB, INSTRUMENT PANEL METER12v-3.4w |
MR167722 |
US $4.44 |
||
|
81299C
|
81299C
MR250872 BULB, INSTRUMENT PANEL METERT-10 |
MR250872 |
from US $3.70 |
||
|
81299D
|
81299D
MR250873 BULB, INSTRUMENT PANEL METERT-5 |
MR250873 |
US $3.70 |
||
|
81299E
|
81299E
MR250874 BULB, INSTRUMENT PANEL METER |
MR250874 |
US $3.70 |
||
|
81301
|
81301
MB326171 ADAPTER, SPEEDOMETER CABLE |
MB326171 |
from US $1.42 |
||
|
81316
|
81316
MR117587 CABLE, SPEEDOMETER1995 |
MR117587 |
from US $56.09 |
||
|
81326
|
81326
MB332593
CLAMP, SPEEDOMETER CABLE
|
MB332593 |
— | ||
|
81391
|
81391
MR206006
Speedometer
|
MR206006 |
— | ||
|
81391
|
81391
MR250542
Speedometer
|
MR250542 |
— | ||
|
81391
|
81391
MR298450
Speedometer
|
MR298450 |
— | ||
|
81391
|
81391
MR951374
Speedometer
|
MR951374 |
— | ||
|
81391
|
81391
MR951375
Speedometer
|
MR951375 |
— | ||
|
81394
|
81394
MR206016
TACHOMETER
|
MR206016 |
— | ||
|
81394
|
81394
MR951381
TACHOMETER
|
MR951381 |
— | ||
|
81542
|
81542
MR167471 GAUGE, FUEL |
MR167471 |
US $93.98 |
||
|
81551
|
81551
MR206020 GAUGE, WATER TEMPERATURE |
MR206020 |
US $63.64 |
||
|
81602
|
81602
MB803900
CLOCK, DIGITAL
|
MB803900 |
— | ||
|
81698
|
81698
MB409438 SCREW, STEERING COLUMN COVERTapping,5x16 |
MB409438 |
from US $3.49 |
||
|
81991
|
81991
MB070453 CLIP, SPEEDOMETER CABLE8 |
MB070453 |
US $3.69 |
||
|
81992
|
81992
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
85821
|
85821
MR206026 TERMINAL, WIRING |
MR206026 |
US $2.37 |
||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
