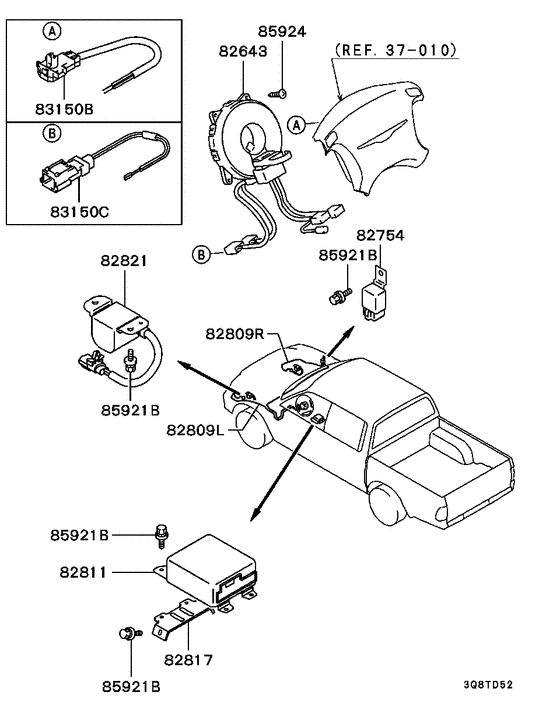

Relay,flasher & sensor (SRS CONTROL UNIT,SENSOR(-9803.3)) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82643
|
82643
MB953169
SPRING, AIR BAG SENSOR
|
MB953169 |
— | ||
|
82754
|
82754
MB627895 RELAYG8ms-1a24t-r-n20 |
MB627895 |
US $23.94 |
||
|
82809L
|
82809L
MR260522 CABLE, AIR BAG SENSOR, LH |
MR260522 |
US $99.16 |
||
|
82809R
|
82809R
MR260521 CABLE, AIR BAG SENSOR, RH |
MR260521 |
US $99.16 |
||
|
82811
|
82811
MB875327 CONTROL UNIT, SRS DIAGNOSISX6t37171 |
MB875327 |
US $1,598.40 |
||
|
82811
|
82811
MR400743
CONTROL UNIT,SRS DIAGNOSIS
|
MR400743 |
— | ||
|
82811
|
82811
MR522939
CONTROL UNIT,SRS DIAGNOSIS
|
MR522939 |
— | ||
|
82811
|
82811
MR522940
CONTROL UNIT,SRS DIAGNOSIS
|
MR522940 |
— | ||
| replacement | |||||
|
82811
|
82811
8635A195
CONTROL UNIT,SRS DIAGNOSIS
|
8635A195 |
— | ||
|
82817
|
82817
MR207415 BRACKET, AIR BAG CONTROL UNIT |
MR207415 |
US $16.28 |
||
|
82817
|
82817
MR268869 BRACKET, AIR BAG CONTROL UNIT |
MR268869 |
US $11.84 |
||
|
82817
|
82817
MR564386 BRACKET,AIR BAG CONTROL UNIT |
MR564386 |
US $11.84 |
||
|
82821
|
82821
MR158561 SENSOR, AIR BAG187200-0441 |
MR158561 |
US $253.08 |
||
|
82821
|
82821
MR522942 SENSOR, AIR BAG |
MR522942 |
US $192.40 |
||
|
82821
|
82821
MR587739
SENSOR,AIR BAG
|
MR587739 |
— | ||
|
83150B
|
83150B
MR203491
HARNESS, SRS AIR BAG ADAPTER
|
MR203491 |
— | ||
|
83150C
|
83150C
MB686560
HARNESS, SRS AIR BAG ADAPTER
|
MB686560 |
— | ||
| replacement | |||||
|
83150C
|
83150C
MB686560V HARNESS, SRS AIR BAG ADAPTER |
MB686560V |
US $53.28 |
||
|
85921B
|
85921B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
85924
|
85924
MF456805 SCREW, CONSOLE METERTapping,3x12 |
MF456805 |
US $2.19 |
||
|
