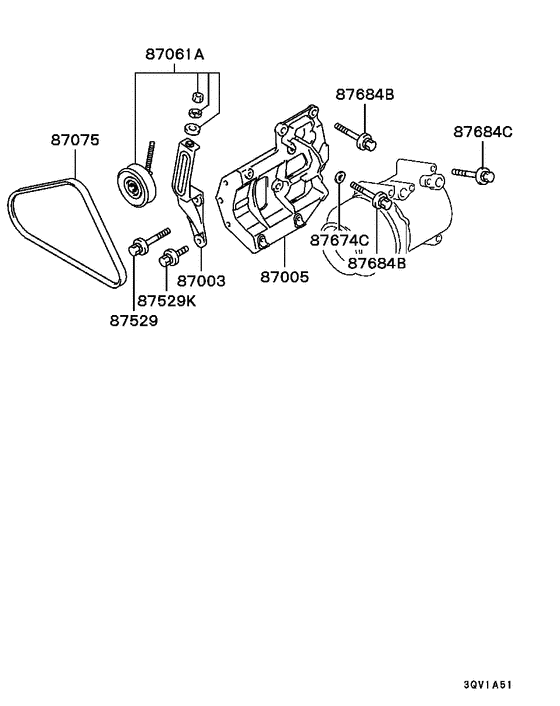

A/c cond, piping(auto,full:a) (A/C COMPRESSOR BRACKET) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 1999
- Sales region
- MMTH
- Note
- DOUBLE CAB(WIDE FENDER),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- DOUBLE CAB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87003
|
87003
MR148154
BRACKET, A/C COMPRESSOR TENSION PULLEY
|
MR148154 |
— | ||
|
87005
|
87005
MR240425
BRACKET, A/C COMPRESSOR
|
MR240425 |
— | ||
|
87061A
|
87061A
MB609133 PULLEY ASSY, A/C COMPRESSOR TENSION |
MB609133 |
US $90.97 |
||
|
87075
|
87075
MB167063
BELT, A/C
|
MB167063 |
— | ||
|
87529
|
87529
MB262156
BOLT, A/C COMPRESSOR
|
MB262156 |
— | ||
|
87529K
|
87529K
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
87674C
|
87674C
MF450886 WASHER, FUEL TANKTooth,10 |
MF450886 |
US $1.92 |
||
|
87684B
|
87684B
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
87684C
|
87684C
MS241086 BOLT, A/C COMPRESSORWasher assembled,8x95 |
MS241086 |
US $4.88 |
