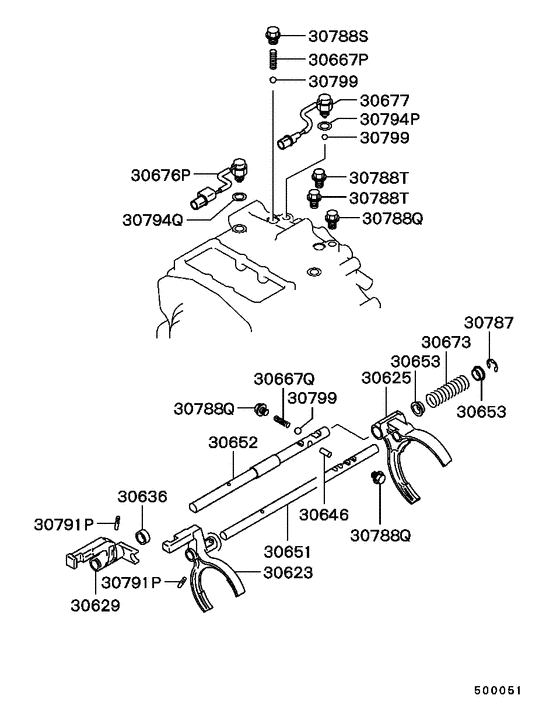

Transfer floor shift control (A/T (SHIFT CONTROL)) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 1999
- Sales region
- MMTH
- Note
- DOUBLE CAB(WIDE FENDER),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- DOUBLE CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30623
|
30623
MB886515 FORK, T/F H-L GEARSHIFT |
MB886515 |
US $126.54 |
||
|
30625
|
30625
MR263610 FORK, T/F GEARSHIFT 2WD & 4WD |
MR263610 |
US $122.10 |
||
|
30629
|
30629
MB886383 LUG, T/F 2WD & 4WD GEARSHIFT RAIL |
MB886383 |
US $109.52 |
||
|
30636
|
30636
MR222657 PIECE, T/F GEARSHIFT 2WD & 4WD RAIL DISTANCE |
MR222657 |
from US $5.69 |
||
|
30646
|
30646
MD738449 PLUNGER, T/F GEARSHIFT RAIL INTERLOCK |
MD738449 |
US $5.34 |
||
|
30651
|
30651
MB886734 RAIL, T/F H-L GEARSHIFT |
MB886734 |
US $91.76 |
||
|
30652
|
30652
MD738429 RAIL, T/F H-L GEARSHIFT |
MD738429 |
US $74.74 |
||
|
30653
|
30653
MD734301 RETAINER, T/F GEARSHIFT RAIL SPRING |
MD734301 |
US $7.55 |
||
|
30667P
|
30667P
MB886535 SPRING, T/F GEARSHIFT POPPET |
MB886535 |
US $2.37 |
||
|
30667Q
|
30667Q
MD738451 SPRING, T/F GEARSHIFT POPPET |
MD738451 |
from US $1.33 |
||
|
30673
|
30673
MD736869 SPRING, T/F 2WD & 4WD SHIFT FORK RETURN |
MD736869 |
US $2.37 |
||
|
30676P
|
30676P
MB811555 SWITCH, T/F GEARSHIFT 4WD LAMP |
MB811555 |
from US $45.24 |
||
|
30677
|
30677
MB886427 SWITCH, T/F H-L GEARSHIFT LAMP |
MB886427 |
from US $59.03 |
||
|
30787
|
30787
MF522409 SNAP RING, CLUTCH CONTROL EQUIP12 |
MF522409 |
US $2.60 |
||
|
30788Q
|
30788Q
MD724091 PLUG, M/T GEARSHIFT EQUIPFlange,12x10 |
MD724091 |
US $4.29 |
||
|
30788S
|
30788S
MD704218 PLUG, M/T GEARSHIFT EQUIPScrew |
MD704218 |
US $5.77 |
||
|
30788T
|
30788T
MD700627 PLUG, M/T CASE14x10 |
MD700627 |
from US $3.51 |
||
|
30791P
|
30791P
MD701722 SPRING PIN, M/T CLUTCH CONTROL EQUIP5.2x26 |
MD701722 |
US $3.01 |
||
|
30794P
|
30794P
MF660034 GASKET, CYLINDER BLOCKD=12 |
MF660034 |
from US $0.25 |
||
|
30794Q
|
30794Q
MF660035 GASKET, ENG OIL PAN DRAIN PLUGD=14 |
MF660035 |
from US $0.66 |
||
|
30799
|
30799
MF540010 BALL, CAMSHAFT5/16 |
MF540010 |
from US $1.31 |
