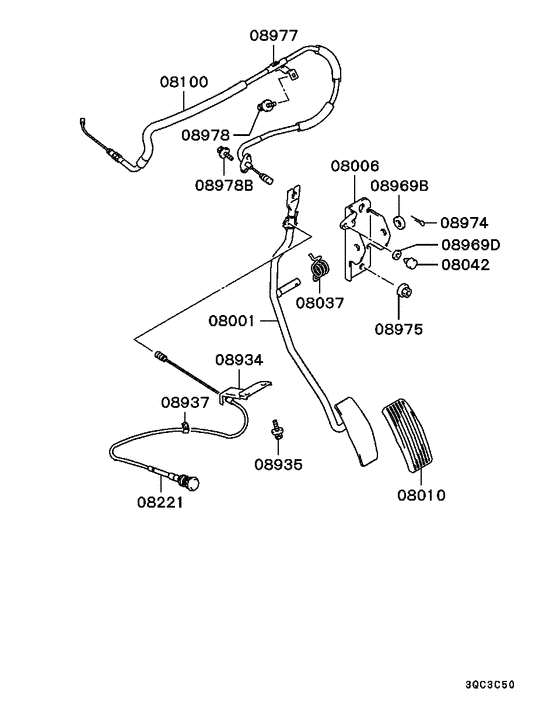

Engine control (LHD..-0106.3) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 2001 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(DOUBLE CAB,TURBO,EURO2),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08001
|
08001
MR133257
ARM,ACCEL PEDAL
|
MR133257 |
— | ||
|
08006
|
08006
MR133259 BRACKET,ACCEL PEDAL ARM |
MR133259 |
US $14.21 |
||
|
08010
|
08010
MA152266 PAD, ACCEL PEDAL |
MA152266 |
from US $6.40 |
||
|
08037
|
08037
MB011387 SPRING, ACCEL PEDAL ARM RETURN |
MB011387 |
from US $2.20 |
||
|
08042
|
08042
MA152079 STOPPER, ACCEL PEDAL ARM |
MA152079 |
US $3.56 |
||
|
08100
|
08100
MR133135 CABLE,ACCEL |
MR133135 |
US $41.98 |
||
|
08935
|
08935
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
08969B
|
08969B
MA152064 WASHER, WATER SEPARATOR INR |
MA152064 |
US $4.24 |
||
|
08969D
|
08969D
MF450004 WASHER, ROCKER COVERPlain,6 |
MF450004 |
from US $0.82 |
||
|
08974
|
08974
MF472067 PIN, WATER SEPARATOR INRSplit,3x20 |
MF472067 |
from US $0.45 |
||
|
08975
|
08975
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
08977
|
08977
MR133285 CLIP, ACCEL CONTROL EQUIP |
MR133285 |
US $6.81 |
||
|
08978
|
08978
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
08978
|
08978
MF243603 BOLT, ACCEL CONTROL EQUIPWasher assembled,5x14 |
MF243603 |
US $1.18 |
||
|
08978B
|
08978B
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
