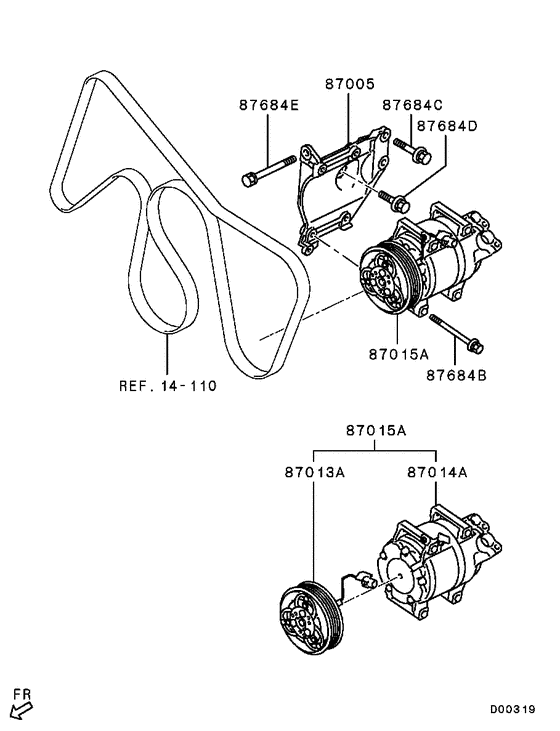

A/c condenser, piping (COMPRESSOR,BRACKET) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- -
- Sales region
- MMTH
- Note
- DOUBLE CAB(WIDE FENDER),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- DOUBLE CAB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87005
|
87005
MN123628 BRACKET, A/C COMPRESSOR |
MN123628 |
US $205.72 |
||
|
87013A
|
87013A
7813A155 CLUTCH ASSY, A/C COMPRESSOR |
7813A155 |
from US $269.50 |
||
|
87014A
|
87014A
7813A154 COMPRESSOR ASSY, A/C |
7813A154 |
from US $986.67 |
||
|
87015A
|
87015A
MN123624 COMPRESSOR & CLUTCH ASSY, A/C |
MN123624 |
US $1,454.40 |
||
|
87684B
|
87684B
MF244870 BOLT, A/C COMPRESSORWasher assembled,8x100 |
MF244870 |
from US $2.05 |
||
|
87684C
|
87684C
MF303372 BOLT, ENG OIL COOLERWasher assembled,10x55 |
MF303372 |
US $2.60 |
||
|
87684D
|
87684D
MF303369 BOLT, OIL FILTERWasher assembled,10x40 |
MF303369 |
US $2.19 |
||
|
87684E
|
87684E
MF300860 BOLT, WATER PUMPWasher assembled,10x100 |
MF300860 |
US $4.10 |
||
|
14 110
|
Water pump
14 110
|
||||
|
14 110
|
Water pump
14 110
|
||||
