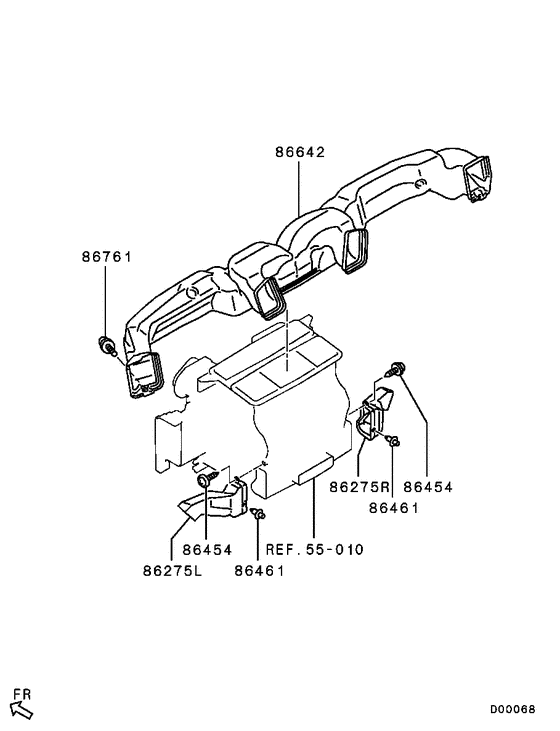

Ventilation & duct (FRONT) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- -
- Sales region
- MMTH
- Note
- DOUBLE CAB(WIDE FENDER),4FA/T
- drive
- 4WD
- transmission
- 4FA/T
- grade
- DOUBLE CAB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86275L
|
86275L
MN123579 DUCT, FOOT HEATER, LH |
MN123579 |
from US $11.40 |
||
|
86275R
|
86275R
MN123578 DUCT, FOOT HEATER, RH |
MN123578 |
US $11.40 |
||
|
86454
|
86454
MS452441 SCREW, HEATERTapping,5x12 |
MS452441 |
US $1.04 |
||
|
86461
|
86461
MB619582 CLIP, FR DOOR TRIM |
MB619582 |
from US $1.37 |
||
|
86642
|
86642
7830A105 DUCT, VENTILATOR AIR DISTRIBUTION |
7830A105 |
US $54.76 |
||
|
