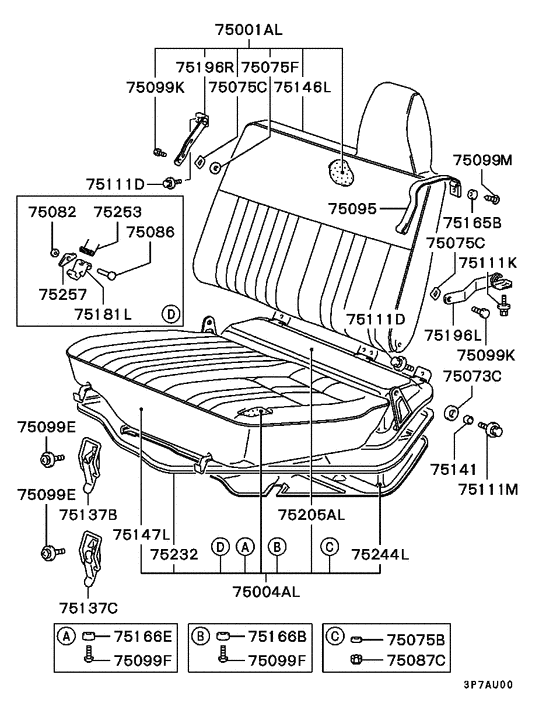

Front seat (LH..GASOLINE(RHD)) Diagram Mitsubishi L300
- Year
- 1986 - 1994
- Sales region
- EUR
- Note
- CAB&CHASSIS,5CM/T RHD
- drive
- 2WD
- transmission
- 5CM/T
- grade
- CAB&CHASSIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB716145
BACK ASSY,FR SEAT,LH
|
MB716145 |
— | ||
|
75001AL
|
75001AL
MB786827
BACK ASSY,FR SEAT,LH
|
MB786827 |
— | ||
|
75001AL
|
75001AL
MB789807
BACK ASSY,FR SEAT,LH
|
MB789807 |
— | ||
|
75004AL
|
75004AL
MB716144
CUSHION ASSY,FR SEAT,LH
|
MB716144 |
— | ||
|
75004AL
|
75004AL
MB786826
CUSHION ASSY,FR SEAT,LH
|
MB786826 |
— | ||
|
75073C
|
75073C
MB172523 SPACER, FR SEAT |
MB172523 |
US $2.66 |
||
|
75075B
|
75075B
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
75075C
|
75075C
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
75075F
|
75075F
MB173839 WASHER, FR SEAT |
MB173839 |
US $2.66 |
||
|
75082
|
75082
MS522042 SNAP RING,FR SEAT |
MS522042 |
US $1.92 |
||
|
75086
|
75086
MB190383
PIN,BODY LID
|
MB190383 |
— | ||
|
75087C
|
75087C
MB347410 NUT, FR SEATSelf locking,6 |
MB347410 |
US $2.87 |
||
|
75095
|
75095
MB172508 BAND, FR SEAT |
MB172508 |
US $13.62 |
||
|
75099E
|
75099E
MF351030 SCREW, ROCKER COVERWasher assembled,6x12 |
MF351030 |
US $3.97 |
||
|
75099F
|
75099F
MF456469 SCREW, EMERGENCY FLARETapping,5x8 |
MF456469 |
US $2.74 |
||
|
75099K
|
75099K
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75099M
|
75099M
MF455020 SCREW, RADIATOR GRILLETapping,4x20 |
MF455020 |
US $1.92 |
||
|
75111D
|
75111D
MF243651 BOLT, ENG RR MOUNTINGWasher assembled,8x20 |
MF243651 |
from US $0.92 |
||
|
75111K
|
75111K
MS240909 BOLT, ENG OIL COOLERWasher assembled,8x16 |
MS240909 |
US $2.07 |
||
|
75111M
|
75111M
MS240922 BOLT, STEPWasher assembled,8x25 |
MS240922 |
US $2.37 |
||
|
75137C
|
75137C
MB190672 CLAMP, FR SEAT |
MB190672 |
US $10.66 |
||
|
75141
|
75141
MB172522 COLLAR, FR SEAT |
MB172522 |
US $3.55 |
||
|
75146L
|
75146L
MB558947
COVER,FR SEAT BACK,LH
|
MB558947 |
— | ||
|
75146L
|
75146L
MB786830
COVER,FR SEAT BACK,LH
|
MB786830 |
— | ||
|
75146L
|
75146L
MB789810
COVER,FR SEAT BACK,LH
|
MB789810 |
— | ||
|
75147L
|
75147L
MB558936
COVER,FR SEAT CUSHION,LH
|
MB558936 |
— | ||
|
75147L
|
75147L
MB786829
COVER,FR SEAT CUSHION,LH
|
MB786829 |
— | ||
|
75165B
|
75165B
MB172506 DAMPER, FR SEAT BACK |
MB172506 |
US $3.55 |
||
|
75165B
|
75165B
MB602849 DAMPER, FR SEAT BACK |
MB602849 |
US $5.62 |
||
|
75166B
|
75166B
MB173858 DAMPER, FR SEAT BACK |
MB173858 |
US $2.96 |
||
|
75166E
|
75166E
MB165597 DAMPER, FR SEAT CUSHION |
MB165597 |
US $3.69 |
||
|
75181L
|
75181L
MB190381
HOOK,FR SEAT,LH
|
MB190381 |
— | ||
|
75196R
|
75196R
MB172504 LINK, FR SEAT BACK, RH |
MB172504 |
US $16.28 |
||
|
75205AL
|
75205AL
MB557460
PAN ASSY,FR SEAT CUSHION,LH
|
MB557460 |
— | ||
|
75232
|
75232
MB165596
SEAL, FR SEAT PAN
|
MB165596 |
— | ||
|
75244L
|
75244L
MB158840 SILENCER, FR SEAT PAN |
MB158840 |
US $97.68 |
||
|
75253
|
75253
MB190382
SPRING,FR SEAT HOOK
|
MB190382 |
— | ||
|
75257
|
75257
MB191796
STOPPER,FR SEAT HOOK
|
MB191796 |
— |
