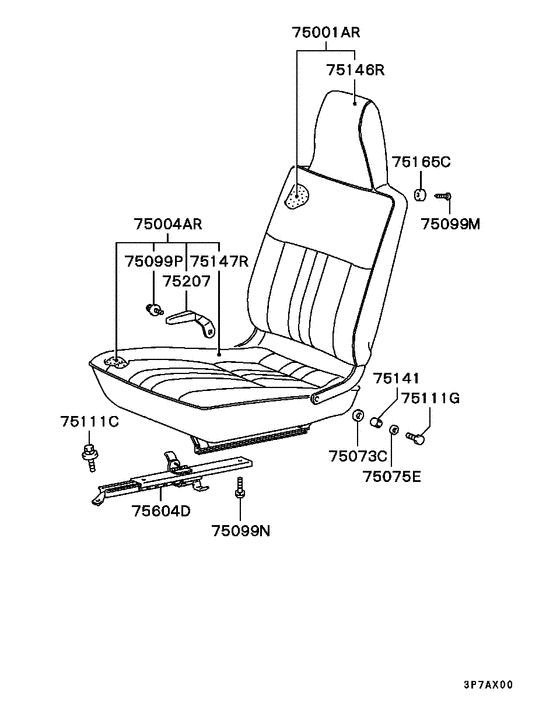

Front seat (RH..GASOLINE(RHD)) Diagram Mitsubishi L300
- Year
- 1986 - 1994
- Sales region
- EUR
- Note
- CAB&CHASSIS,5CM/T RHD
- drive
- 2WD
- transmission
- 5CM/T
- grade
- CAB&CHASSIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB716135
BACK ASSY,FR SEAT,RH
|
MB716135 |
— | ||
|
75001AR
|
75001AR
MB786806
BACK ASSY,FR SEAT,RH
|
MB786806 |
— | ||
|
75001AR
|
75001AR
MB789814
BACK ASSY,FR SEAT,RH
|
MB789814 |
— | ||
|
75004AR
|
75004AR
MB716134
CUSHION ASSY,FR SEAT,RH
|
MB716134 |
— | ||
|
75004AR
|
75004AR
MB786805
CUSHION ASSY,FR SEAT,RH
|
MB786805 |
— | ||
|
75073C
|
75073C
MB172523 SPACER, FR SEAT |
MB172523 |
US $2.66 |
||
|
75075E
|
75075E
MF450065 WASHER, BACK DOOR LOCKINGPlain,8 |
MF450065 |
US $1.78 |
||
|
75099M
|
75099M
MF455020 SCREW, RADIATOR GRILLETapping,4x20 |
MF455020 |
US $1.92 |
||
|
75099N
|
75099N
MF350095 SCREW, RR BODYWasher assembled,8x16 |
MF350095 |
US $2.37 |
||
|
75099P
|
75099P
MF351008 SCREW, FUEL TANKWasher assembled,5x12 |
MF351008 |
from US $0.98 |
||
|
75111C
|
75111C
MS240909 BOLT, ENG OIL COOLERWasher assembled,8x16 |
MS240909 |
US $2.07 |
||
|
75111G
|
75111G
MB190378 BOLT, FR SEAT8x25 |
MB190378 |
US $4.14 |
||
|
75141
|
75141
MB172522 COLLAR, FR SEAT |
MB172522 |
US $3.55 |
||
|
75146R
|
75146R
MB558946
COVER,FR SEAT BACK,RH
|
MB558946 |
— | ||
|
75146R
|
75146R
MB786808
COVER,FR SEAT BACK,RH
|
MB786808 |
— | ||
|
75146R
|
75146R
MB789816
COVER,FR SEAT BACK,RH
|
MB789816 |
— | ||
|
75147R
|
75147R
MB558943
COVER,FR SEAT CUSHION,RH
|
MB558943 |
— | ||
|
75147R
|
75147R
MB786807
COVER,FR SEAT CUSHION,RH
|
MB786807 |
— | ||
|
75165C
|
75165C
MA436892 DAMPER, FR SEAT CUSHION |
MA436892 |
US $3.11 |
||
|
75165C
|
75165C
MB173858 DAMPER, FR SEAT BACK |
MB173858 |
US $2.96 |
||
|
75165C
|
75165C
MB602848 DAMPER, FR SEAT BACK |
MB602848 |
US $5.18 |
||
|
75207
|
75207
MB172529 LEVER, FR SEAT |
MB172529 |
US $11.22 |
||
|
75604D
|
75604D
MB172520 ADJUSTER, FR SEAT SLIDE |
MB172520 |
US $75.48 |
