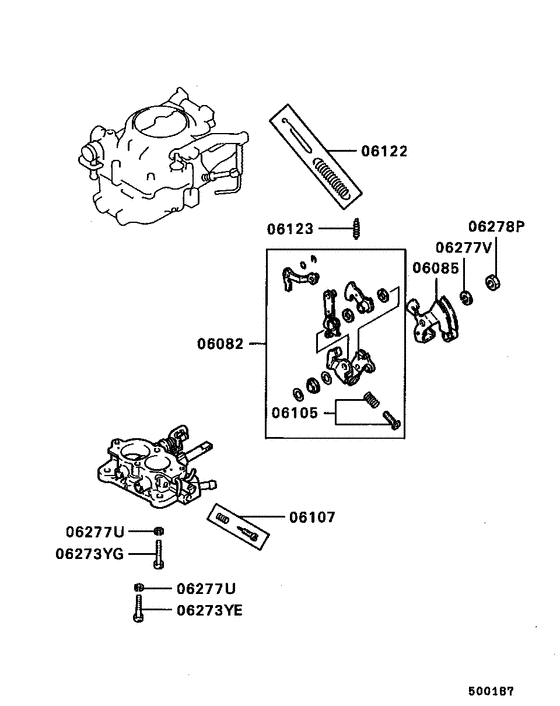

Carburetor (ALL (INNER PARTS LWR)) Diagram Mitsubishi L300
- Year
- -
- Sales region
- EUR
- Note
- DX(3DOOR),4CM/T RHD
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06082
|
06082
MD601972
LEVER KIT,CARB THROTTLE CONTROL LINK
|
MD601972 |
— | ||
|
06085
|
06085
MD615091 LEVER, CARB THROTTLE |
MD615091 |
US $54.76 |
||
|
06105
|
06105
MD601973 ADJUSTING SCREW KIT,FAST IDLE |
MD601973 |
US $7.84 |
||
|
06107
|
06107
MD601616 SCREW,CARB INR |
MD601616 |
US $7.10 |
||
|
06122
|
06122
MD615051 SPRING KIT, CARB THROTTLE RETURN |
MD615051 |
US $15.54 |
||
|
06123
|
06123
MD615052 SPRING, CARB SECONDARY |
MD615052 |
US $8.73 |
||
|
06273YE
|
06273YE
MD601293 SCREW, CARB INR |
MD601293 |
US $4 |
||
|
06273YG
|
06273YG
MD601294 SCREW,CARB INR |
MD601294 |
US $2.96 |
||
|
06277U
|
06277U
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
06277V
|
06277V
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06278P
|
06278P
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
