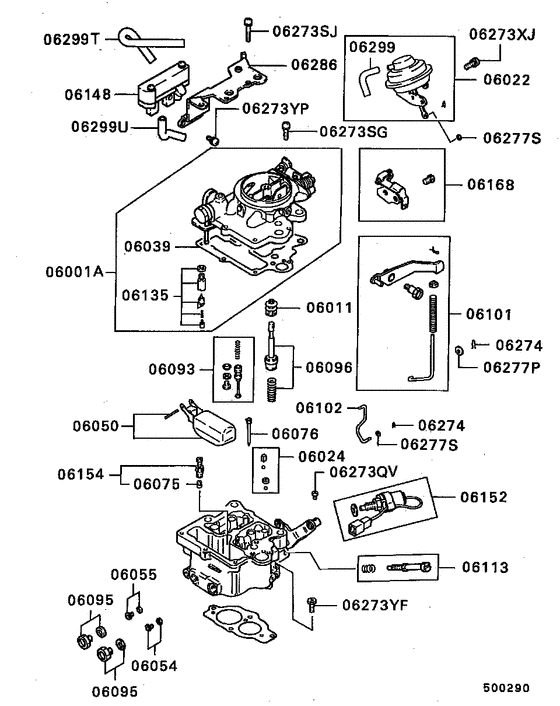

Carburetor (ALL (INNER PARTS UPR)) Diagram Mitsubishi L300
- Year
- -
- Sales region
- EUR
- Note
- DX(3DOOR),4CM/T RHD
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06001A
|
06001A
MD615115
AIR HORN ASSY,CARB
|
MD615115 |
— | ||
|
06011
|
06011
MD615066 BOOT, CARB ACCEL PUMP PLUNGER |
MD615066 |
from US $7.93 |
||
|
06022
|
06022
MD615081 CHAMBER KIT, CARB DEPRESSION |
MD615081 |
US $217.56 |
||
|
06024
|
06024
MD615043 CHECK VALVE KIT, CARB ACCEL PUMP OUTLET |
MD615043 |
US $15.54 |
||
|
06039
|
06039
MD601701 GASKET, CARB AIR HORN |
MD601701 |
US $11.99 |
||
|
06050
|
06050
MD615053
FLOAT & PIN KIT, CARB
|
MD615053 |
— | ||
|
06054
|
06054
MD601622
JET,CARB MAIN PRIMARY
|
MD601622 |
— | ||
|
06055
|
06055
MD601833 JET, CARB MAIN SECONDARY#165 |
MD601833 |
US $8.44 |
||
|
06075
|
06075
MD601635 JET, CARB POWER#55 |
MD601635 |
US $6.96 |
||
|
06076
|
06076
MD601761 JET, CARB SLOW#52-75 |
MD601761 |
from US $13.98 |
||
|
06093
|
06093
MD601584 PISTON KIT, CARB POWER |
MD601584 |
US $9.32 |
||
|
06095
|
06095
MD601605 PLUG KIT, CARB |
MD601605 |
US $10.06 |
||
|
06096
|
06096
MD601612 PLUNGER KIT, CARB ACCEL PUMP |
MD601612 |
from US $24.98 |
||
|
06101
|
06101
MD615061
ROD KIT,CARB ACCEL PUMP
|
MD615061 |
— | ||
|
06102
|
06102
MD601614 ROD,CARB CHOKE LEVER |
MD601614 |
US $9.32 |
||
|
06113
|
06113
MD601809 ADJUSTING SCREW KIT, CARB SPEED |
MD601809 |
US $19.24 |
||
|
06135
|
06135
MD601818 NEEDLE VALVE KIT, CARB FLOAT |
MD601818 |
from US $18.92 |
||
|
06148
|
06148
MD615025 VALVE, CARB IDLE COMPENSATOR |
MD615025 |
US $202.76 |
||
|
06152
|
06152
MD601817 VALVE, CARB FUEL CUT-OFF SOLENOID |
MD601817 |
US $148 |
||
|
06154
|
06154
MD601636 VALVE, CARB POWER |
MD601636 |
US $19.24 |
||
|
06168
|
06168
MD615118
BRACKET KIT,CARB ACCEL CABLE
|
MD615118 |
— | ||
|
06273QV
|
06273QV
MF200025 SCREW, ROCKER COVERMachine,4x8 |
MF200025 |
US $2.19 |
||
|
06273SG
|
06273SG
MF350052 SCREW, CARB INR |
MF350052 |
US $3.28 |
||
|
06273SJ
|
06273SJ
MF350054 SCREW, LPG TANKWasher assembled,5x25 |
MF350054 |
US $2.37 |
||
|
06273XJ
|
06273XJ
MD601773 SCREW, CARB INR |
MD601773 |
US $2.37 |
||
|
06273YF
|
06273YF
MD601604 SCREW, CARB INR |
MD601604 |
US $2.96 |
||
|
06273YP
|
06273YP
MD601121 SCREW, CARB INR |
MD601121 |
US $3.11 |
||
|
06274
|
06274
MD601051 SNAP RING, CARB INR |
MD601051 |
US $2.96 |
||
|
06277P
|
06277P
MF450002 WASHER, CARB INRPlain,4 |
MF450002 |
US $2.22 |
||
|
06277S
|
06277S
MF450001 WASHER, CARB INRPlain,3 |
MF450001 |
US $1.92 |
||
|
06299T
|
06299T
MD601736 HOSE,CARB IDLE COMPENSATOR |
MD601736 |
US $6.36 |
||
|
06299U
|
06299U
MD615114
HOSE,CARB INR
|
MD615114 |
— |
