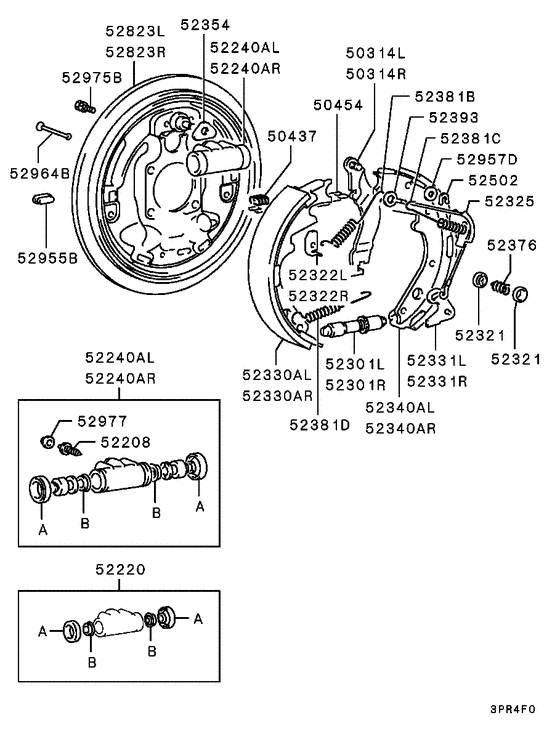

Rear wheel brake (ALL) Diagram Mitsubishi L300
- Year
- -
- Sales region
- EUR
- Note
- DX(3DOOR),4CM/T RHD
- drive
- 2WD
- transmission
- 4CM/T
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50314L
|
50314L
MB151066 LEVER, PARKING BRAKE OPERATING, LH |
MB151066 |
US $19.24 |
||
|
50314R
|
50314R
MB151067 LEVER, PARKING BRAKE OPERATING, RH |
MB151067 |
US $19.24 |
||
|
50437
|
50437
MA107497 SPRING, PARKING BRAKE LEVER STRUT |
MA107497 |
US $3.70 |
||
|
50454
|
50454
MB151269 STRUT, PARKING BRAKE OPERATING LEVER |
MB151269 |
US $10.80 |
||
|
52208
|
52208
MB366146
BLEEDER, FR BRAKE CALIPER
|
MB366146 |
— | ||
| replacement | |||||
|
52208
|
52208
4610A018 BLEEDER, RR BRAKE CYLINDER |
4610A018 |
from US $7.59 |
||
|
52220
|
52220
MB151052 CUP & BOOT KIT, RR BRAKE CYLINDER |
MB151052 |
US $18.50 |
||
|
52240AL
|
52240AL
MB151050
CYLINDER ASSY, RR BRAKE, LH
|
MB151050 |
— | ||
|
52240AR
|
52240AR
MB151051
CYLINDER ASSY, RR BRAKE, RH
|
MB151051 |
— | ||
|
52301L
|
52301L
MB151262 ADJUSTER, RR BRAKE SHOE SLACK, LH |
MB151262 |
US $46.51 |
||
|
52301R
|
52301R
MB151263
ADJUSTER, RR BRAKE SHOE SLACK, RH
|
MB151263 |
— | ||
|
52321
|
52321
MT100169 CUP, PARKING BRAKE SHOE HOLD-DOWN SPRING |
MT100169 |
from US $2.46 |
||
|
52322L
|
52322L
MB151278 DAMPER, RR BRAKE SHOE SPRING, LH |
MB151278 |
US $6.22 |
||
|
52322R
|
52322R
MB151279 DAMPER, RR BRAKE SHOE SPRING, RH |
MB151279 |
US $6.22 |
||
|
52325
|
52325
MA107484 GUIDE, RR BRAKE SHOE ADJUSTER CABLE |
MA107484 |
US $5.33 |
||
|
52330AL
|
52330AL
MB151059
SHOE ASSY, RR BRAKE PRIMARY
|
MB151059 |
— | ||
| replacement | |||||
|
52330AL
|
52330AL
MB895154
SHOE ASSY, RR BRAKE PRIMARY, LH
|
MB895154 |
— | ||
|
52330AR
|
52330AR
MB151059
SHOE ASSY, RR BRAKE PRIMARY
|
MB151059 |
— | ||
| replacement | |||||
|
52330AR
|
52330AR
MB895154
SHOE ASSY, RR BRAKE PRIMARY, LH
|
MB895154 |
— | ||
|
52331L
|
52331L
MB151260 LEVER, RR BRAKE SHOE SLACK ADJUSTER, LH |
MB151260 |
US $9.03 |
||
|
52331R
|
52331R
MB151261 LEVER, RR BRAKE SHOE SLACK ADJUSTER, RH |
MB151261 |
US $9.03 |
||
|
52340AL
|
52340AL
MB151060
SHOE ASSY, RR BRAKE SECONDARY, LH
|
MB151060 |
— | ||
| replacement | |||||
|
52340AL
|
52340AL
MB699116
SHOE ASSY, RR BRAKE SECONDARY, LH
|
MB699116 |
— | ||
|
52340AR
|
52340AR
MB151061
SHOE ASSY, RR BRAKE SECONDARY, RH
|
MB151061 |
— | ||
| replacement | |||||
|
52340AR
|
52340AR
MB699117
SHOE ASSY, RR BRAKE SECONDARY, RH
|
MB699117 |
— | ||
|
52354
|
52354
MB151274 PLATE, RR BRAKE SHOE INSULATOR |
MB151274 |
US $6.22 |
||
|
52376
|
52376
MB151273 SPRING, FR BRAKE SHOE HOLD-DOWN |
MB151273 |
US $2.74 |
||
|
52381B
|
52381B
MB151270 SPRING, RR BRAKE SHOE RETURN |
MB151270 |
US $8.07 |
||
|
52381C
|
52381C
MB151271 SPRING, RR BRAKE SHOE RETURN |
MB151271 |
US $7.10 |
||
|
52381D
|
52381D
MB151272 SPRING, RR BRAKE SHOE RETURN |
MB151272 |
from US $4.76 |
||
|
52393
|
52393
MB151275 CABLE, RR BRAKE |
MB151275 |
US $9.03 |
||
|
52502
|
52502
MA151648 RETAINER, RR BRAKE CHAMBER |
MA151648 |
from US $1.27 |
||
|
52823L
|
52823L
MB500874 PLATE, RR BRAKE BACKING, LH |
MB500874 |
US $142.08 |
||
|
52823R
|
52823R
MB500875 PLATE, RR BRAKE BACKING, RH |
MB500875 |
US $142.08 |
||
|
52955B
|
52955B
MA111607 PLUG, RR BRAKERubber,33-13.8 |
MA111607 |
US $6.29 |
||
| replacement | |||||
|
52955B
|
52955B
MR493001 PLUG, RR BRAKE |
MR493001 |
from US $5.61 |
||
|
52957D
|
52957D
MA151647 WASHER, RR BRAKEWave,8.4 |
MA151647 |
US $4.24 |
||
|
52964B
|
52964B
MA111859 PIN, FR BRAKE3x47.5 |
MA111859 |
from US $3.35 |
||
|
52975B
|
52975B
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
52977
|
52977
MV026287 CAP, GEARSHIFT LINK |
MV026287 |
from US $2.81 |
||
