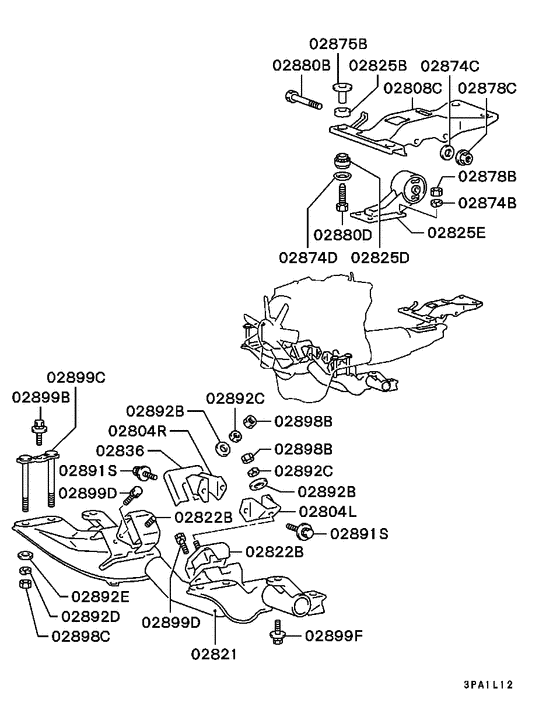

Engine mounting & support (ALL) Diagram Mitsubishi L300
- Year
- 1986 - 1994
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN),5CM/T LHD
- drive
- 2WD
- transmission
- 5CM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02804L
|
02804L
MD008902 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD008902 |
US $31.08 |
||
|
02804R
|
02804R
MD008900 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD008900 |
US $31.08 |
||
|
02808C
|
02808C
MB436047 BRACKET, ENG RR MOUNTING |
MB436047 |
US $125.06 |
||
|
02821
|
02821
MB309960 CROSSMEMBER, ENG MOUNTING |
MB309960 |
US $393.12 |
||
|
02822B
|
02822B
MB007038
CUSHION, CROSSMEMBER ENG MOUNTING
|
MB007038 |
— | ||
| replacement | |||||
|
02822B
|
02822B
MB691203 CUSHION, CROSSMEMBER ENG MOUNTING |
MB691203 |
US $56.09 |
||
|
02822B
|
02822B
MB691203 CUSHION, CROSSMEMBER ENG MOUNTING |
MB691203 |
US $56.09 |
||
|
02825B
|
02825B
MB436344 CUSHION, ENG RR MOUNTING |
MB436344 |
US $3.40 |
||
|
02825B
|
02825B
MB581094 CUSHION, ENG RR MOUNTING |
MB581094 |
US $2.07 |
||
|
02825D
|
02825D
MB436343 CUSHION, ENG RR MOUNTING |
MB436343 |
US $3.11 |
||
|
02825E
|
02825E
MB436342 CUSHION, ENG RR MOUNTING |
MB436342 |
US $128.76 |
||
|
02836
|
02836
MB006801 PROTECTOR, ENG FR MOUNTING HEAT |
MB006801 |
US $4 |
||
|
02836
|
02836
MB870889 PROTECTOR, ENG FR MOUNTING HEAT |
MB870889 |
US $10.95 |
||
|
02874B
|
02874B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02874C
|
02874C
MF450007 WASHER, CYLINDER HEADPlain,12 |
MF450007 |
from US $0.90 |
||
|
02874D
|
02874D
MB175817 WASHER, ENG RR MOUNTING10.4 |
MB175817 |
US $2.96 |
||
|
02875B
|
02875B
MB436450 SPACER, ENG RR MOUNTING10.4x28 |
MB436450 |
US $8.14 |
||
|
02875B
|
02875B
MB581093 SPACER, ENG RR MOUNTING10.4x28 |
MB581093 |
US $3.70 |
||
|
02878B
|
02878B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
02878B
|
02878B
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02878C
|
02878C
MB288654 NUT, ENG RR MOUNTINGSelf lock (flange |
MB288654 |
US $4.65 |
||
|
02880B
|
02880B
MU140003 BOLT, ENG RR MOUNTINGFlange,12x110 |
MU140003 |
US $7.10 |
||
|
02880D
|
02880D
MS240183 BOLT, ENG RR MOUNTINGWasher assembled,10x55 |
MS240183 |
US $2.81 |
||
|
02891S
|
02891S
MS240216 BOLT, ENG MOUNTINGWasher assembled,10x25 |
MS240216 |
US $2.60 |
||
|
02892B
|
02892B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
02892C
|
02892C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02892D
|
02892D
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
02892E
|
02892E
MF450007 WASHER, CYLINDER HEADPlain,12 |
MF450007 |
from US $0.90 |
||
|
02898B
|
02898B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
02898C
|
02898C
MU430003 NUT, ENG MOUNTING12 |
MU430003 |
from US $1.21 |
||
|
02899B
|
02899B
MS240086 BOLT, ENG FR MOUNTINGWasher assembled,8x25 |
MS240086 |
US $3.28 |
||
|
02899B
|
02899B
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
02899C
|
02899C
MU260001 BOLT, ENG FR MOUNTINGPlate assembled,12x153x2 |
MU260001 |
US $5.92 |
||
|
02899D
|
02899D
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02899D
|
02899D
MF244881 BOLT, EXHAUST PIPEWasher assembled,10x28 |
MF244881 |
US $1.50 |
||
|
02899F
|
02899F
MU240018 BOLT, ENG FR MOUNTINGWasher assembled,12x30 |
MU240018 |
US $2.37 |
||
