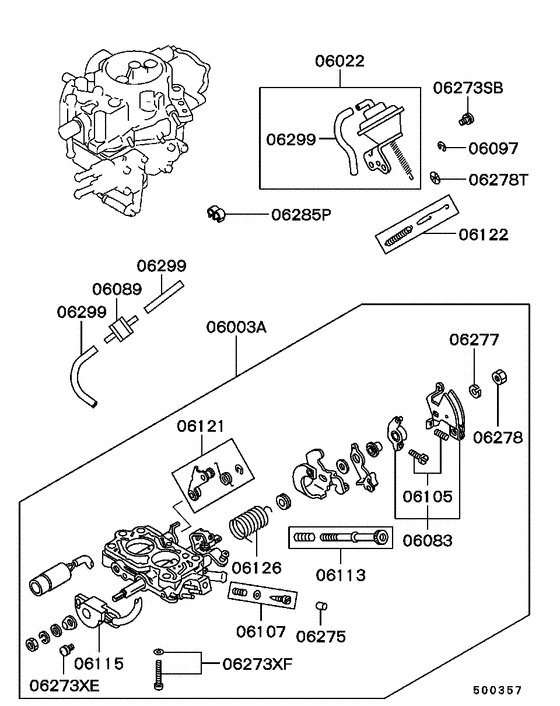

Carburetor (ALL (INNER PARTS LWR)) Diagram Mitsubishi L300
- Year
- 1994 - 1997
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN/MPI),5CM/T LHD
- drive
- 2WD
- transmission
- 5CM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
06003A
|
06003A
MD612825
THROTTLE BODY ASSY,CARB
|
MD612825 |
— | ||
|
06003A
|
06003A
MD617127
THROTTLE BODY ASSY,CARB
|
MD617127 |
— | ||
|
06022
|
06022
MD612938
CHAMBER KIT,CARB DEPRESSION
|
MD612938 |
— | ||
|
06083
|
06083
MD612940
LEVER KIT,CARB THROTTLE
|
MD612940 |
— | ||
|
06083
|
06083
MD617810
LEVER KIT,CARB THROTTLE
|
MD617810 |
— | ||
|
06089
|
06089
MD612741 ORIFICE, CARB CHOKE BREAKER |
MD612741 |
US $64.38 |
||
|
06089
|
06089
MD617195
ORIFICE KIT,CARB INR
|
MD617195 |
— | ||
|
06089
|
06089
MD617630
VALVE,CARB DELAY
|
MD617630 |
— | ||
|
06097
|
06097
MD612426 SNAP RING, CARB DEPRESSION CHAMBER |
MD612426 |
US $4.44 |
||
|
06105
|
06105
MD608479 ADJUSTING SCREW KIT, FAST IDLE |
MD608479 |
US $15.54 |
||
|
06107
|
06107
MD606939 SCREW, CARB INR |
MD606939 |
US $24.62 |
||
|
06107
|
06107
MD612789
ADJUSTING SCREW KIT,CARB MIXTURE
|
MD612789 |
— | ||
|
06113
|
06113
MD608368 ADJUSTING SCREW KIT, CARB SPEED |
MD608368 |
US $28.12 |
||
|
06115
|
06115
MD612772 SENSOR, CARB THROTTLE POSITION |
MD612772 |
US $273.80 |
||
|
06115
|
06115
MD617601 SENSOR, CARB THROTTLE POSITION |
MD617601 |
US $272.32 |
||
|
06121
|
06121
MD612422 SPRING KIT, CARB SECONDARY THROTTLE |
MD612422 |
US $18.50 |
||
|
06122
|
06122
MD617812 SPRING KIT, CARB THROTTLE RETURN |
MD617812 |
from US $12.88 |
||
|
06126
|
06126
MD612536 SPRING, CARB THROTTLE RETURN |
MD612536 |
US $12.58 |
||
|
06126
|
06126
MD617656 SPRING, CARB THROTTLE RETURN |
MD617656 |
US $10.06 |
||
|
06273SB
|
06273SB
MF350047 SCREW, FLYWHEEL HOUSINGWasher assembled,5x10 |
MF350047 |
US $2.05 |
||
|
06273XE
|
06273XE
MD612430 SCREW, CARB INR |
MD612430 |
US $7.55 |
||
|
06273XF
|
06273XF
MD612462 SCREW, CARB INR |
MD612462 |
US $13.76 |
||
|
06275
|
06275
MD608086
PLUG,CARB INR
|
MD608086 |
— | ||
|
06277
|
06277
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
06278
|
06278
MD600059 NUT, CARB INR |
MD600059 |
US $3.26 |
||
|
06299
|
06299
MD606951
HOSE, CARB DEPRESSION CHAMBER
|
MD606951 |
— | ||
| replacement | |||||
|
06299
|
06299
MD617777 HOSE, CARB INR1000 |
MD617777 |
US $35.57 |
||
|
06299
|
06299
MD617777 HOSE, CARB INR1000 |
MD617777 |
US $35.57 |
||
