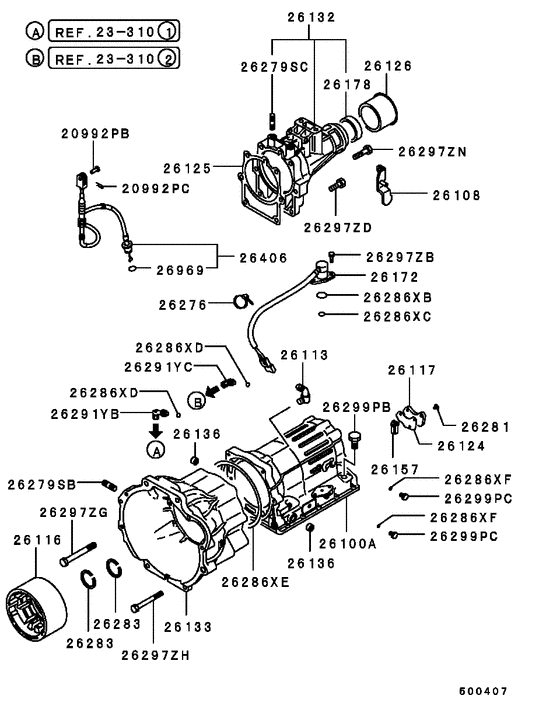

A/t case (ALL (UPPER T/M CASE)) Diagram Mitsubishi L300
- Year
- 1991 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR),4FA/T LHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20992PB
|
20992PB
MD003071
PIN, CARB
|
MD003071 |
— | ||
|
20992PC
|
20992PC
MF472302 PIN, CARBSnap,5x17.9 |
MF472302 |
US $1.48 |
||
|
26100A
|
26100A
MD609058 CASE ASSY, A/T |
MD609058 |
US $979.89 |
||
|
26108
|
26108
MD609337 BRACKET, A/T CASE INHIBITOR SWITCH |
MD609337 |
US $11.10 |
||
|
26113
|
26113
MD951743 BREATHER, A/T CASE |
MD951743 |
US $6.43 |
||
|
26116
|
26116
MD951777 CASE, A/T O/D |
MD951777 |
US $521.25 |
||
|
26117
|
26117
MD951331 COVER, A/T CASE, RR |
MD951331 |
US $7.10 |
||
|
26124
|
26124
MB896487 GASKET, A/T CASE RR COVER |
MB896487 |
US $6.51 |
||
|
26125
|
26125
MB896468 GASKET, A/T EXTENSION HOUSING |
MB896468 |
US $14.36 |
||
|
26126
|
26126
MD609336 GUARD, M/T EXTENSION HOUSING DUST SEAL |
MD609336 |
US $33.30 |
||
|
26132
|
26132
MD951747 HOUSING, A/T CASE EXTENSION |
MD951747 |
US $639.18 |
||
|
26133
|
26133
MD609393 HOUSING, A/T TORQUE CONVERTER |
MD609393 |
US $905.63 |
||
|
26136
|
26136
MR111500 OIL SEAL, A/T CONVERTER HOUSING |
MR111500 |
from US $4.11 |
||
|
26157
|
26157
MD609059 STRAINER, A/T CASE GOVERNOR VALVE |
MD609059 |
US $11.10 |
||
|
26172
|
26172
MB936396 VALVE, A/T CASE SOLENOID |
MB936396 |
US $187.42 |
||
|
26178
|
26178
MD951482 OIL SEAL, A/T CASE MANUAL CONTROL SHAFT |
MD951482 |
from US $16.69 |
||
|
26276
|
26276
MD609325 CLAMP, A/T CASE |
MD609325 |
US $5.62 |
||
|
26279SB
|
26279SB
MD951846 STUD, A/T CASE6x20 |
MD951846 |
US $3.26 |
||
|
26279SC
|
26279SC
MD951749 STUD, A/T CASE |
MD951749 |
US $12.28 |
||
|
26281
|
26281
MD951818 SCREW, A/T CASE6x1x12 |
MD951818 |
US $3.70 |
||
|
26283
|
26283
MD951734 SEAL RING, A/T CASE |
MD951734 |
US $9.30 |
||
|
26286XB
|
26286XB
MD609081 O-RING, A/T CASE23.6 |
MD609081 |
from US $1.77 |
||
|
26286XC
|
26286XC
MD609080 O-RING, A/T CASE9.8 |
MD609080 |
US $2.74 |
||
|
26286XD
|
26286XD
MD951336 O-RING, A/T CASE10.4 |
MD951336 |
US $5.20 |
||
|
26286XE
|
26286XE
MD609475 O-RING, A/T CASE |
MD609475 |
US $10.94 |
||
|
26286XF
|
26286XF
MD951630 O-RING, A/T CASE6.07 |
MD951630 |
US $2.96 |
||
|
26291YB
|
26291YB
MD609335 JOINT, A/T CASE |
MD609335 |
US $36.26 |
||
|
26291YC
|
26291YC
MD609210 JOINT, A/T CASE |
MD609210 |
US $33.30 |
||
|
26297ZB
|
26297ZB
MD609082 BOLT, A/T CASEWasher assembled,8x16 |
MD609082 |
US $2.07 |
||
|
26297ZD
|
26297ZD
MD609421 BOLT, A/T CASEWasher assembled,10x45 |
MD609421 |
US $3.70 |
||
|
26297ZG
|
26297ZG
MD609320 BOLT, A/T CASEFlange,10x118 |
MD609320 |
US $5.48 |
||
|
26297ZH
|
26297ZH
MD609319 BOLT, A/T CASEFlange,12x97 |
MD609319 |
US $5.48 |
||
|
26297ZN
|
26297ZN
MD609078 BOLT, A/T CASEWasher assembled,10x35 |
MD609078 |
US $3.55 |
||
|
26299PB
|
26299PB
MD609245 PLUG, A/T CASE |
MD609245 |
US $2.07 |
||
|
26299PC
|
26299PC
MD951631 PLUG, A/T CASE |
MD951631 |
US $3.85 |
||
|
26406
|
26406
MD951924 CABLE, A/T THROTTLE CONTROL |
MD951924 |
US $87.32 |
||
|
26969
|
26969
MB896458 O-RING, A/T CONTROL EQUIP9.2 |
MB896458 |
US $3.28 |
||
|
