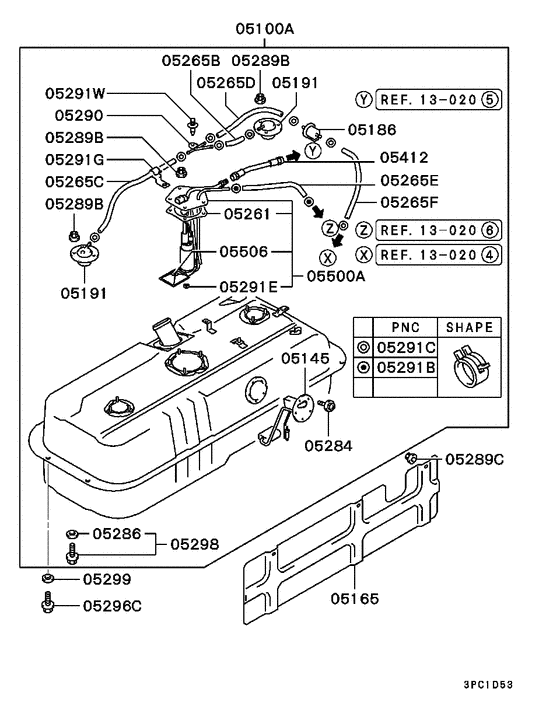

Fuel tank (MPI) Diagram Mitsubishi L300
- Year
- 1999 - 2000
- Sales region
- EUR
- Note
- CAB&CHASSIS(LONG/MPI),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- CAB&CHASSIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05100A
|
05100A
MR134117
FUEL TANK ASSY
|
MR134117 |
— | ||
|
05145
|
05145
MR158205
GAUGE UNIT,FUEL TANK
|
MR158205 |
— | ||
|
05165
|
05165
MR134642 PROTECTOR, FUEL TANK |
MR134642 |
US $94.72 |
||
|
05186
|
05186
MR239350 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MR239350 |
US $32.15 |
||
|
05191
|
05191
MB595490
VALVE, FUEL TANK SAFETY
|
MB595490 |
— | ||
| replacement | |||||
|
05191
|
05191
MR526922 VALVE, FUEL TANK SAFETY |
MR526922 |
from US $51.05 |
||
|
05261
|
05261
MB400686 GASKET, FUEL TANK PUMP |
MB400686 |
from US $5.09 |
||
|
05265B
|
05265B
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265C
|
05265C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265D
|
05265D
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265E
|
05265E
MU601060 HOSE, FUEL TANK6x600 |
MU601060 |
from US $14.12 |
||
|
05265F
|
05265F
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05284
|
05284
MF350024 SCREW, FUEL TANKWasher assembled,4x10 |
MF350024 |
US $2.05 |
||
|
05286
|
05286
MR100054 GASKET, FUEL TANK8 |
MR100054 |
from US $0.96 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05289C
|
05289C
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
05290
|
05290
MB052644 JOINT, FUEL TANK |
MB052644 |
US $9.03 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291E
|
05291E
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05291G
|
05291G
MB348320 CLIP, FUEL TANK11 |
MB348320 |
US $30.34 |
||
|
05291W
|
05291W
MB476821 CLIP, SPLASH SHIELD |
MB476821 |
from US $1.17 |
||
|
05296C
|
05296C
MF247893 BOLT, A/SUSPWasher assembled,8x25 |
MF247893 |
US $2.07 |
||
|
05298
|
05298
1715A135 PLUG, FUEL TANK8 |
1715A135 |
from US $2.63 |
||
|
05299
|
05299
MF450806 WASHER, FUEL TANKTooth,10 |
MF450806 |
US $2.37 |
||
|
05412
|
05412
MR134482 HOSE, FUEL HIGH PRESSURE |
MR134482 |
US $59.94 |
||
|
05500A
|
05500A
MR134143
FUEL PUMP ASSY
|
MR134143 |
— | ||
|
05506
|
05506
MB890047 FILTER, FUEL PUMP |
MB890047 |
from US $23.79 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
