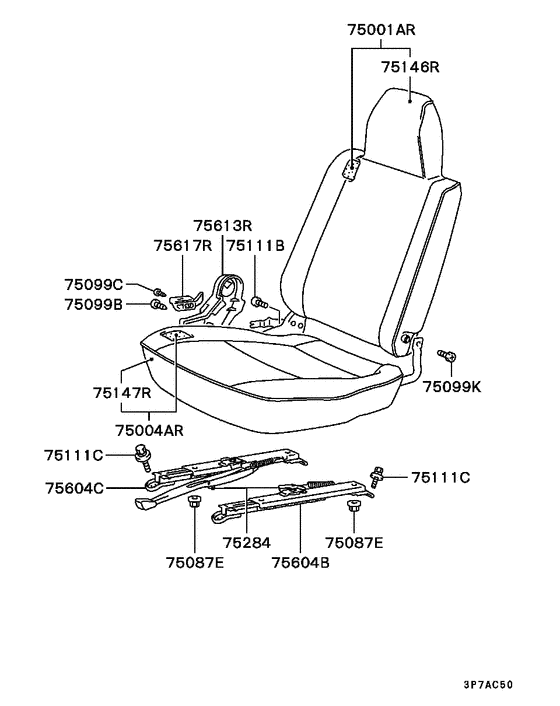

Front seat (RH..RHD) Diagram Mitsubishi L300
- Year
- 1999 - 2000
- Sales region
- EUR
- Note
- CAB&CHASSIS(LONG/MPI),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- CAB&CHASSIS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR609103
BACK ASSY,FR SEAT,RH
|
MR609103 |
— | ||
|
75004AR
|
75004AR
MR609096
CUSHION ASSY,FR SEAT,RH
|
MR609096 |
— | ||
|
75087E
|
75087E
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
75099B
|
75099B
MF456590 SCREW, FR SEATTapping,5x10 |
MF456590 |
US $2.07 |
||
|
75099C
|
75099C
MS200037 SCREW, FR SEATMachine,4x6 |
MS200037 |
from US $2.62 |
||
|
75099K
|
75099K
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75111B
|
75111B
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
75111C
|
75111C
MS240910 BOLT, SPARE FUEL TANK SUPPORTWasher assembled,8x20 |
MS240910 |
US $2.19 |
||
|
75146R
|
75146R
MR609120
COVER,FR SEAT BACK,RH
|
MR609120 |
— | ||
|
75147R
|
75147R
MR609113
COVER,FR SEAT CUSHION,RH
|
MR609113 |
— | ||
|
75284
|
75284
MB557534 WIRE, FR SEAT |
MB557534 |
US $3.26 |
||
|
75604B
|
75604B
MB472159 ADJUSTER, FR SEAT SLIDE |
MB472159 |
US $54.76 |
||
|
75604C
|
75604C
MB472158 ADJUSTER, FR SEAT SLIDE |
MB472158 |
US $54.76 |
||
|
75613R
|
75613R
MR606520
COVER,FR SEAT RECLINING ADJUSTER,RH
|
MR606520 |
— | ||
|
75617R
|
75617R
MR797860 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR797860 |
US $5.48 |
