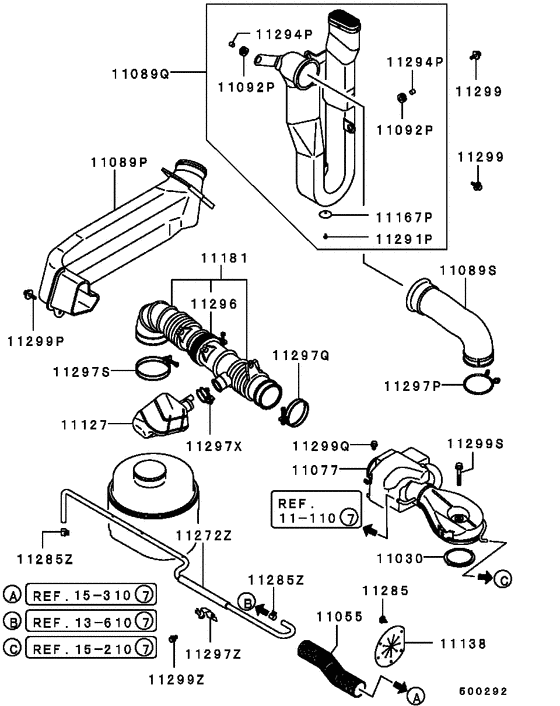

Air cleaner (CARBURETOR (INTAKE LINE)) Diagram Mitsubishi L300
- Year
- 1994 - 1995
- Sales region
- EUR
- Note
- CAB&CHASSIS(LONG),5CM/T LHD
- drive
- 2WD
- transmission
- 5CM/T
- grade
- CAB&CHASSIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11030
|
11030
MD025181 GASKET, AIR CLEANER TO CARB |
MD025181 |
US $9.44 |
||
|
11055
|
11055
MD107524 HEAT DUCT, AIR CLEANER42x275 |
MD107524 |
US $32.56 |
||
|
11077
|
11077
MR187914 AIR HORN, AIR CLEANER TO CARB |
MR187914 |
US $279.72 |
||
|
11089P
|
11089P
MD148437 DUCT, AIR CLEANER INTAKE |
MD148437 |
US $97.68 |
||
|
11089Q
|
11089Q
MR187706 DUCT, AIR CLEANER INTAKE |
MR187706 |
US $105.08 |
||
|
11089Q
|
11089Q
MR258466
DUCT,AIR CLEANER INTAKE
|
MR258466 |
— | ||
|
11089S
|
11089S
MR187707 DUCT, AIR CLEANER INTAKE |
MR187707 |
US $32.56 |
||
|
11092P
|
11092P
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11127
|
11127
MD157006 RESONATOR, AIR CLEANER |
MD157006 |
US $45.14 |
||
|
11127
|
11127
MR161722 RESONATOR, AIR CLEANER |
MR161722 |
US $51.80 |
||
|
11138
|
11138
MD107709 SEAL, AIR CLEANER HEAT DUCTRubber |
MD107709 |
US $8.34 |
||
|
11167P
|
11167P
MR431741 VALVE, AIR CLEANER UNLOADER |
MR431741 |
US $6.51 |
||
|
11181
|
11181
MR187232 DUCT, AIR CLEANER TO CARB |
MR187232 |
US $208.68 |
||
|
11272Z
|
11272Z
MD311887 HOSE, AIR CLEANER |
MD311887 |
US $76.96 |
||
|
11285
|
11285
MB115492 CLIP, AIR CLEANER5.4 |
MB115492 |
from US $1.62 |
||
|
11285Z
|
11285Z
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
11291P
|
11291P
MF453016 SCREW, GEARSHIFT LINKTapping,4x10 |
MF453016 |
US $2.74 |
||
|
11291P
|
11291P
MF453256 SCREW, GUARD BARTapping,4x10 |
MF453256 |
US $2.07 |
||
|
11294P
|
11294P
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11296
|
11296
MD122529 CLAMP, AIR CLEANER INR83 |
MD122529 |
from US $5.46 |
||
|
11296
|
11296
MF661138 CLAMP, AIR CLEANER83 |
MF661138 |
from US $3.71 |
||
|
11297P
|
11297P
MD110906 CLAMP, AIR CLEANER75.5 |
MD110906 |
US $6.22 |
||
|
11297Q
|
11297Q
MF661135 CLAMP, AIR CLEANER75 |
MF661135 |
US $6.43 |
||
|
11297Q
|
11297Q
MF661138 CLAMP, AIR CLEANER83 |
MF661138 |
from US $3.71 |
||
|
11297S
|
11297S
MF661142 CLAMP, AIR CLEANER INR93 |
MF661142 |
US $8.21 |
||
|
11297X
|
11297X
MF661119
CLIP, RADIATOR PIPING
|
MF661119 |
— | ||
|
11297X
|
11297X
MF661123 CLAMP, AIR CLEANER48 |
MF661123 |
US $5.75 |
||
|
11297Z
|
11297Z
MD313543 CLAMP, AIR CLEANER |
MD313543 |
US $7.40 |
||
|
11299
|
11299
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
||
|
11299P
|
11299P
MF140204 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140204 |
from US $0.80 |
||
|
11299Q
|
11299Q
MF140641 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140641 |
US $2.22 |
||
|
11299S
|
11299S
MF243663 BOLT, ROCKER COVERWasher assembled,8x60 |
MF243663 |
US $1.78 |
||
|
11299Z
|
11299Z
MF140020 BOLT, ENG SUPPORT RODFlange,8x10 |
MF140020 |
from US $0.70 |
||
|
