Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
02018	02018 MD315101 INDICATOR, IGNITION TIMING	MD315101	US $2.22
03038	03038 MD074433 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD074433	US $80.71
03038	03038 MD141953 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD141953	—
	replacement
03038	03038 MD326852 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD326852	from US $40.37
03038	03038 MD189517 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD189517	US $81.40
03038	03038 MD326852 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE	MD326852	from US $40.37
03100	03100 MD073744 CAMSHAFT	MD073744	US $573.66
03100	03100 MD193040 CAMSHAFT	MD193040	—
03100	03100 MD336905 CAMSHAFT	MD336905	US $444.08
03110	03110 MD113790 BELT, VALVE TIMING	MD113790	—
	replacement
03110	03110 MD197136 BELT, VALVE TIMING	MD197136	—
03110	03110 MD140228 BELT, VALVE TIMING	MD140228	US $66.90
	replacement
03110	03110 MD197136 BELT, VALVE TIMING	MD197136	—
03110	03110 MD182293 BELT, VALVE TIMING	MD182293	US $52.26
	replacement
03110	03110 MD197141 BELT, VALVE TIMING	MD197141	US $101.92
03110	03110 MD189521 BELT, VALVE TIMING	MD189521	from US $56.08
03148	03148 MD170402 ARM, TIMING BELT TENSIONER	MD170402	US $59.20
03148	03148 MN119896 ARM, TIMING BELT TENSIONER	MN119896	from US $44.46
03152	03152 MD156604 PULLEY, TIMING BELT IDLER	MD156604	from US $38.63
03158	03158 MD182537 PULLEY, TIMING BELT TENSIONER	MD182537	from US $27.69
03170	03170 MD168059 OIL SEAL, BALANCER SHAFT, FR RH	MD168059	from US $9.03
03171	03171 MD011482 SPROCKET, CAMSHAFT	MD011482	US $52.54
03171	03171 MD189515 SPROCKET, CAMSHAFT	MD189515	US $44.40
03171	03171 MD310812 SPROCKET, CAMSHAFT	MD310812	from US $49.45
03173	03173 MD011536 TENSIONER, TIMING BELT	MD011536	from US $51.06
03173	03173 MD192731 TENSIONER, TIMING BELT	MD192731	from US $126.30
03178	03178 MD185539 ADJUSTER, TIMING BELT TENSIONER	MD185539	—
	replacement
03178	03178 MD308587 ADJUSTER, TIMING BELT TENSIONER	MD308587	—
03178	03178 MD308587 ADJUSTER, TIMING BELT TENSIONER	MD308587	—
03195	03195 MD158443 PIN, CAMSHAFT Dowel,6x14	MD158443	from US $3.57
03195	03195 MD194553 PIN, CAMSHAFT Dowel,6x14	MD194553	US $2.81
03195	03195 MF472403 PIN, CYLINDER BLOCK Dowel,6x14	MF472403	from US $2.40
03277	03277 MD162682 BOLT, VALVE GEAR TRAIN Flange,8x35	MD162682	from US $1.56
03281	03281 MF450406 WASHER Spring,10	MF450406	from US $0.43
03281W	03281W MD129421 WASHER, ENG MOUNTING Plain,8	MD129421	US $8.21
03282	03282 MF472571 SPRING PIN, TIMING BELT TRAIN 5x20	MF472571	from US $1.15
03283	03283 MF430122 NUT, ENG RR MOUNTING 10	MF430122	from US $0.72
03283P	03283P MD095237 NUT, TIMING BELT TRAIN Flange,10	MD095237	US $4.38
03285P	03285P MD301352 BOLT, TIMING BELT TRAIN Flange,12x30	MD301352	from US $2.32
03285P	03285P MF140285 BOLT, ENG RR PLATE Flange,12x30	MF140285	from US $1.01
03285Q	03285Q MD129350 BOLT, TIMING BELT TRAIN Flange,8x51	MD129350	from US $2.48
03285Q	03285Q MF140264 BOLT, ENG RR PLATE Flange,10x35	MF140264	US $3.28
03285S	03285S MF244884 BOLT, ENG RR MOUNTING Washer assembled,10x35	MF244884	from US $1.37
03285T	03285T MF241281 BOLT, CYLINDER BLOCK Washer assembled,10x22	MF241281	from US $1.15
03285U	03285U MD194109 BOLT, ENG MOUNTING W/sealant,10x22	MD194109	US $3.15
03285V	03285V MF140202 BOLT, FLANGE (6x10) Flange,6x10	MF140202	from US $1.66
03285W	03285W MF241251 BOLT, CYLINDER HEAD Washer assembled,8x16	MF241251	from US $0.98
03285X	03285X MF241281 BOLT, CYLINDER BLOCK Washer assembled,10x22	MF241281	from US $1.15
03285Y	03285Y MF241282 BOLT, CYLINDER BLOCK Washer assembled,10x25	MF241282	from US $1.33
03301	03301 MD072177 ADJUSTER, ROCKER ARM LASH	MD072177	US $32.56
03301	03301 MD339767 ADJUSTER, ROCKER ARM LASH	MD339767	US $31.82
03301	03301 MD377561 ADJUSTER, ROCKER ARM LASH	MD377561	US $25.90
03324	03324 MD178782 ROCKER ARM, EXHAUST VALVE	MD178782	from US $29.33
03343P	03343P MD072116 ROCKER ARM, INLET VALVE	MD072116	US $62.16
03343P	03343P MD167980 ROCKER ARM, INLET VALVE	MD167980	US $34.78
03343Q	03343Q MD072117 ROCKER ARM ASSY, INLET & EXHAUST VALVE	MD072117	US $59.20
03343Q	03343Q MD167981 ROCKER ARM, INLET VALVE	MD167981	from US $23.60
03348	03348 MD015324 SHAFT, INLET VALVE ROCKER ARM	MD015324	US $65.12
03348	03348 MD187818 SHAFT, INLET VALVE ROCKER ARM	MD187818	from US $59.20
03349	03349 MD015325 SHAFT, EXHAUST VALVE ROCKER ARM	MD015325	US $65.12
03349	03349 MD187819 SHAFT, EXHAUST VALVE ROCKER ARM	MD187819	from US $58.05
03356	03356 MD000962 SPRING, ROCKER SHAFT	MD000962	US $2.37
03356	03356 MD166768 SPRING, ROCKER SHAFT	MD166768	from US $4.39
03358	03358 MD169459 CAP, ROCKER SHAFT	MD169459	from US $1.95
03405	03405 MD066498 RETAINER, VALVE SPRING	MD066498	from US $1.68
03405	03405 MD159209 RETAINER, VALVE SPRING	MD159209	from US $4.35
03410	03410 MD070691 VALVE, INLET	MD070691	US $31.08
03410	03410 MD159502 VALVE, INLET	MD159502	US $25.90
03412	03412 MD000507 SEAT, VALVE SPRING	MD000507	from US $1.40
03412	03412 MD151527 SEAT, VALVE SPRING	MD151527	from US $1.79
03419	03419 MD073398 SPRING, INLET & EXHAUST VALVE	MD073398	from US $5.92
03419	03419 MD163357 SPRING, INLET & EXHAUST VALVE	MD163357	from US $5.75
03419	03419 MD314078 SPRING, INLET & EXHAUST VALVE	MD314078	US $7.40
03419	03419 MN137027 SPRING, EXHAUST VALVE	MN137027	US $4.88
03420	03420 MD070693 Valve, Exhaust	MD070693	US $45.14
03420	03420 MD070694 Valve,exhaust 35.0	MD070694	from US $39.96
03420	03420 MD199193 Valve,exhaust 29.0	MD199193	US $35.52
03420	03420 MD303177 Valve, Exhaust	MD303177	—
	replacement
03420	03420 1011A535 VALVEEXHAUST	1011A535	from US $16.42
03450	03450 MD061895 LOCK, VALVE SPRING RETAINER	MD061895	from US $2.24
03450	03450 MD151369 LOCK, VALVE SPRING RETAINER	MD151369	from US $0.82
03480	03480 MD184303 SEAL, VALVE STEM Rubber	MD184303	from US $4.95
03490	03490 MD070695 SEAL, VALVE STEM Rubber	MD070695	from US $7.27
03490	03490 MD184303 SEAL, VALVE STEM Rubber	MD184303	from US $4.95
04044	04044 MD096389 SPROCKET, ENG OIL PUMP	MD096389	—
04044	04044 MD122692 SPROCKET, ENG OIL PUMP	MD122692	—
04044	04044 MD135005 SPROCKET, ENG OIL PUMP	MD135005	from US $49.94
04044	04044 MD189519 SPROCKET, ENG OIL PUMP	MD189519	US $62.16
14588	14588 MD311567 SPACER, DISTRIBUTOR	MD311567	US $49.93
14598YP	14598YP MF140204 BOLT, ACCEL CABLE SUPPORT Flange,6x14	MF140204	from US $0.80

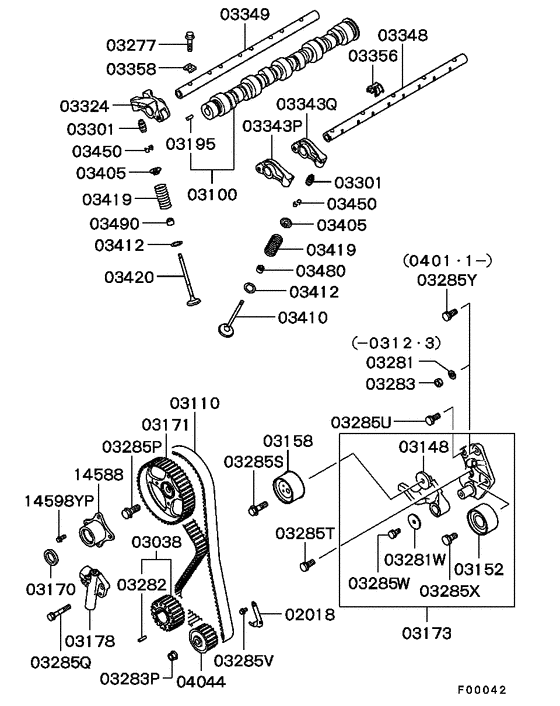

Camshaft & valve (9406.1-) Diagram Mitsubishi L300 EUR 1879078-164626

Camshaft & valve (9406.1-) Diagram Mitsubishi L300 EUR 1879078-164626
