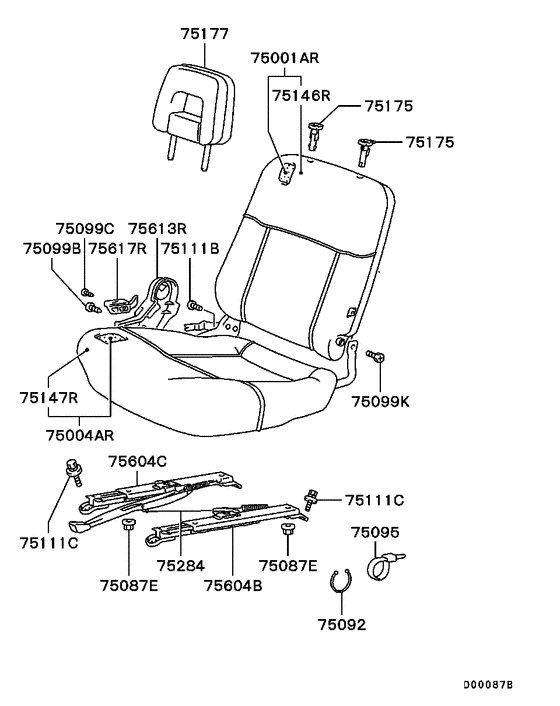

Front seat (RH..LOWBACK(RHD)) Diagram Mitsubishi L300
- Year
- 1997 - 2003
- Sales region
- EUR
- Note
- DX(4DOOR/PANEL VAN/MPI),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MB715568
BACK ASSY,FR SEAT,RH
|
MB715568 |
— | ||
|
75001AR
|
75001AR
MR609075
BACK ASSY,FR SEAT,RH
|
MR609075 |
— | ||
|
75001AR
|
75001AR
MR609104
BACK ASSY,FR SEAT,RH
|
MR609104 |
— | ||
|
75001AR
|
75001AR
MR762187
BACK ASSY,FR SEAT,RH
|
MR762187 |
— | ||
|
75004AR
|
75004AR
MB715605
CUSHION ASSY,FR SEAT,RH
|
MB715605 |
— | ||
|
75004AR
|
75004AR
MR609071
CUSHION ASSY,FR SEAT,RH
|
MR609071 |
— | ||
|
75004AR
|
75004AR
MR609098
CUSHION ASSY,FR SEAT,RH
|
MR609098 |
— | ||
|
75004AR
|
75004AR
MR762180
CUSHION ASSY,FR SEAT,RH
|
MR762180 |
— | ||
|
75087E
|
75087E
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
75099B
|
75099B
MF456590 SCREW, FR SEATTapping,5x10 |
MF456590 |
US $2.07 |
||
|
75099C
|
75099C
MS200037 SCREW, FR SEATMachine,4x6 |
MS200037 |
from US $2.62 |
||
|
75099K
|
75099K
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75111B
|
75111B
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
75111B
|
75111B
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF244251 BOLT, BRAKE FLUID LINEWasher assembled,8x20 |
MF244251 |
US $2.46 |
||
|
75111C
|
75111C
MS240910 BOLT, SPARE FUEL TANK SUPPORTWasher assembled,8x20 |
MS240910 |
US $2.19 |
||
|
75146R
|
75146R
MB715447
COVER,FR SEAT BACK,RH
|
MB715447 |
— | ||
|
75146R
|
75146R
MR609090
COVER,FR SEAT BACK,RH
|
MR609090 |
— | ||
|
75146R
|
75146R
MR609121
COVER,FR SEAT BACK,RH
|
MR609121 |
— | ||
|
75146R
|
75146R
MR762204
COVER,FR SEAT BACK,RH
|
MR762204 |
— | ||
|
75147R
|
75147R
MB715481
COVER,FR SEAT CUSHION,RH
|
MB715481 |
— | ||
|
75147R
|
75147R
MR609086
COVER,FR SEAT CUSHION,RH
|
MR609086 |
— | ||
|
75147R
|
75147R
MR609115
COVER,FR SEAT CUSHION,RH
|
MR609115 |
— | ||
|
75147R
|
75147R
MR762196
COVER,FR SEAT CUSHION,RH
|
MR762196 |
— | ||
|
75284
|
75284
MB557534 WIRE, FR SEAT |
MB557534 |
US $3.26 |
||
|
75284
|
75284
MR177017
WIRE,FR SEAT
|
MR177017 |
— | ||
|
75604B
|
75604B
MB472159 ADJUSTER, FR SEAT SLIDE |
MB472159 |
US $54.76 |
||
|
75604C
|
75604C
MB472158 ADJUSTER, FR SEAT SLIDE |
MB472158 |
US $54.76 |
||
|
75613R
|
75613R
MB769716 COVER, FR SEAT RECLINING ADJUSTER, RH |
MB769716 |
US $19.15 |
||
|
75613R
|
75613R
MR606520
COVER,FR SEAT RECLINING ADJUSTER,RH
|
MR606520 |
— | ||
|
75617R
|
75617R
MB770789 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MB770789 |
US $5.47 |
||
|
75617R
|
75617R
MR797860 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR797860 |
US $5.48 |
