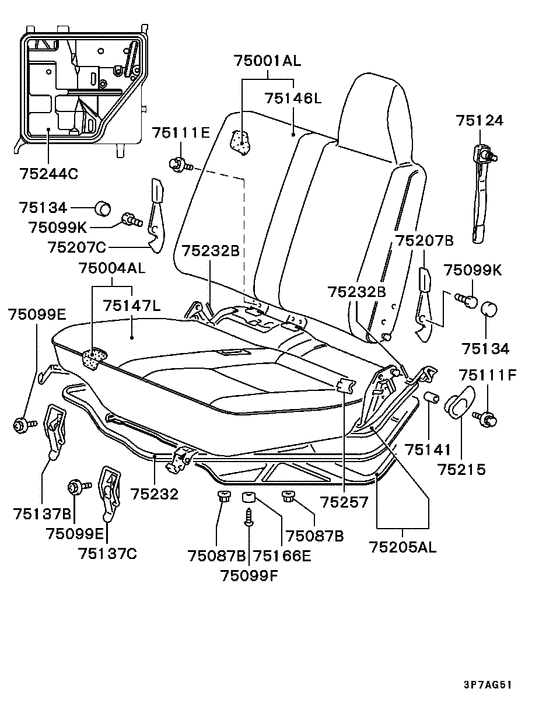

Front seat (LH..RHD) Diagram Mitsubishi L300
- Year
- 1999 - 2000
- Sales region
- EUR
- Note
- CAB&CHASSIS(LONG),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- CAB&CHASSIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MR619319
BACK ASSY,FR SEAT,LH
|
MR619319 |
— | ||
|
75004AL
|
75004AL
MR606525
CUSHION ASSY,FR SEAT,LH
|
MR606525 |
— | ||
|
75087B
|
75087B
MS440133 NUT, FUEL TANKFlange,6 |
MS440133 |
from US $1.11 |
||
|
75099E
|
75099E
MF351030 SCREW, ROCKER COVERWasher assembled,6x12 |
MF351030 |
US $3.97 |
||
|
75099F
|
75099F
MF456469 SCREW, EMERGENCY FLARETapping,5x8 |
MF456469 |
US $2.74 |
||
|
75099K
|
75099K
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
75111E
|
75111E
MF243653 BOLT, ENG OIL COOLER LINEWasher assembled,8x25 |
MF243653 |
from US $1.07 |
||
|
75111F
|
75111F
MS240181 BOLT, PARCEL STRAPWasher assembled,10x25 |
MS240181 |
US $2.52 |
||
|
75124
|
75124
MB769986 BRACKET, FR SEAT SUPPORT |
MB769986 |
US $11.63 |
||
|
75124
|
75124
MR606522
BRACKET,FR SEAT SUPPORT
|
MR606522 |
— | ||
|
75134
|
75134
MR177050
CAP,FR SEAT LUMBAR SUPPORT LEVER
|
MR177050 |
— | ||
|
75137B
|
75137B
MB191223 CLAMP, FR SEAT |
MB191223 |
US $8.73 |
||
|
75137C
|
75137C
MB190672 CLAMP, FR SEAT |
MB190672 |
US $10.66 |
||
|
75141
|
75141
MR177027 COLLAR, FR SEAT |
MR177027 |
US $4 |
||
|
75146L
|
75146L
MR619322
COVER,FR SEAT BACK,LH
|
MR619322 |
— | ||
|
75147L
|
75147L
MR606529
COVER,FR SEAT CUSHION,LH
|
MR606529 |
— | ||
|
75166E
|
75166E
MB165597 DAMPER, FR SEAT CUSHION |
MB165597 |
US $3.69 |
||
|
75205AL
|
75205AL
MR177013 PAN ASSY, FR SEAT CUSHION, LH |
MR177013 |
US $295.57 |
||
|
75207B
|
75207B
MR177031
LEVER,FR SEAT
|
MR177031 |
— | ||
|
75207C
|
75207C
MR177032
LEVER,FR SEAT
|
MR177032 |
— | ||
|
75215
|
75215
MR177051 PROTECTOR, FR SEAT FREE HINGE |
MR177051 |
US $6.81 |
||
|
75232
|
75232
MB557750 SEAL, FR SEAT PAN |
MB557750 |
US $56.09 |
||
|
75232B
|
75232B
MB558266
SEAL,FR SEAT PAN
|
MB558266 |
— | ||
|
75244C
|
75244C
MB472144 SILENCER, FR SEAT PAN |
MB472144 |
US $123.12 |
||
|
75257
|
75257
MB558261 STOPPER, FR SEAT HOOK |
MB558261 |
US $6.51 |
